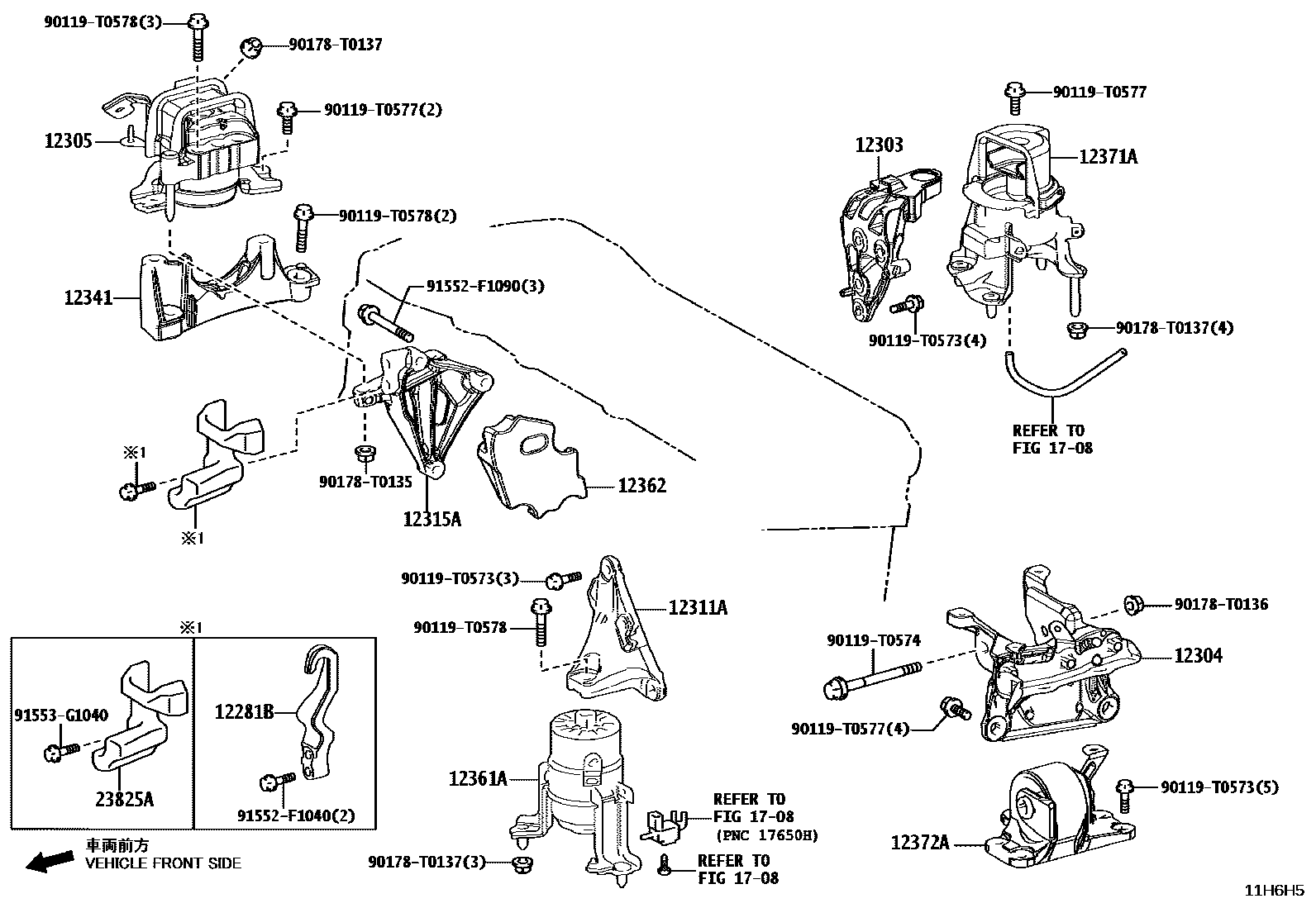

Toyota CAMRY (ASIA) — MOUNTING

0001 1 0002 1 0003 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20..MXVA80¥4,100202410

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-24020iM20..MXVA80¥5,900202410

main12303-25010iA25..AXVA80¥5,900202410

main12303-25020iA25..AXVH80¥5,300202410

12304BRACKET SUB-ASSY, ENGINE MOUNTING, LH

main12304-24010iM20..MXVA80¥3,820202410

main12304-25010iA25..AXVA80¥6,700202410

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24080iM20..MXVA80202410

main12305-25010iA25..AXVA80¥10,000202410

main12305-25020iA25..AXVH80¥10,000202410

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-24010iM20..MXVA80¥3,340202410

main12311-25070iA25..AXVA80¥3,340202410

main12311-F0040iA25..AXVH80202410

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24020iM20..MXVA80¥3,720202410

main12315-25031iA25..AXVA80,AXVH80¥3,720202410

12341SPACER, ENGINE MOUNTING

main12341-F0020iM20..MXVA80202410

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-24030iM20..MXVA80202410

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-25041iA25..AXVA80¥10,000202410

main12361-25050iA25..AXVH80¥8,900202410

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-25011iA25..AXVA80¥920202410

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-24070iM20..MXVA80202410

main12371-25011iA25..AXVA80¥12,000202410

main12371-25020iA25..AXVH80¥11,100202410

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-24060iM20..MXVA80202410

main12372-25011iA25..AXVA80202410

1708

23825AGUARD, FUEL DELIVERY

main23825-24010iM20..MXVA80¥2,900202410

main23825-25010iA25..AXVA80,AXVH80¥3,590202410

90119T0573

main90119-T0573

90119T0574

main90119-T0574

90119T0577

main90119-T0577

90119T0578

main90119-T0578

90178T0135

main90178-T0135

90178T0136

main90178-T0136

90178T0137

main90178-T0137

91552F1040

main91552-F1040¥120

91552F1090

main91552-F1090¥190

91553G1040

main91553-G1040¥290

24 parts on this diagram · 3 diagrams in section
