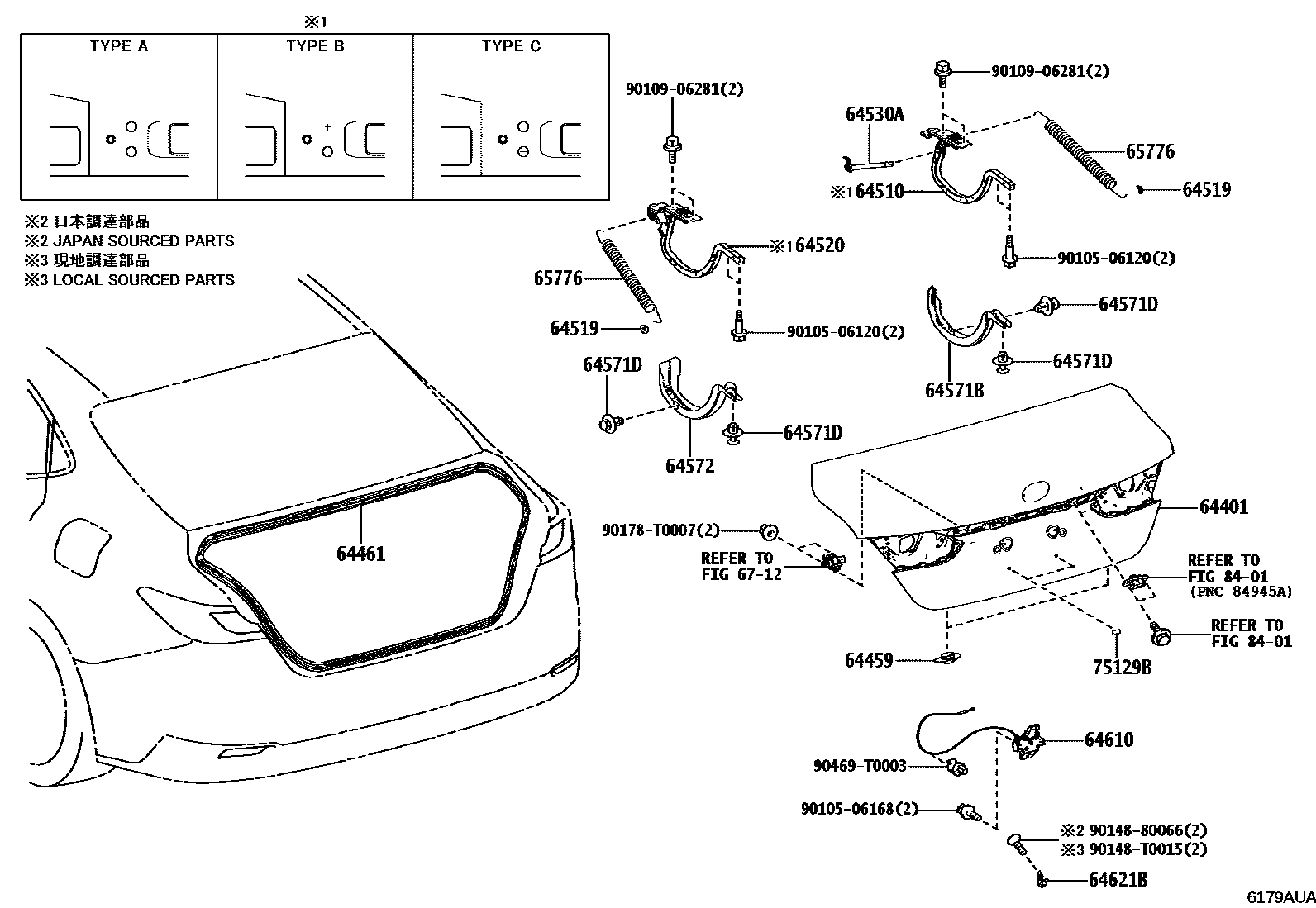

Toyota CAMRY (ASIA) — LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
(L),TYPE B:REF ILL.
(J),TYPE A:REF ILL.
(J),TYPE B:REF ILL.
(J),TYPE C:REF ILL.
64519BUSH, LUGGAGE DOOR HINGE SUPPORT
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
(L),TYPE B:REF ILL.
(J),TYPE A:REF ILL.
(J),TYPE B:REF ILL.
(J),TYPE C:REF ILL.
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
65776SPRING, BACK DOOR STAY
6712
75129BCUSHION, REAR LICENCE PLATE
8401
9010506120
9010506168
9010906281
9014880066
90148T0015
main90148-T0015
90178T0007
90469T0003
main90469-T0003
23 parts on this diagram · 1 diagram in section
