Toyota CAMRY (ASIA) — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8714

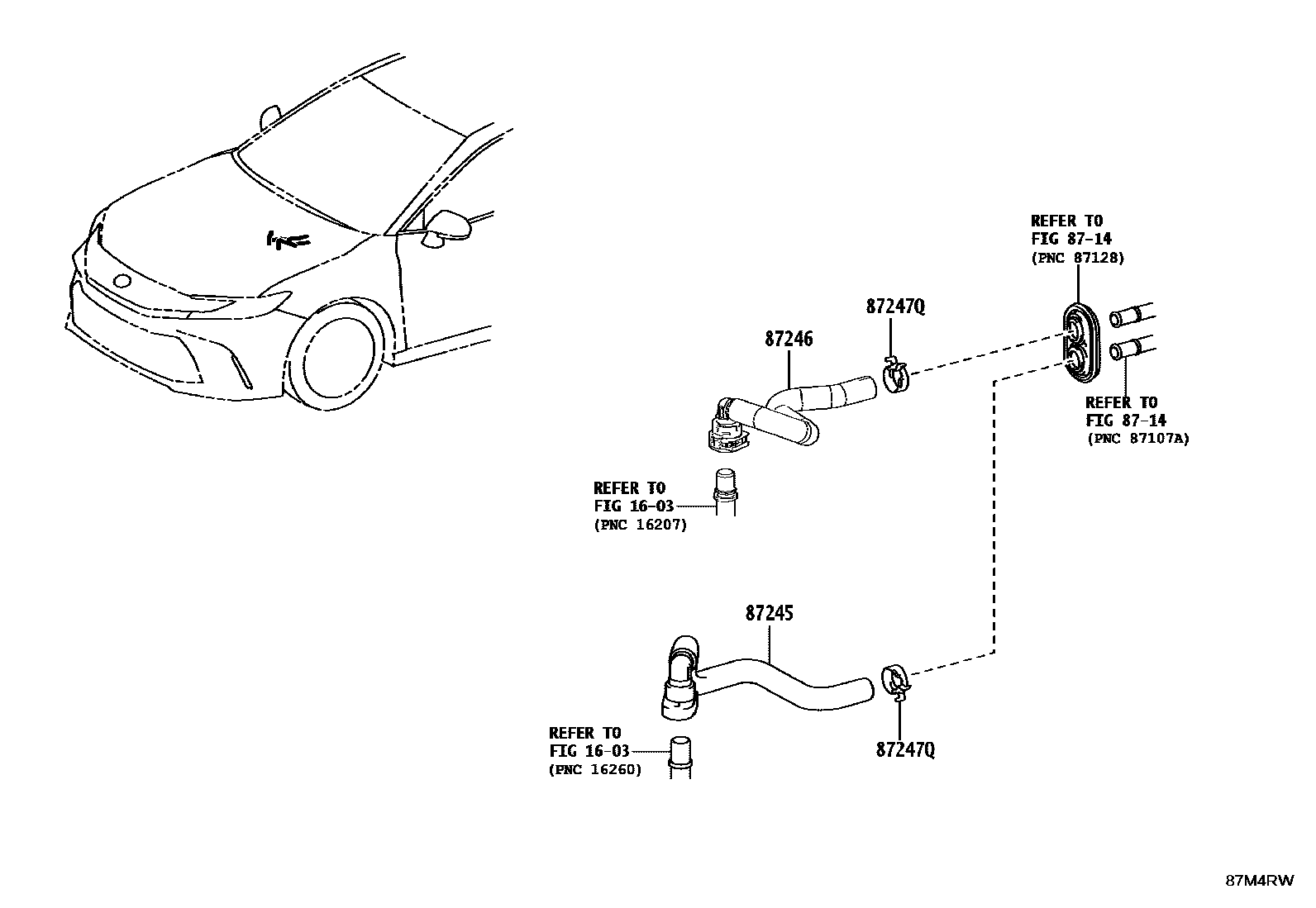

87245HOSE, HEATER WATER, INLET

main87209-33070iAXVA80,AXVH80¥1,000202410

main87209-33140iMXVA80202410

87246HOSE, HEATER WATER, OUTLET

main87209-33080iAXVA80,AXVH80¥1,010202410

main87209-33151iMXVA80202410

87247QCLIP, HOSE

main90466-T0078iAXVA80,AXVH80,MXVA80202410

(L)

main96138-42501iAXVA80,AXVH80,MXVA80¥180202410

(J)

5 parts on this diagram · 2 diagrams in section
