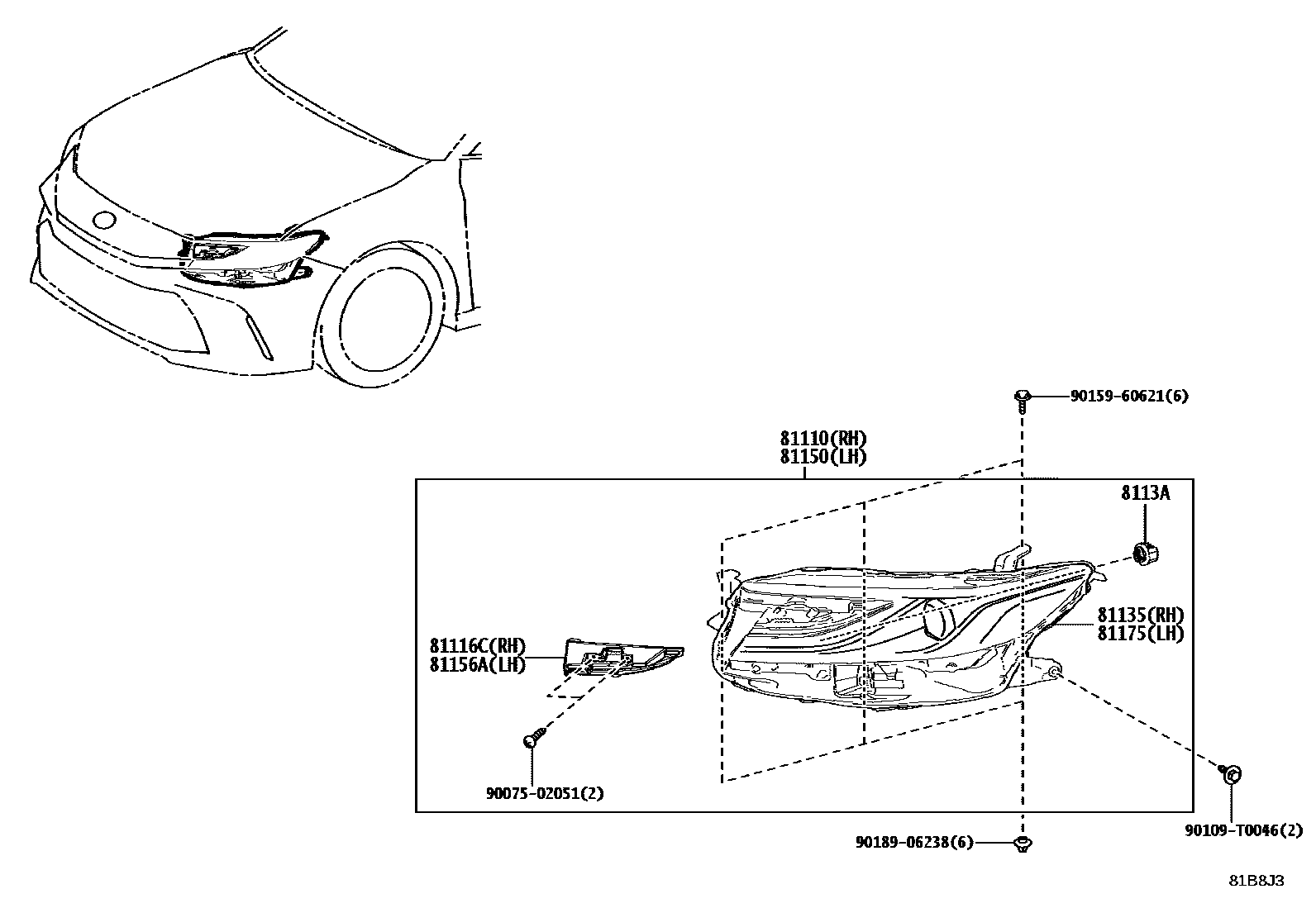

Toyota CAMRY (ASIA) — HEADLAMP

0001 1SINGLE BEAM LED 0002 1LED(TRINOCULAR FULL LED)

81110HEADLAMP ASSY, RH

main81110-06F80iAXVA80..G202410

main81110-06J10iAXVA80..V;AXVH80..RHD202410

main81110-06J20iAXVH80,MXVA80..LHD202410

81116CBRACKET, HEADLAMP, RH

main81116-06F80iAXVA80,AXVH80,MXVA80202410

81135UNIT ASSY, HEADLAMP, RH

main81140-06F80iAXVA80..G202410

main81140-06J10iAXVA80..V;AXVH80..RHD202410

main81140-06J20iAXVH80,MXVA80..LHD202410

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81965-48030iAXVA80..G¥3,210202410

81150HEADLAMP ASSY, LH

main81150-06F80iAXVA80..G202410

main81150-06J10iAXVA80..V;AXVH80..RHD202410

main81150-06J20iAXVH80,MXVA80..LHD202410

81156ABRACKET, HEADLAMP, LH

main81156-06F80iAXVA80,AXVH80,MXVA80202410

81175UNIT ASSY, HEADLAMP, LH

main81070-06F80iAXVA80..G202410

main81070-06J10iAXVA80..V;AXVH80..RHD202410

main81070-06J20iAXVH80,MXVA80..LHD202410

9007502051

main90075-02051¥60

90109T0046

main90109-T0046

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

11 parts on this diagram · 2 diagrams in section
