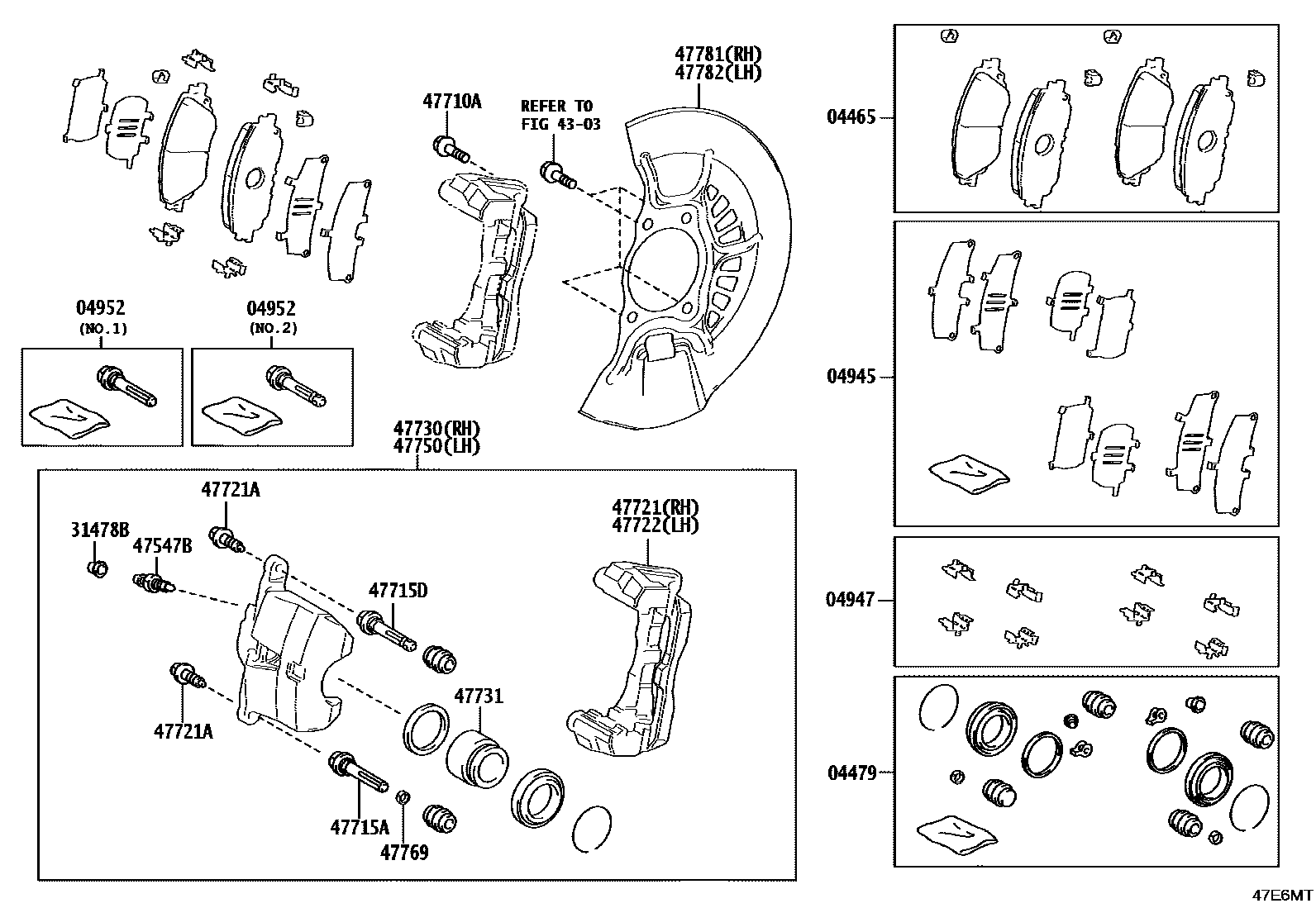

Toyota CAMRY (ASIA) — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-06160iAXVA80,AXVH80,MXVA80¥10,100202410

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06330iAXVA80,AXVH80,MXVA80202410

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-06210iAXVA80,AXVH80,MXVA80202410

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06121iAXVA80,AXVH80,MXVA80202410

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0K020iAXVA80,AXVH80,MXVA80202410

NO.1:REFER ILLUST.

main04952-0K030iAXVA80,AXVH80,MXVA80202410

NO.2:REFER ILLUST.

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iAXVA80,AXVH80,MXVA80202410

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iAXVA80,AXVH80,MXVA80202410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0186iAXVA80,AXVH80,MXVA80202410

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0K220iAXVA80,AXVH80,MXVA80202410

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0K220iAXVA80,AXVH80,MXVA80202410

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06331iAXVA80,AXVH80,MXVA80202410

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iAXVA80,AXVH80,MXVA80¥80202410

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06331iAXVA80,AXVH80,MXVA80202410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06331iAXVA80,AXVH80,MXVA80202410

47731PISTON, FRONT DISC BRAKE

main47731-06330iAXVA80,AXVH80,MXVA80202410

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06331iAXVA80,AXVH80,MXVA80202410

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0K220iAXVA80,AXVH80,MXVA80202410

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06190iAXVA80,AXVH80,MXVA80202410

(L)

main47781-33060iAXVA80,AXVH80,MXVA80¥1,050202410

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06190iAXVA80,AXVH80,MXVA80202410

(L)

main47782-33060iAXVA80,AXVH80,MXVA80¥1,050202410

(J)

20 parts on this diagram · 1 diagram in section
