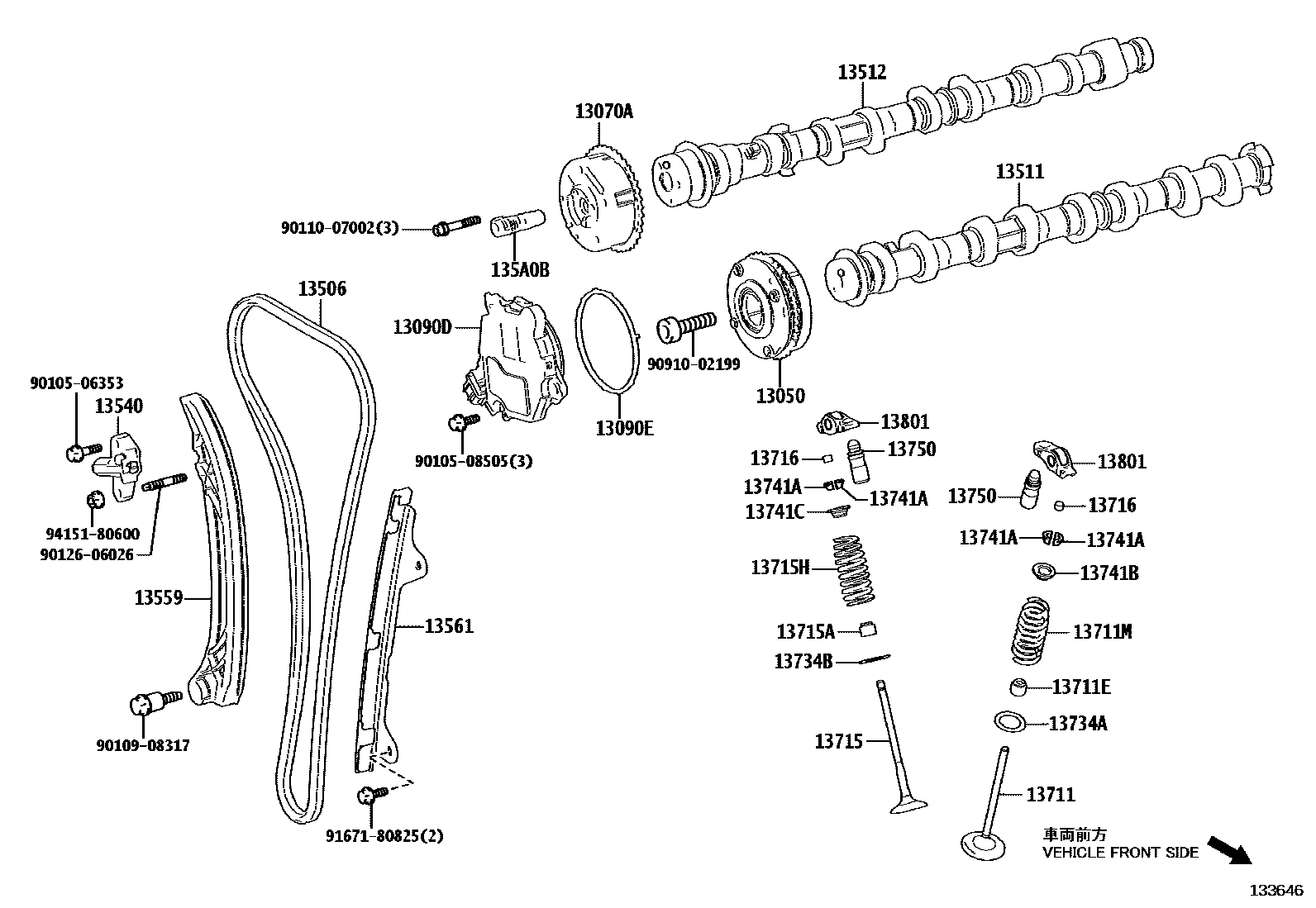

Toyota CAMRY (ASIA) — CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
135A0BVALVE ASSY, CAMSHAFT TIMING
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010506353
9010508505
9010908317
9011007002
9012606026
9091002199
9167180825
9415180600
33 parts on this diagram · 2 diagrams in section
