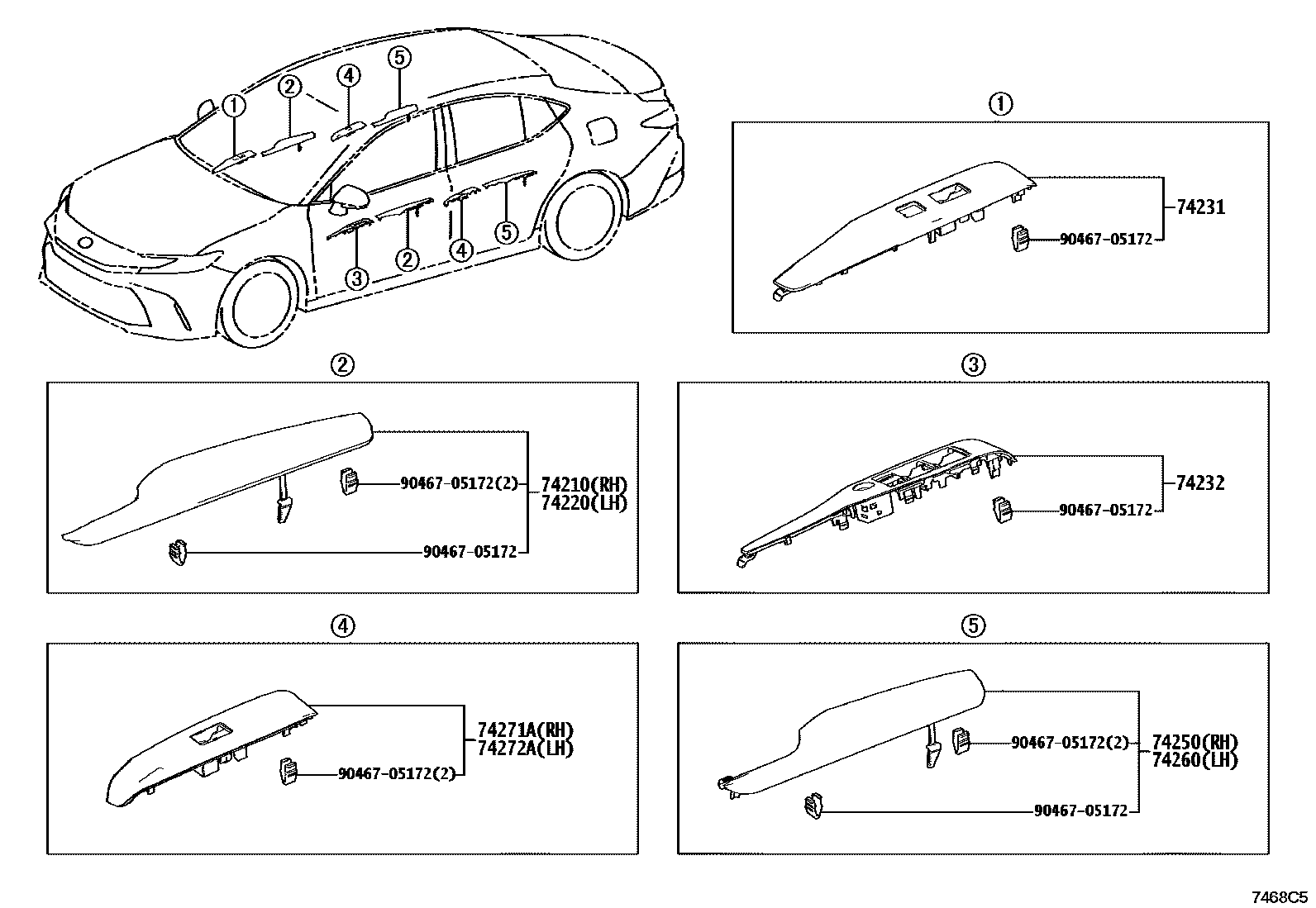

Toyota CAMRY (ASIA) — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-06310-C3iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#

main74210-06310-C4iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-06310-C3iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#

main74220-06310-C4iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-06740iAXVH80,MXVA80..LHD202410

main74231-06750iAXVA80,AXVH80..G,Q202410

main74231-06760iAXVA80,AXVH80..RHD..V202410

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-06760iMXVA80202410

main74232-06770iAXVH80..LHD202410

main74232-06780iAXVA80,AXVH80..RHD202410

74250ARMREST ASSY, REAR RH

main74250-06280-C3iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#

main74250-06280-C4iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM4#

74260ARMREST ASSY, REAR LH

main74260-06280-C3iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#

main74260-06280-C4iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-06881iAXVA80,AXVH80,MXVA80202410

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-06881iAXVA80,AXVH80,MXVA80202410

9046705172

main90467-05172¥60

9 parts on this diagram · 2 diagrams in section
