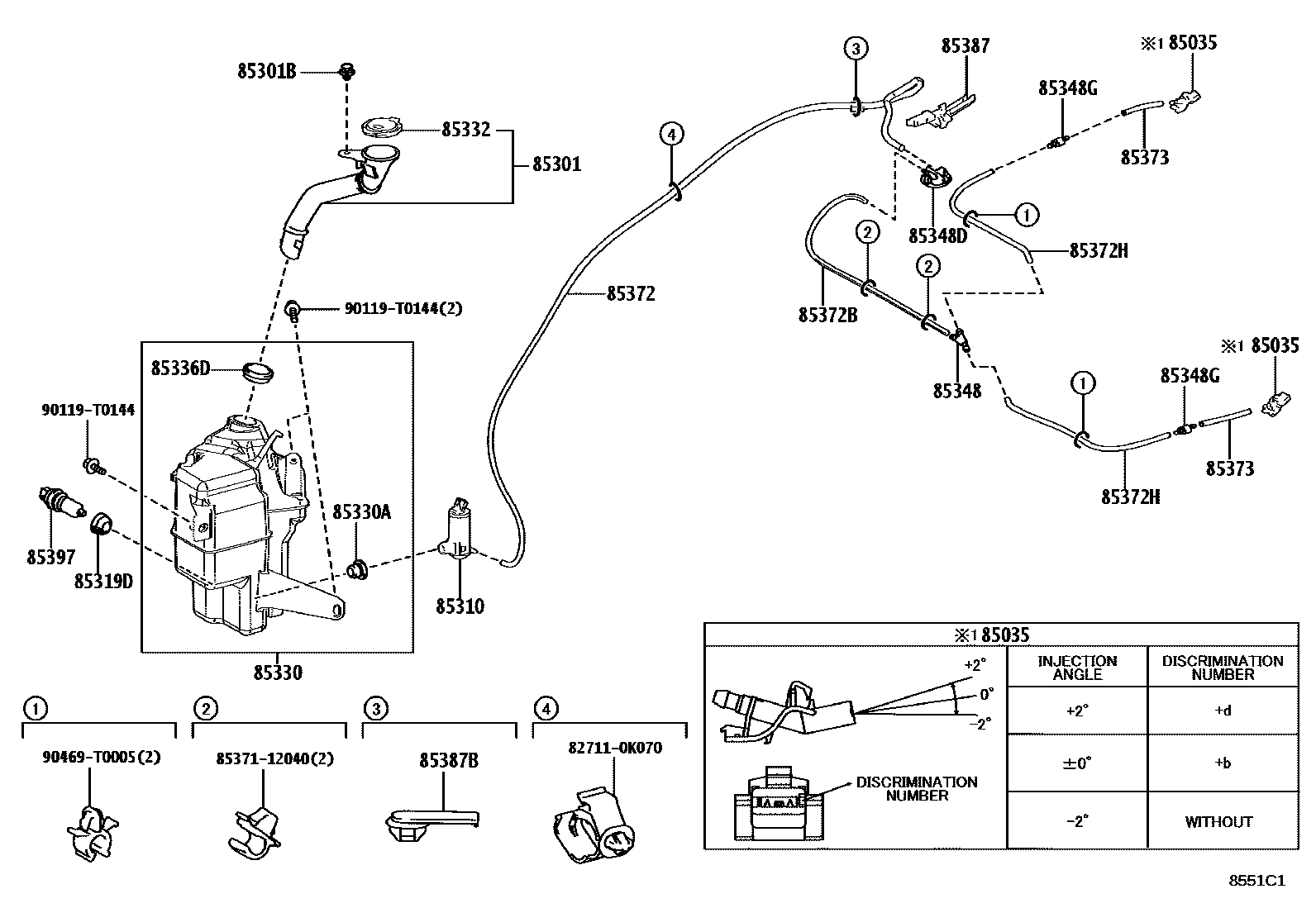

Toyota CAMRY (ASIA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070iAXVA80,AXVH80,MXVA80¥1,140202410

ANGLE 0

main85381-0K080iAXVA80,AXVH80,MXVA80202410

ANGLE -2

main85381-0K090iAXVA80,AXVH80,MXVA80¥1,140202410

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85319-06311iAXVA80,AXVH80,MXVA80202410

85301BCLIP, WASHER

main90467-07214iAXVA80,AXVH80,MXVA80¥70202410

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K011iAXVA80,AXVH80,MXVA80202410

main85330-0K012iAXVA80,AXVH80,MXVA80202410

##

85319DPACKING, FRONT WASHER

main85319-33230iAXVA80,AXVH80,MXVA80202410

85330JAR ASSY, WINDSHIELD WASHER

main85315-06310iAXVA80,AXVH80,MXVA80202410

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAXVA80,AXVH80,MXVA80202410

85332CAP, WINDSHIELD WASHER JAR

main85316-06311iAXVA80,AXVH80,MXVA80202410

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iAXVA80,AXVH80,MXVA80202410

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-33410iAXVA80,AXVH80,MXVA80¥0202410

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-30030iAXVA80,AXVH80,MXVA80202410

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-26020iAXVA80,AXVH80,MXVA80202410

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33123iAXVA80,AXVH80,MXVA80202410

L=4215

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33328iAXVA80,AXVH80,MXVA80202410

L=620

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33327iAXVA80,AXVH80,MXVA80202410

L=370

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33329iAXVA80,AXVH80,MXVA80202410

L=60

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-06040iAXVA80,AXVH80,MXVA80202410

85387BCLAMP, WASHER, NO.3

main82711-52090iAXVA80,AXVH80,MXVA80¥80202410

85397SWITCH ASSY,LEVEL WARNING

main85397-52100iAXVA80,AXVH80,MXVA80¥2,590202410

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040¥100

90119T0144

main90119-T0144¥90

90469T0005

main90469-T0005

23 parts on this diagram · 1 diagram in section
