Toyota CAMRY (ASIA) — SIDE MOULDING

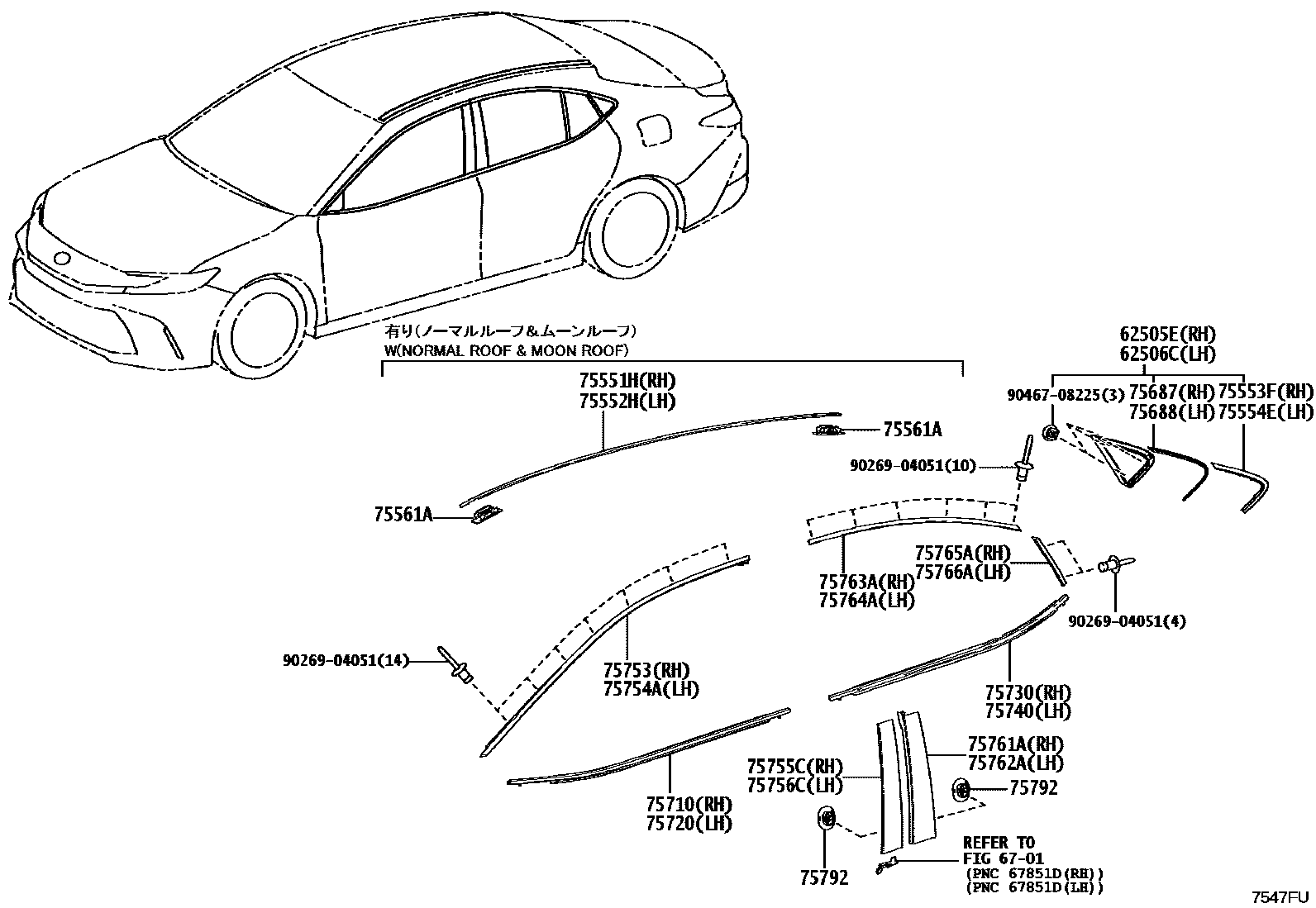

Parts diagram
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
main62505-06030i202410
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
main62506-06030i202410
NO PAINT REQ.
6701
75551HMOULDING, ROOF DRIP SIDE, RH
main75555-06150i202410
MOON ROOF-WITHOUT
75552HMOULDING, ROOF DRIP SIDE, LH
main75556-06170i202410
MOON ROOF-WITHOUT
75553FMOULDING, QUARTER GARNISH, RH
main75553-06070i202410
75554EMOULDING, QUARTER GARNISH, LH
main75554-06070i202410
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-52040i¥100202410
MOON ROOF-WITHOUT
75687PROTECTOR, QUARTER MOULDING, LOWER REAR RH
main75687-06020i202410
75688PROTECTOR, QUARTER MOULDING, LOWER REAR LH
main75688-06020i202410
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-06240i202410
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-06240i202410
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-06310i202410
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-06310i202410
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-06171i202410
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-06171i202410
NO PAINT REQ.
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-06220i202410
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-06220i202410
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-06220i202410
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-06220i202410
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
main75763-06280i202410
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
main75764-06280i202410
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
main75765-06170i202410
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
main75766-06170i202410
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-0D020i202410
9026904051
main90269-04051¥40
9046708225
main90467-08225¥60

27 parts on this diagram · 2 diagrams in section
