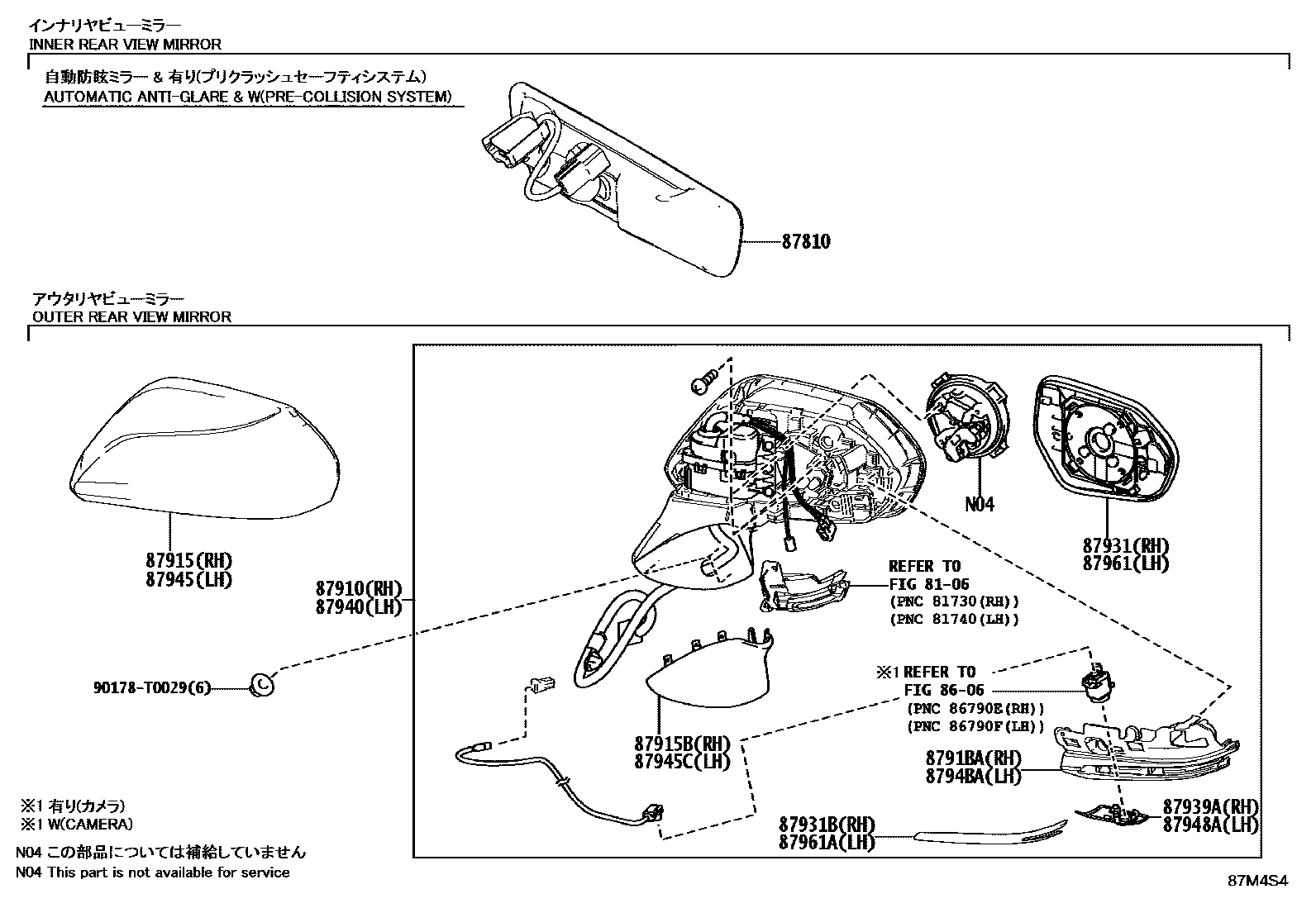

Toyota CAMRY (ASIA) — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
PLATED
PLATED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87915BCOVER, OUTER MIRROR, LOWER RH
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87931BFRAME, OUTER MIRROR, RH
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
PLATED
PLATED
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87945CCOVER, OUTER MIRROR, LOWER LH
87948ACOVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
87961AFRAME, OUTER MIRROR, LH
90178T0029
18 parts on this diagram · 1 diagram in section
