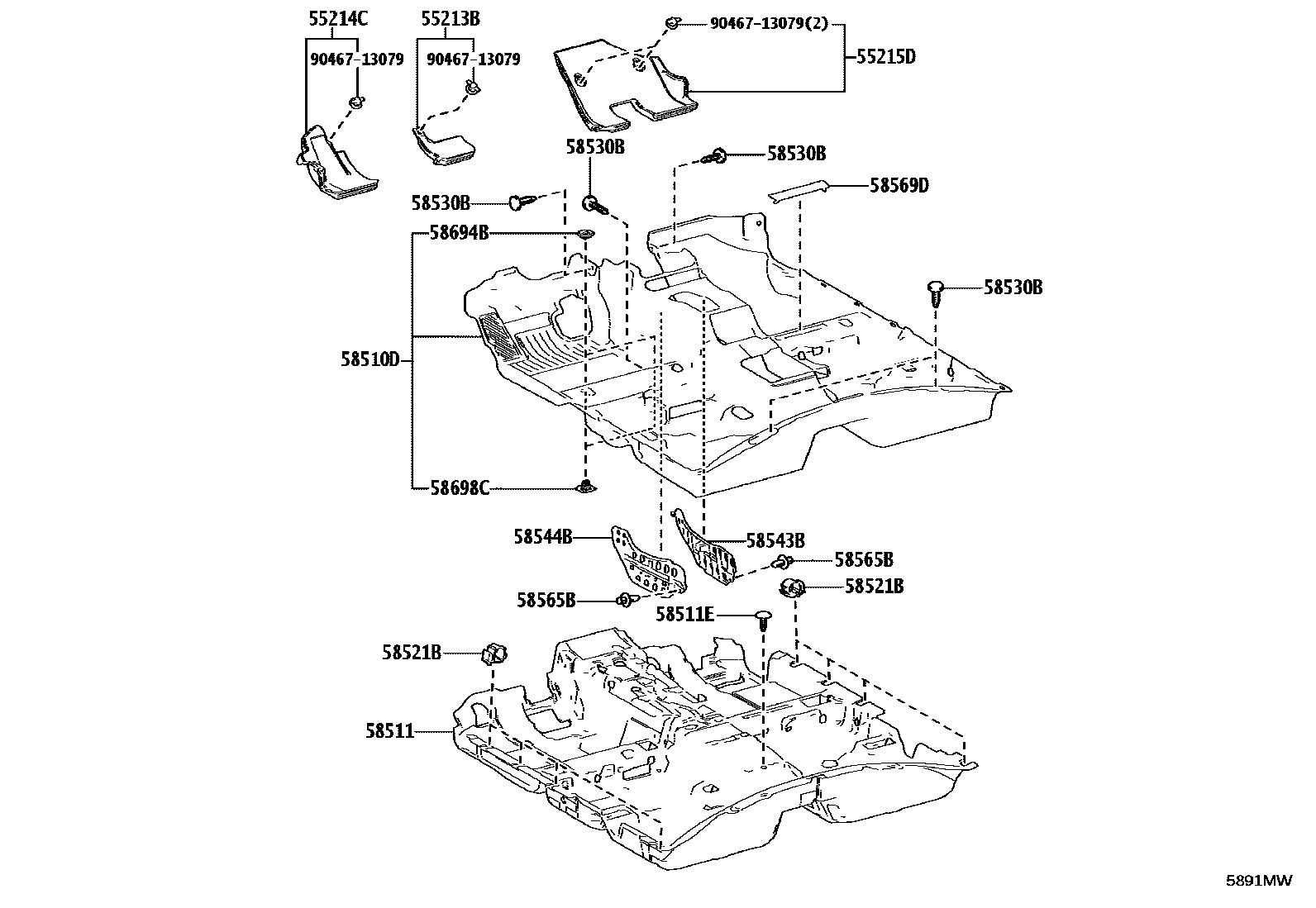

Toyota CAMRY (ASIA) — MAT & CARPET

0001 1 0002 1 0003 1 0004 1 0005 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-06270iAXVH80,MXVA80..LHD202410

main55213-06280iAXVA80,AXVH80..RHD202410

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-06180iAXVA80,AXVH80..RHD202410

main55214-06190iAXVH80,MXVA80..LHD202410

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-06080iAXVH80,MXVA80..LHD202410

main55215-06110iAXVA80,AXVH80..RHD202410

58510DCARPET ASSY, FLOOR, FRONT

main58510-06A60-C0iAXVH80..RHD202410

BLACK,TRIM0#,2#,4#

main58510-06A70-C0iMXVA80202410

BLACK,TRIM0#,2#,4#

main58510-06A80-C0iAXVH80..LHD202410

BLACK,TRIM0#,2#,4#

main58510-06A90-C0iAXVA80202410

BLACK,TRIM0#,2#,4#

main58510-06A90-C0iAXVA80202410

BRUNEI SPEC,BLACK,TRIM0#,2#,4#

main58510-06A90-C0iAXVA80202410

MALAYSIA SPEC,BLACK,TRIM0#,2#,4#

58511MAT, FLOOR, FRONT

main58511-06200iAXVA80,MXVA80202410

main58511-06210iAXVH80202410

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iAXVA80,AXVH80,MXVA80202410

BLACK

sub90467-07042¥110

sub90467-06175¥220

58521BHOOK, FLOOR CARPET

main58521-06170iAXVA80,AXVH80,MXVA80202410

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07161-C1iAXVH80..RHD202410

BLACK

sub90467-07161¥110

58543BBRACKET, FLOOR CARPET, RH

main58543-06200iAXVH80,MXVA80..LHD202410

main58543-06210iAXVA80,AXVH80..RHD202410

58544BBRACKET, FLOOR CARPET, LH

main58544-06210iAXVH80,MXVA80..LHD202410

main58544-06220iAXVA80,AXVH80..RHD202410

58565BCLIP

main90467-T0027-C0iAXVA80,AXVH80,MXVA80202410

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-06040-C0iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM0#,2#,4#

58694BPLATE, MAT SET, UPPER

main58694-0K010iAXVA80,AXVH80,MXVA80202410

BRUNEI SPEC

main58694-0K010iAXVA80,AXVH80,MXVA80202410

MALAYSIA SPEC

58698CPLATE, MAT SET, LOWER

main58698-0K070iAXVA80,AXVH80,MXVA80202410

BRUNEI SPEC

main58698-0K070iAXVA80,AXVH80,MXVA80202410

MALAYSIA SPEC

9046713079

main90467-13079¥120

15 parts on this diagram · 5 diagrams in section
