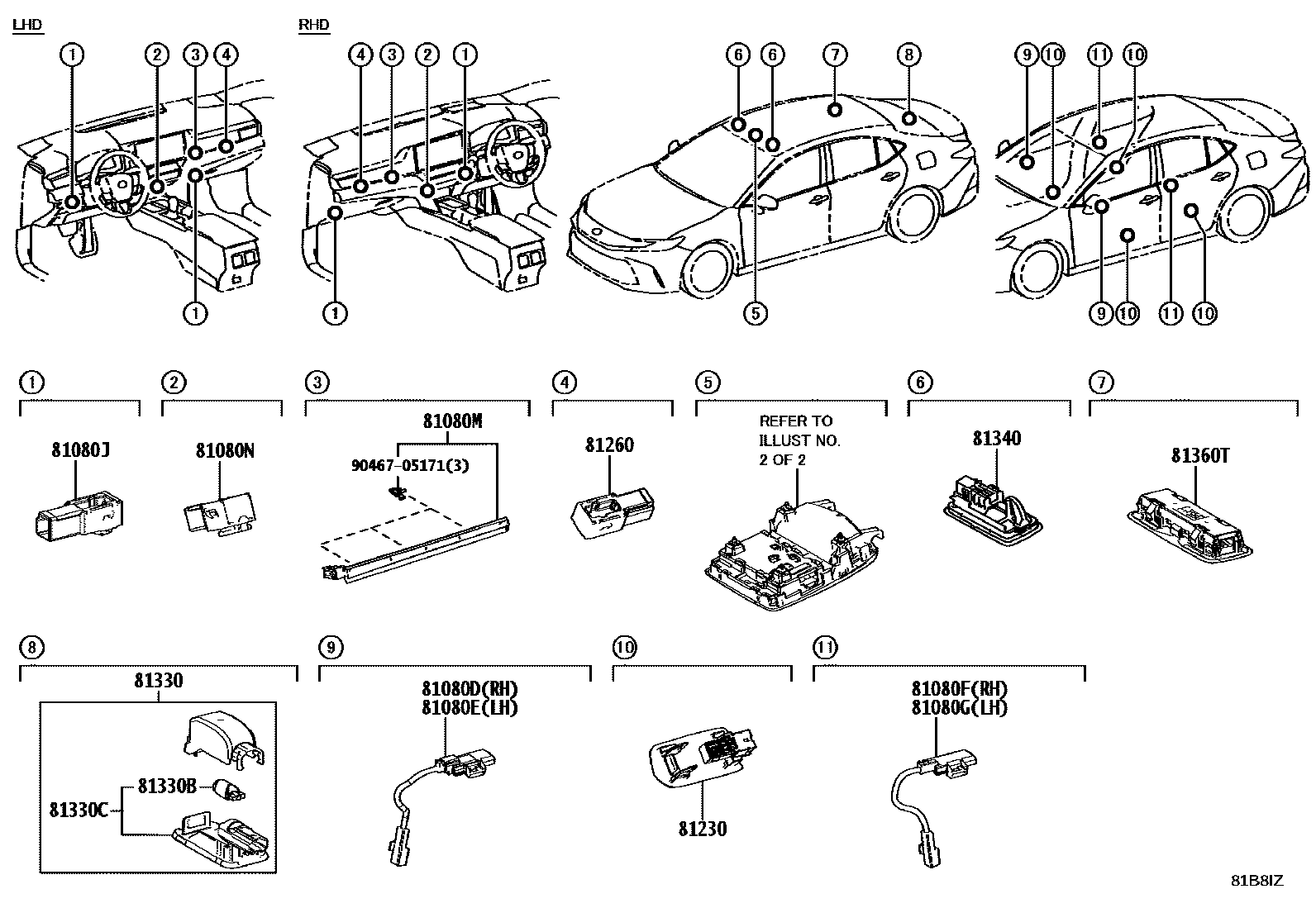

Toyota CAMRY (ASIA) — INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iAXVA80,AXVH80,MXVA80¥1,420202410

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iAXVA80,AXVH80,MXVA80¥1,420202410

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iAXVA80,AXVH80,MXVA80¥1,420202410

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iAXVA80,AXVH80,MXVA80¥1,420202410

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iAXVA80,AXVH80,MXVA80¥920202410

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main813A0-33030iAXVH80,MXVA80..LHD202410

main813A0-33040iAXVA80,AXVH80..RHD202410

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42110iAXVA80,AXVH80,MXVA80¥920202410

81230LAMP ASSY, COURTESY

main81230-33020iAXVA80,AXVH80,MXVA80202410

81260LAMP ASSY, GLOVE BOX

main81080-33290iAXVA80,AXVH80,MXVA80¥920202410

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iAXVA80,AXVH80,MXVA80¥1,250202410

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXVA80,AXVH80,MXVA80¥110202410

12V 5W

81330CLAMP ASSY, LUGGAGE COMPARTMENT

main81330-30100iAXVA80,AXVH80,MXVA80¥990202410

81340LAMP ASSY, VANITY

main81340-33170iAXVA80,AXVH80,MXVA80¥990202410

81360TLAMP ASSY, SPOT

main81360-06180-C0iAXVA80,AXVH80,MXVA80202410

BLACK,TRIM2#,4#

9046705171

main90467-05171¥60

15 parts on this diagram · 2 diagrams in section
