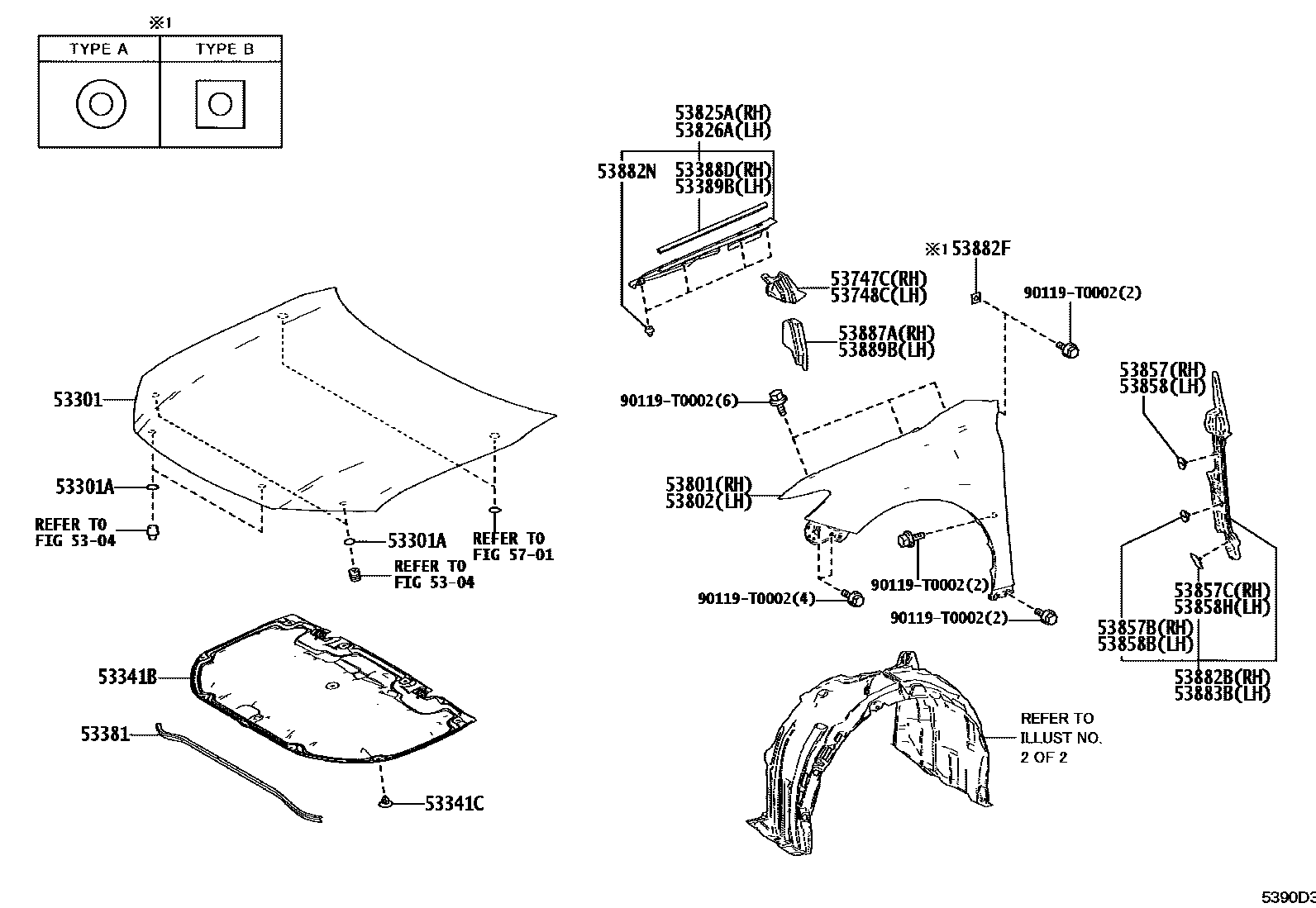

Toyota CAMRY (ASIA) — HOOD & FRONT FENDER
5304
53301HOOD SUB-ASSY
53301APLUG, HOLE(FOR HOOD)
(J)
(L)
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53381SEAL, HOOD TO RADIATOR SUPPORT
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53747CPLATE, AIR SEALED, RH
53748CPLATE, AIR SEALED, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53882NCLIP(FOR FRONT FENDER SEAL)
53883BSEAL, FRONT FENDER, LH
53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
5701
90119T0002
main90119-T0002
28 parts on this diagram · 2 diagrams in section
