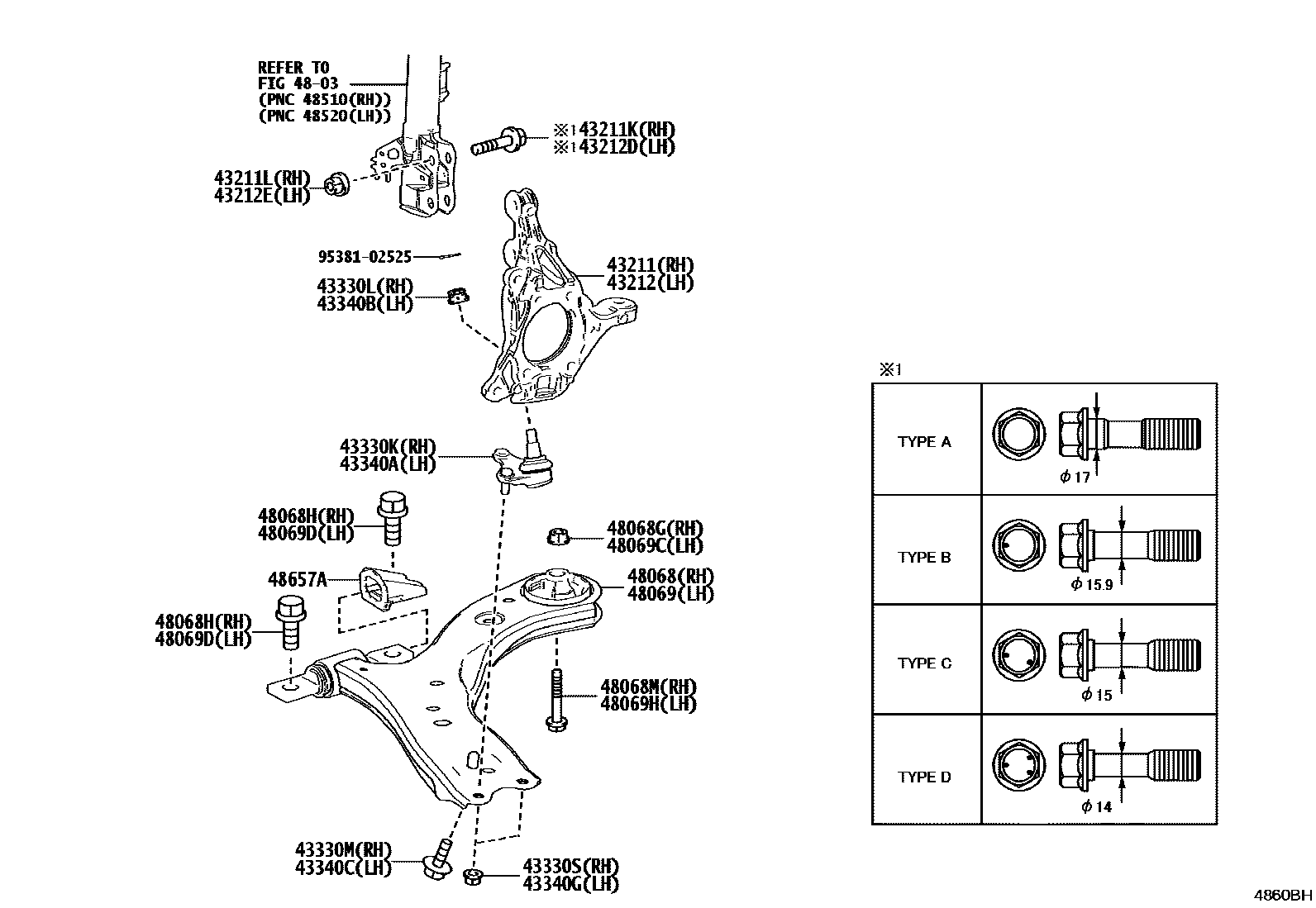

Toyota CAMRY (ASIA) — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17,TYPE A:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
OD=17
OD=17,TYPE A:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
(J)
(L)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
(J)
(L)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
(J)
(L)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
(J)
(L)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
(J)
(L)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
(J)
(L)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
(L)
(J)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
(J)
(L)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
(J)
(L)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
(L)
(J)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
(J)
(L)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
(J)
(L)
48657ASTOPPER, FRONT LOWER ARM BUSH
(L)
(J)
9538102525
25 parts on this diagram · 1 diagram in section
