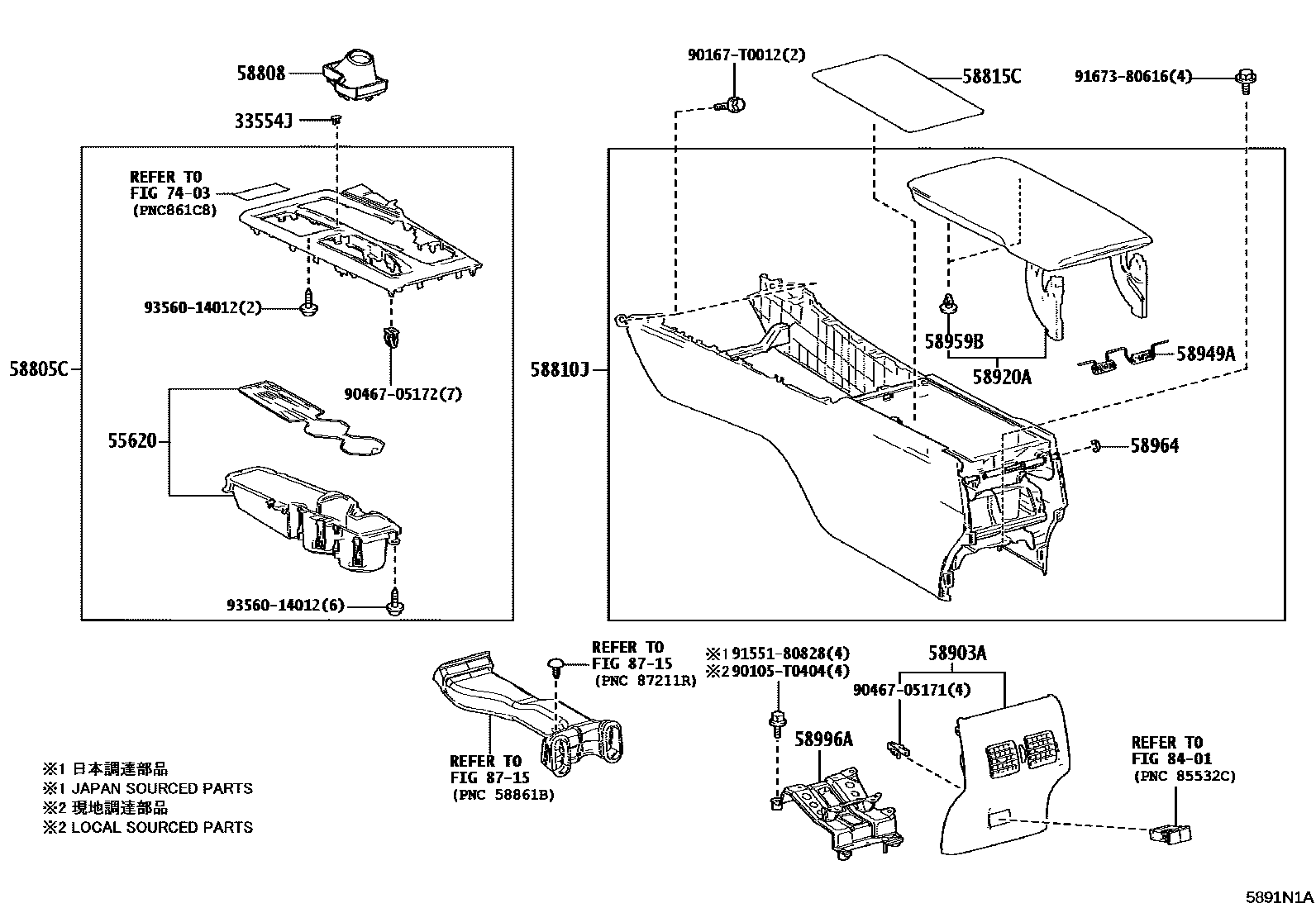

Toyota CAMRY (ASIA) — CONSOLE BOX & BRACKET
33554JCOVER, SHIFT LOCK RELEASE BUTTON
BRUNEI SPEC
MALAYSIA SPEC
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
58810JBOX ASSY, CONSOLE
BLACK/DARK GRAY,TRIM2#
BLACK/OCHRE,TRIM4#
BLACK/DARK GRAY,TRIM2#
BLACK/OCHRE,TRIM4#
58815CCARPET, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,2#,4#
58920AARMREST ASSY, REAR CONSOLE
BLACK/ DK GRAY,TRIM2#
BLACK,TRIM4#
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
(L)
(J)
7403
8401
8715
90105T0404
main90105-T0404
90167T0012
main90167-T0012
9046705171
9046705172
9155180828
9167380616
9356014012
22 parts on this diagram · 2 diagrams in section
