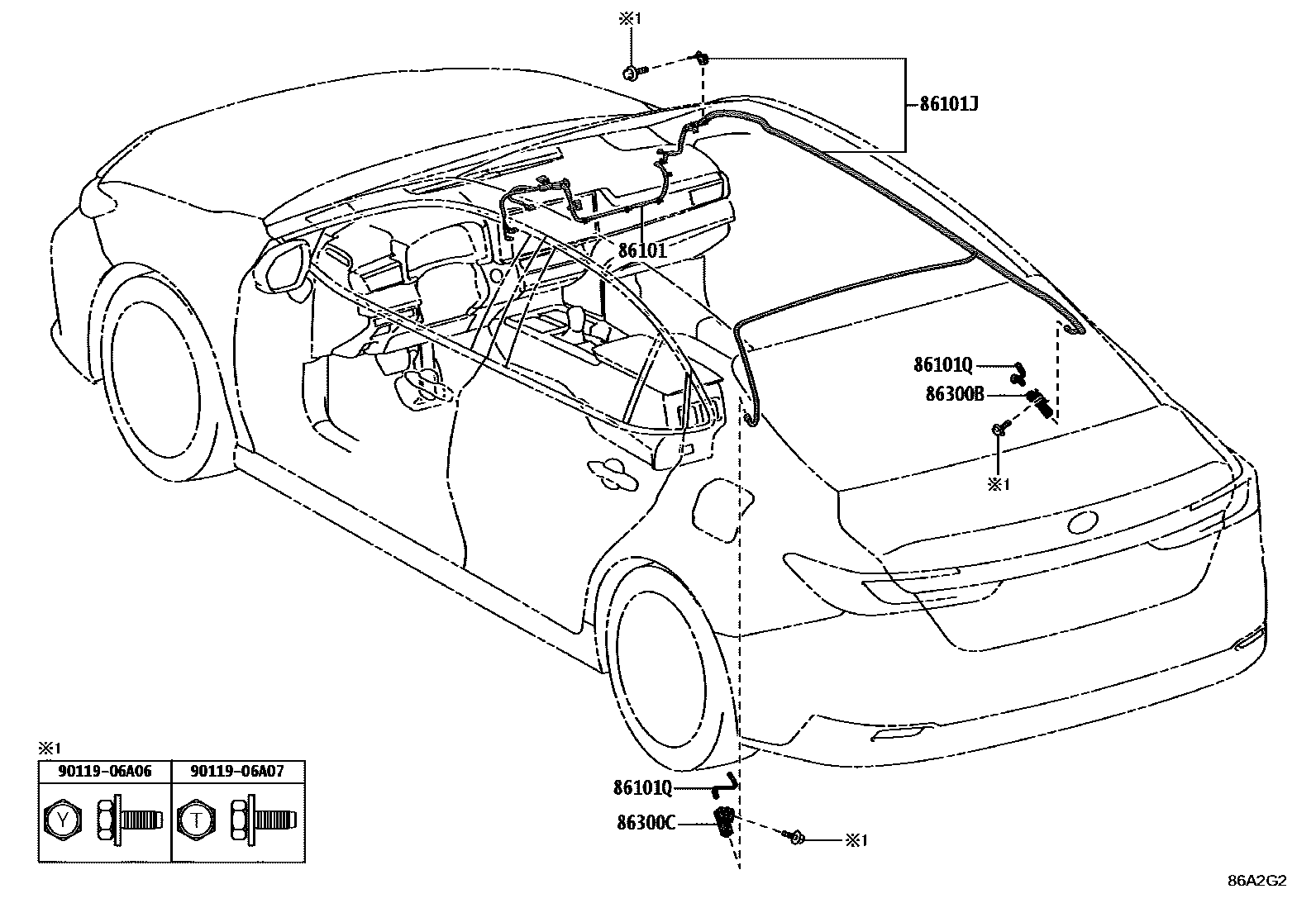

Toyota CAMRY (ASIA) — ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-06P40iAXVA80..G202410

main86101-06P50iAXVA80..V;AXVH80..RHD..THAI202410

main86101-06P60iAXVH80,MXVA80..LHD202410

main86101-06P70iAXVH80..IND202412

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-06P00iAXVA80..G202410

main86101-06P10iAXVH80..G202410

MOON ROOF-WITHOUT

main86101-06P20iMXVA80;AXVH80..IND202410

main86101-06P30iAXVA80,AXVH80..(Q,V)..THAI202410

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-06N90iAXVA80..G202410

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-06270iAXVA80,AXVH80,MXVA80202410

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-06280iAXVH80;AXVA80,MXVA80..Q,V202410

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

7 parts on this diagram · 2 diagrams in section
