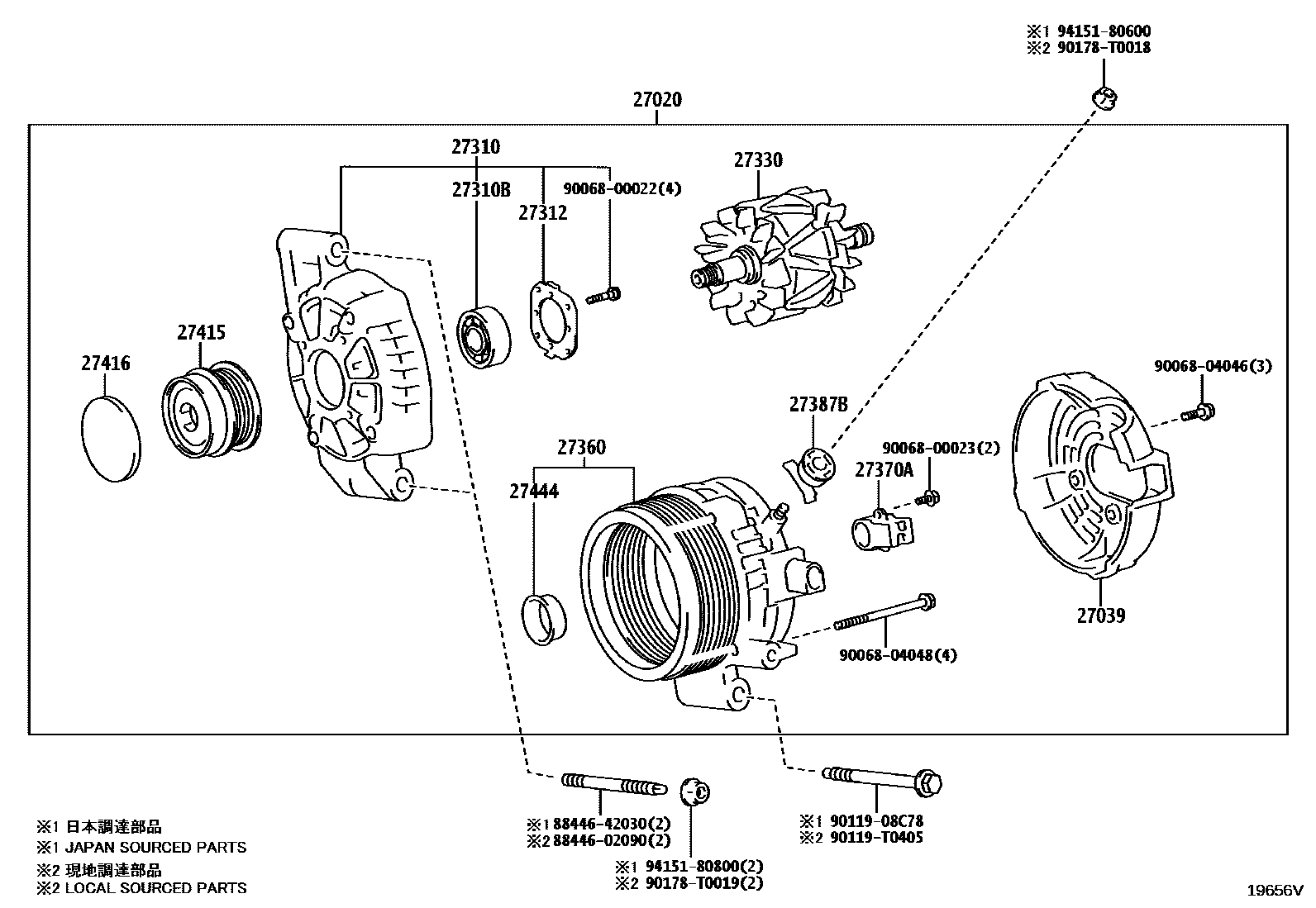

Toyota CAMRY (ASIA) — ALTERNATOR

0001 112V 100A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-F0020iA25..AXVA80202410

12V 100A

main27060-F2170iM20..MXVA80202410

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-0V220iA25,M20..AXVA80,MXVA80202410

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F0020iA25..AXVA80202410

main27310-F2130iM20..MXVA80202410

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033iA25,M20..AXVA80,MXVA80202410

27312PLATE, RETAINER

main27312-0C020iA25,M20..AXVA80,MXVA80202410

27330ROTOR ASSY, ALTERNATOR

main27330-0V220iA25,M20..AXVA80,MXVA80202410

27360COIL ASSY, ALTERNATOR

main27360-F0020iA25,M20..AXVA80,MXVA80202410

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040iA25,M20..AXVA80,MXVA80202410

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020iA25,M20..AXVA80,MXVA80202410

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F0010iA25..AXVA80202410

27416CAP, ALTERNATOR PULLEY

main27416-0W050iA25..AXVA80¥340202410

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180iA25,M20..AXVA80,MXVA80202410

8844602090BOLT, IDLE PULLEY

main88446-02090

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

9006800022

main90068-00022

9006800023

main90068-00023

9006804046

main90068-04046

9006804048

main90068-04048

9011908C78

main90119-08C78¥0

90119T0405

main90119-T0405

90178T0018

main90178-T0018¥70

90178T0019

main90178-T0019

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

24 parts on this diagram · 2 diagrams in section
