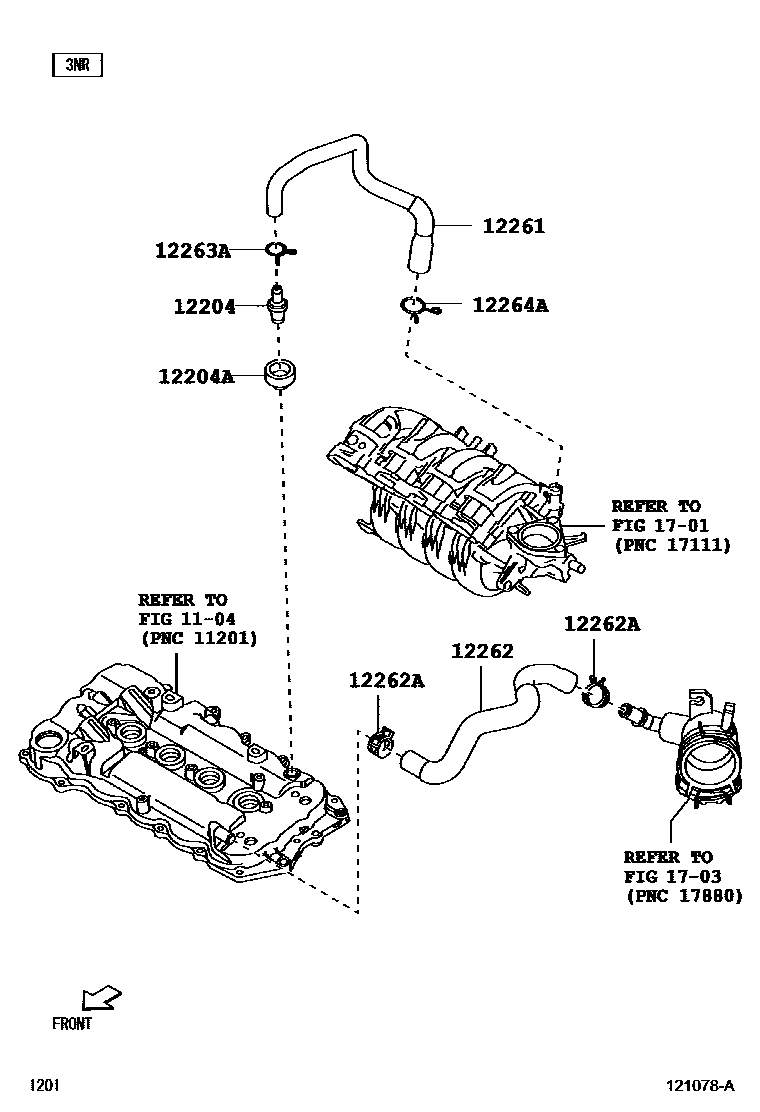

Toyota CALYA — VENTILATION HOSE

1104

12204VALVE SUB-ASSY, VENTILATION

main12204-0Y020i3NRVE..B401201909-202207

main12204-0Y020i3NRVE..B401..G;3NRVE..B401..5F..E202207

main12204-0Y020i3NRVE..B401201606-201909

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-T0013i3NRVE..B401201909-202207

main90480-T0013i3NRVE..B401..G;3NRVE..B401..5F..E202207

main90480-T0013i3NRVE..B401201606-201909

12261HOSE, VENTILATION

main12261-BZ220i3NRVE..B401201909-202207

main12261-BZ220i3NRVE..B401..G;3NRVE..B401..5F..E202207

main12261-BZ220i3NRVE..B401201606-201909

12262HOSE, VENTILATION, NO.2

main12262-BZ120i3NRVE..B401201909-202207

main12262-BZ120i3NRVE..B401..G;3NRVE..B401..5F..E202207

main12262-BZ120i3NRVE..B401201606-201909

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-T0020i3NRVE..B401201909-202207

main90466-T0020i3NRVE..B401..G;3NRVE..B401..5F..E202207

main90466-T0020i3NRVE..B401201606-201909

12263ACLIP(FOR VENTILATION HOSE)

main90466-T0061i3NRVE..B401201909-202207

main90466-T0061i3NRVE..B401..G;3NRVE..B401..5F..E202207

main90466-T0061i3NRVE..B401201606-201909

12264ACLIP(FOR VENTILATION HOSE)

main90466-T0062i3NRVE..B401201909-202207

main90466-T0062i3NRVE..B401..G;3NRVE..B401..5F..E202207

main90466-T0062i3NRVE..B401201606-201909

1701

1703

10 parts on this diagram · 1 diagram in section
