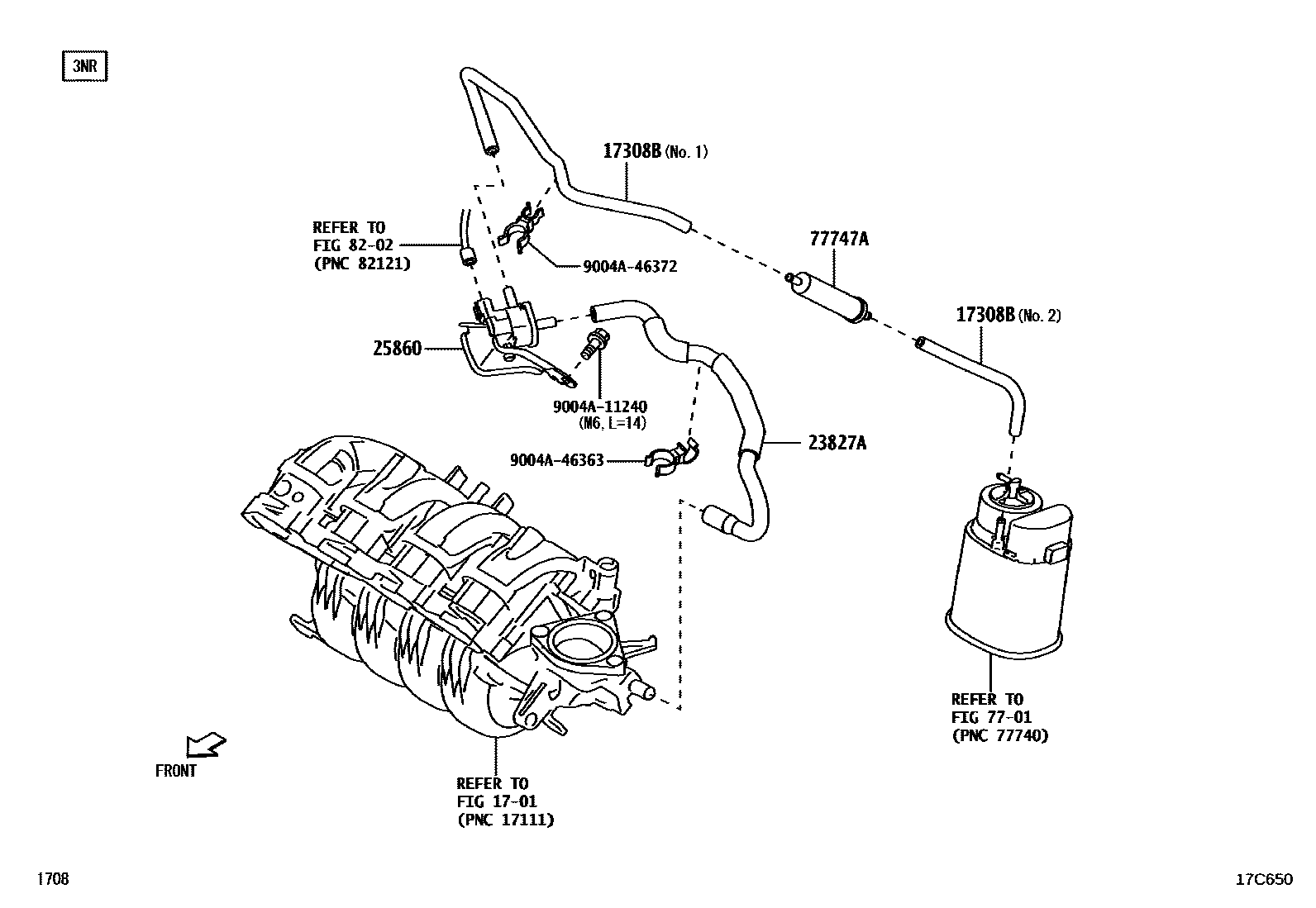

Toyota CALYA — VACUUM PIPING

1701

17308BHOSE SUB-ASSY, VACUUM

main77754-BZ240i3NRVE..B401201909-202207

NO.2

main77754-BZ240i3NRVE..B401..G;3NRVE..B401..5F..E202207

NO.2

main77754-BZ240i3NRVE..B401201606-201909

NO.2

main77754-BZ260i3NRVE..B401201909-202207

NO.1

main77754-BZ260i3NRVE..B401..G;3NRVE..B401..5F..E202207

NO.1

main77754-BZ260i3NRVE..B401201606-201909

NO.1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-BZ080i3NRVE..B401..G;3NRVE..B401..5F..E202207

main23827-BZ080i3NRVE..B401201909-202207

main23827-BZ080i3NRVE..B401201606-201909

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-BZ020i3NRVE..B401201909-202207

main25860-BZ020i3NRVE..B401..G;3NRVE..B401..5F..E202207

main25860-BZ020i3NRVE..B401201606-201909

7701

77747ATUBE, CHARCOAL CANISTER, NO.1

main77747-BZ050iB401201909-202207

main77747-BZ050iB401..G;B401..5F..E202207

main77747-BZ050iB401201606-201909

8202

9004A11240

main9004A-11240

9004A46363

main9004A-46363

9004A46372

main9004A-46372

10 parts on this diagram · 1 diagram in section
