Toyota CALYA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0006 1ENGINE ROOM 0008 1INSTRUMENT PANEL 0011 1SWITCH 0012 1SWITCH 0014 1BODY 0017 1STEERING

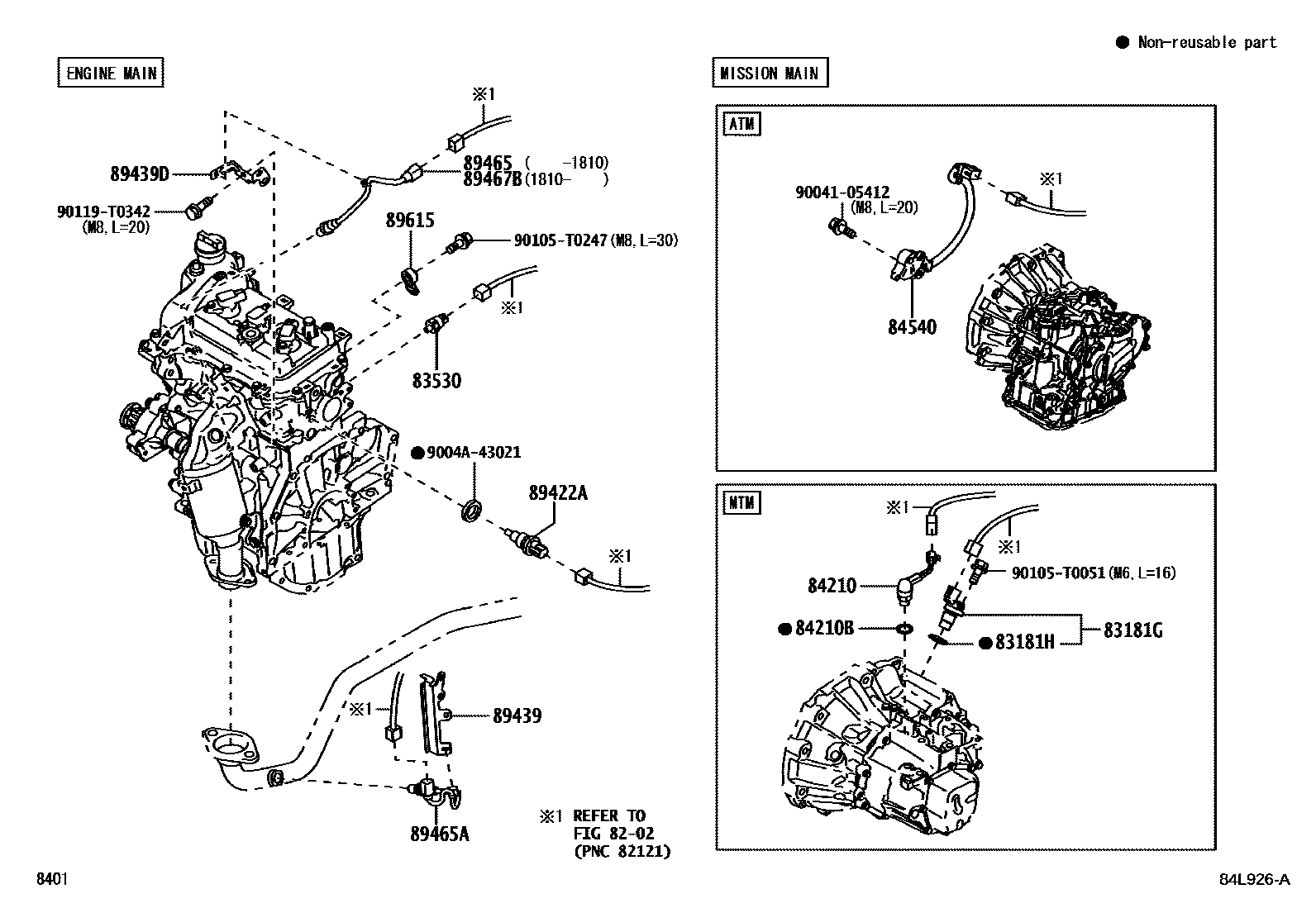

8202

83181GSENSOR, SPEEDOMETER

main83181-B6010iB401..5F..E¥10,200201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

main83181-B6010iB401..5F..E¥10,200202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

main83181-B6010iB401..5F¥10,200201606-201909

ABS (ANTI-LOCK BRK SYSTM)-ABS

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90043-01278iB401..5F..E¥190202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

main90043-01278iB401..5F..E¥190201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

main90043-01278iB401..5F¥190201606-201909

ABS (ANTI-LOCK BRK SYSTM)-ABS

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-52050iB401¥1,980201909-202207

main83530-52050iB401..G;B401..5F..E¥1,980202207

main83530-52050iB401¥1,980201609-201909

main83530-B0010iB401201606-201608

sub83530-52050¥1,980

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ070iB401..5F201606-201909

main84210-BZ070iB401..5F201909-202207

main84210-BZ070iB401..5F202207

84210BGASKET, BACK-UP LAMP SWITCH

main9004A-43006iB401..5F¥110201909-202207

main9004A-43006iB401..5F¥110202207

main9004A-43006iB401..5F¥110201606-201909

84540SWITCH ASSY, NEUTRAL START

main84540-B1030iB401..4FC¥13,600201909-202207

main84540-B1030iB401..4FC..G¥13,600202207

main84540-B1030iB401..4FC¥13,600201606-201909

89422ASENSOR, WATER TEMPERATURE

main89422-BZ030iB401¥2,410201909-202207

main89422-BZ030iB401¥2,410202207

main89422-BZ030iB401¥2,410201606-201909

89439BRACKET, SENSOR

main89439-BZ170iB401201909-202207

main89439-BZ170iB401..G;B401..5F..E202207

main89439-BZ170iB401201810-201909

89439DBRACKET, SENSOR, NO.1

main89439-BZ180iB401201909-202207

main89439-BZ180iB401..G;B401..5F..E202207

main89439-BZ180iB401201606-201909

89465SENSOR, OXYGEN

main89465-BZ470iB401201606-201810

89465ASENSOR, OXYGEN NO.2

main89465-BZ450iB401..G;B401..5F..E202207

main89465-BZ450iB401201909-202207

main89465-BZ450iB401201810-201909

89467BSENSOR, AIR FUEL RATIO

main89467-BZ020iB401201909-202207

main89467-BZ020iB401..G;B401..5F..E202207

main89467-BZ020iB401201810-201909

89615SENSOR, KNOCK CONTROL

main89615-BZ040iB401201909-202207

main89615-BZ040iB401..G;B401..5F..E202207

main89615-BZ040iB401201606-201909

9004105412

main90041-05412¥150

9004A43021

main9004A-43021¥200

90105T0051

main90105-T0051

90105T0247

main90105-T0247

90119T0342

main90119-T0342

19 parts on this diagram · 8 diagrams in section
