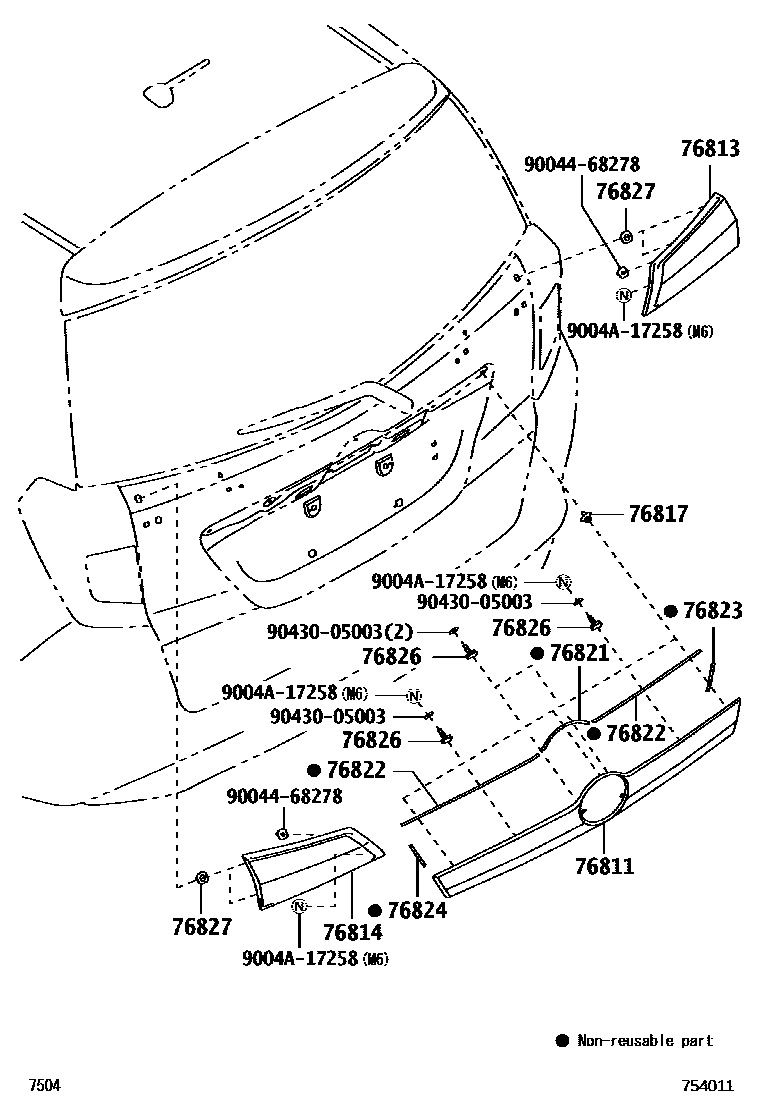

Toyota CALYA — REAR MOULDING

0001 1 0002 1 0004 1 0005 1

76811GARNISH, BACK DOOR, OUTSIDE

main76811-BZ420iB401..E201606-201909

main76811-BZ560iB401..E201909-202207

76813GARNISH, BACK DOOR OUTSIDE, UPPER RH

main76803-BZ050iB401201606-202207

76814GARNISH, BACK DOOR OUTSIDE, UPPER LH

main76804-BZ030iB401201606-202207

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12070iB401¥80201909-202207

main90044-67500iB401¥200201606-201909

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-BZ150iB401201606-201909

main76821-BZ190iB401..G;B401..5F..E201909-202207

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-BZ020iB401201606-201909

main76822-BZ060iB401201909-202207

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-BZ030iB401201606-201909

main76823-BZ080iB401201909-202207

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-BZ020iB401201606-201909

main76824-BZ040iB401..G;B401..5F..E201909-202207

76826RETAINER, BACK DOOR GARNISH, NO.1

main76826-BZ030iB401201606-202207

76827RETAINER, BACK DOOR GARNISH, NO.2

main76827-BZ010iB401201606-202207

9004468278

main90044-68278¥150

9004A17258

main9004A-17258

9043005003

main90430-05003¥60

13 parts on this diagram · 4 diagrams in section
