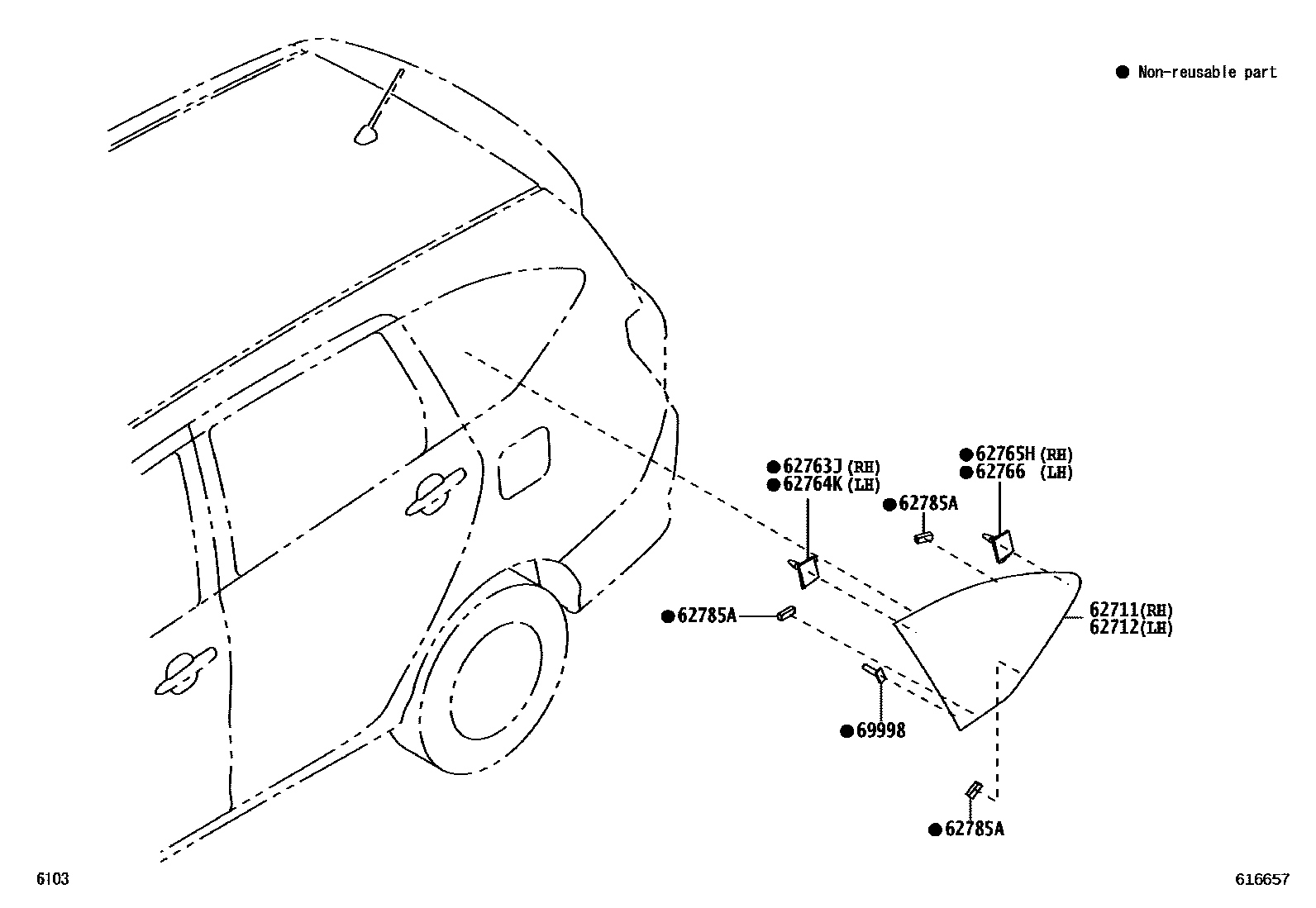

Toyota CALYA — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-BZ290iB401201909-202207

main62711-BZ290iB401..G;B401..5F..E202207

main62711-BZ290iB401201606-201909

62712GLASS, QUARTER WINDOW, LH

main62712-BZ290iB401201909-202207

main62712-BZ290iB401..G;B401..5F..E202207

main62712-BZ290iB401201606-201909

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-BZ040iB401201909-202207

RH

main62763-BZ040iB401..G;B401..5F..E202207

RH

main62763-BZ040iB401201606-201909

RH

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-BZ040iB401201909-202207

LH

main62764-BZ040iB401..G;B401..5F..E202207

LH

main62764-BZ040iB401201606-201909

LH

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-BZ020iB401201909-202207

RH

main62765-BZ020iB401..G;B401..5F..E202207

RH

main62765-BZ020iB401201606-201909

RH

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-BZ020iB401201909-202207

LH

main62766-BZ020iB401..G;B401..5F..E202207

LH

main62766-BZ020iB401201606-201909

LH

62785ASPACER, QUARTER WINDOW GLASS

main64818-BZ010iB401201909-202207

sub64818-87704¥200

main64818-BZ010iB401..G;B401..5F..E202207

sub64818-87704¥200

main64818-BZ010iB401201606-201909

sub64818-87704¥200

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-BZ010iB401201909-202207

main69998-BZ010iB401..G;B401..5F..E202207

main69998-BZ010iB401201606-201909

8 parts on this diagram · 1 diagram in section
