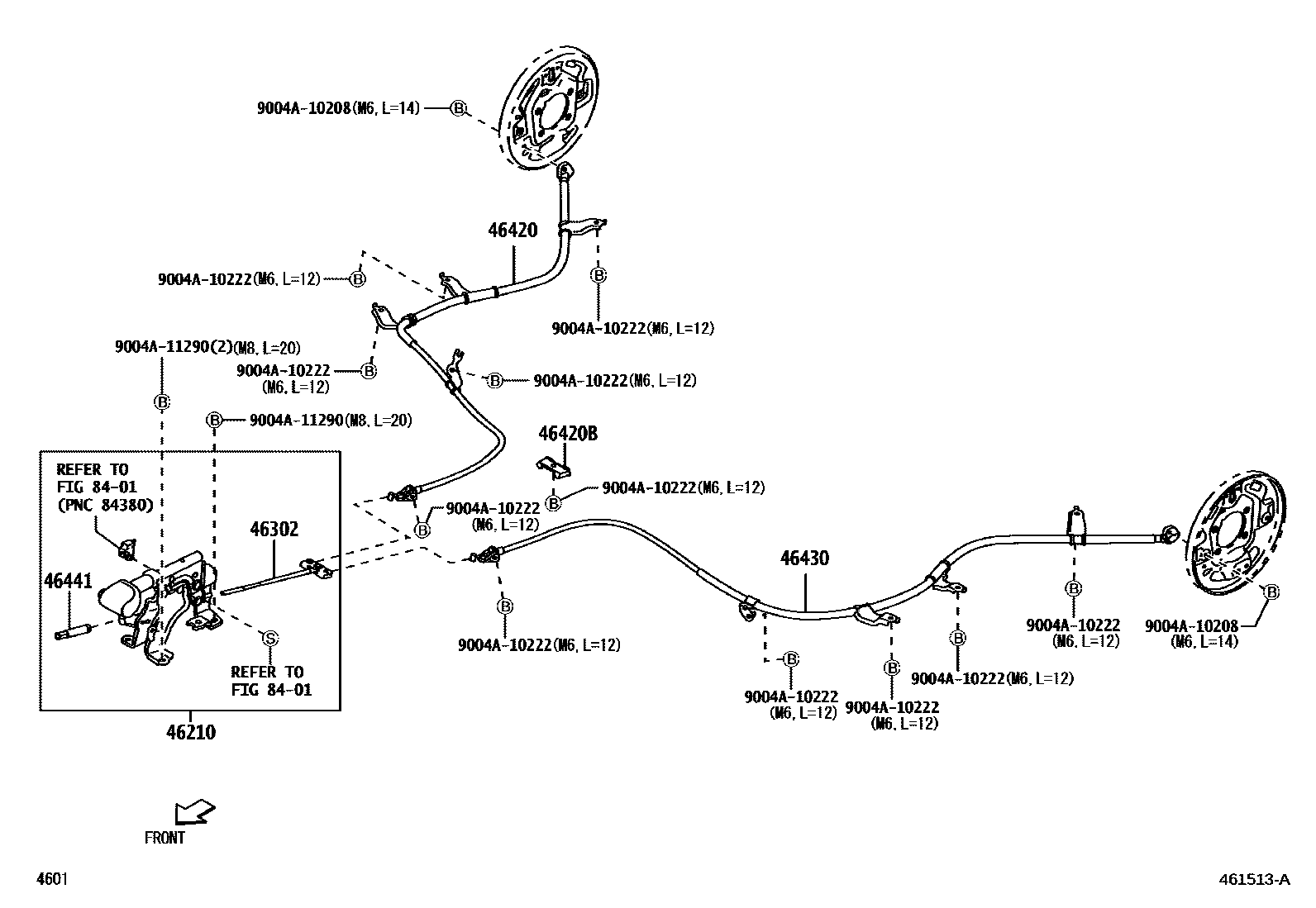

Toyota CALYA — PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-BZ170-B0iB401..E201909-202207

DK.GRAY,TRIM4#

main46210-BZ170-B0iB401..E201606-201909

DK.GRAY,TRIM4#

main46210-BZ170-B0iB401..5F..E202207

DK.GRAY,TRIM4#

main46210-BZ180-B0iB401..G201909-202207

DK.GRAY,TRIM4#

main46210-BZ180-B0iB401..G202207

DK.GRAY,TRIM4#

main46210-BZ180-B0iB401..G201606-201909

DK.GRAY,TRIM4#

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-BZ030iB401201909-202207

main46302-BZ030iB401..G;B401..5F..E202207

main46302-BZ030iB401201606-201909

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ210iB401..G;B401..5F..E202207

RH

main46420-BZ210iB401201909-202207

RH

main46420-BZ210iB401201606-201909

RH

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90044-61832iB401¥230201909-202207

main90044-61832iB401..G;B401..5F..E¥230202207

main90044-61832iB401¥230201606-201909

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ210iB401201909-202207

LH

main46430-BZ210iB401..G;B401..5F..E202207

LH

main46430-BZ210iB401201606-201909

LH

46441NUT, WIRE ADJUSTING, NO.1

main46441-87Z04iB401201909-202207

main46441-87Z04iB401..G;B401..5F..E202207

main46441-87Z04iB401201606-201909

8401

9004A10208

main9004A-10208¥110

9004A10222

main9004A-10222

9004A11290

main9004A-11290

10 parts on this diagram · 1 diagram in section
