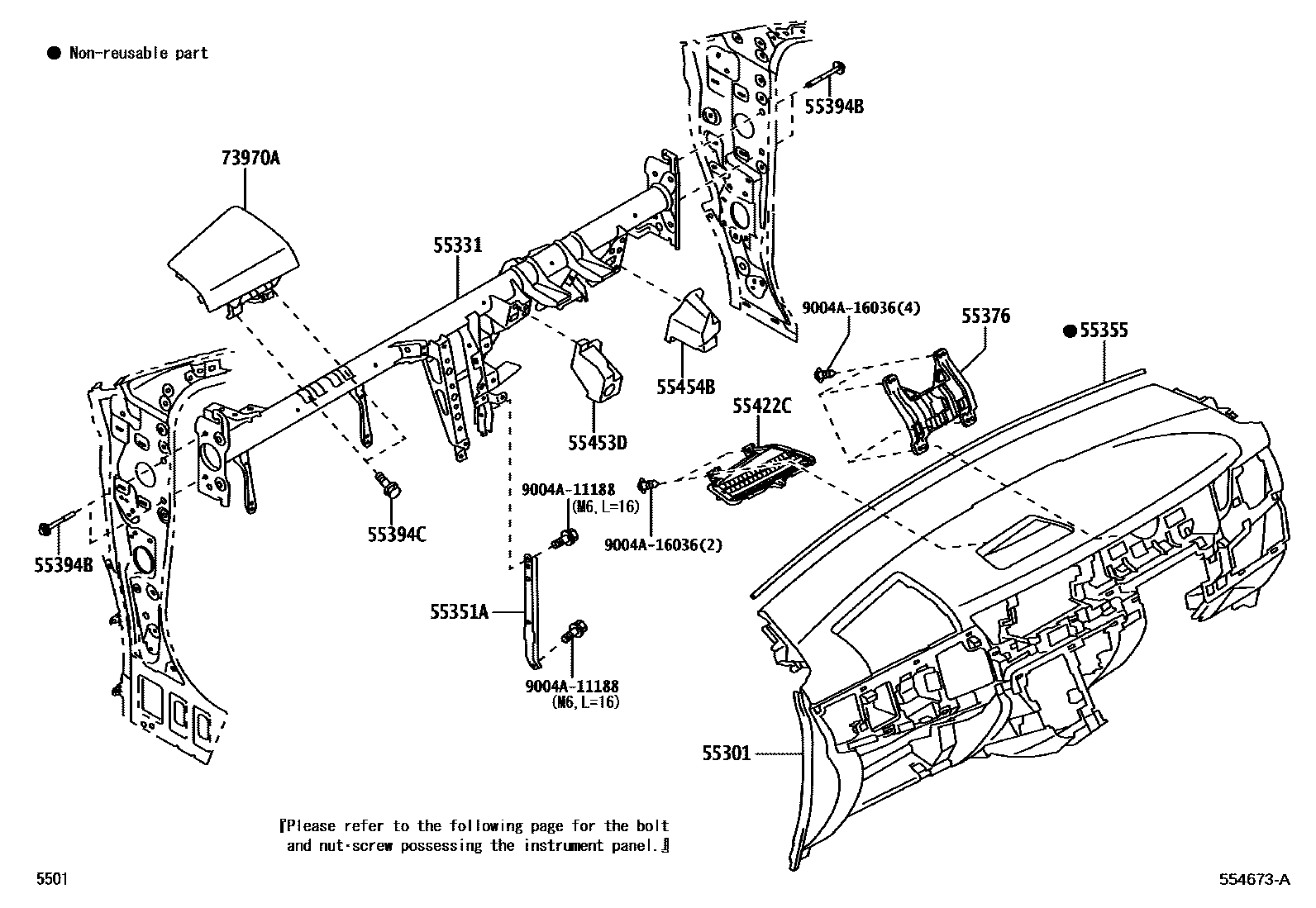

Toyota CALYA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0004 1 0007 1 0010 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ630-B0iB401201606-201908

DK.GRAY,TRIM4#

sub55311-BZ631

main55311-BZ631-B0iB401201909-202207

DK.GRAY,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZ710iB401..5F201606-202207

main55305-BZ730iB401..4FC201606-202207

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-BZ170iB401201606-202207

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-BZ140iB401202008-202207

main55355-BZ100iB401201606-202007

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-BZ220iB401..G;B401..5F..E201606-202207

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020iB401¥200201606-202207

55394CBOLT, INSTRUMENT PANEL

main9004A-11214iB401201606-202101

M6,L=18

main9004A-11383iB401202105-202207

M6,L=20

main91673-80616iB401¥60202101-202104

M6,L=20

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-BZ060-B0iB401..G;B401..5F..E201606-202207

DK.GRAY,TRIM4#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ080iB401201606-202207

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ100iB401201606-202207

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ220-B0iB401201606-202207

DK.GRAY,TRIM4#

9004A11188

main9004A-11188¥110

9004A16036

main9004A-16036¥110

13 parts on this diagram · 4 diagrams in section
