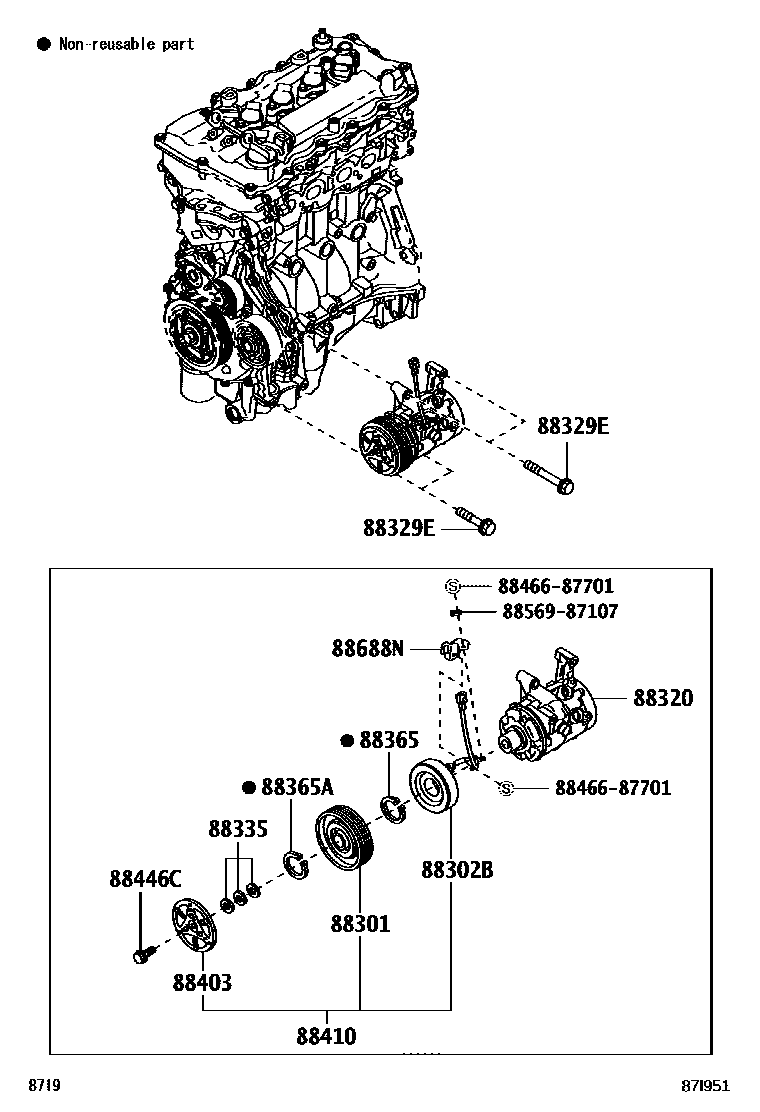

Toyota CALYA — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ110iB401201606-202207

88302BSTATOR, MAGNET CLUTCH

main88411-BZ210iB401201606-202207

88320COMPRESSOR ASSY, COOLER

main88320-BZ330iB401201606-202207

88329EBOLT, COMPRESSOR, NO.1

main9004A-10144iB401201606-202207

88335GASKET KIT, OVERHAUL

main88335-14020iB401201606-202207

88365RING, SNAP

main90099-07125iB401¥250201606-202207

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iB401201606-202207

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-BZ080iB401201606-202207

88410CLUTCH ASSY, MAGNET

main88410-BZ320iB401201606-202207

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iB401201606-202207

88688NBRACKET, COOLER

main88688-BZ220iB401201606-202207

8846687701

main88466-87701

8856987107CLAMP (FOR COOLER RELAY)

main88569-87107

13 parts on this diagram · 1 diagram in section
