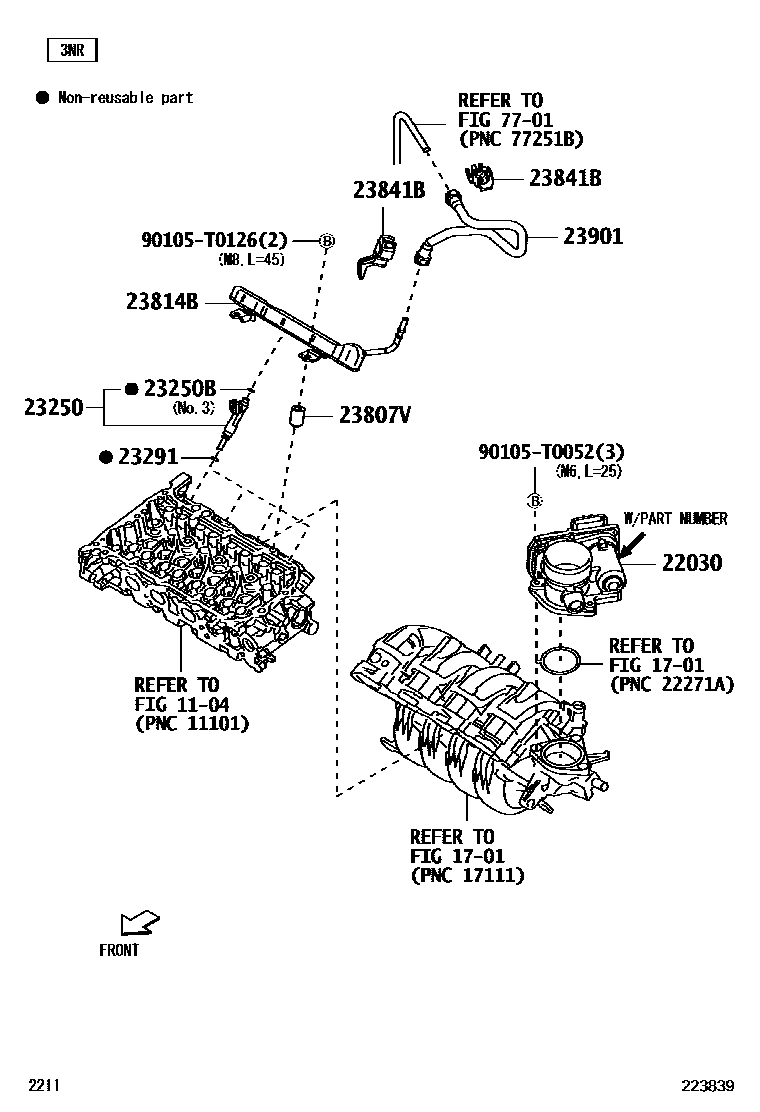

Toyota CALYA — FUEL INJECTION SYSTEM

1104

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y120i3NRVE..B401..G;3NRVE..B401..5F..E202207

main22030-0Y120i3NRVE..B401201909-202207

main22030-0Y120i3NRVE..B401201902-201909

main22030-BZ030i3NRVE..B401201606-201901

sub22030-0Y120

23250INJECTOR ASSY, FUEL

main23209-09340i3NRVE..B401201606-201909

main23209-09340i3NRVE..B401201909-202207

main23209-09340i3NRVE..B401..G;3NRVE..B401..5F..E202207

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i3NRVE..B401¥140201909-202207

main90301-07042i3NRVE..B401..G;3NRVE..B401..5F..E¥140202207

main90301-07042i3NRVE..B401¥140201606-201909

NO.3

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i3NRVE..B401¥230201909-202207

main23291-0Y020i3NRVE..B401..G;3NRVE..B401..5F..E¥230202207

main23291-0Y020i3NRVE..B401¥230201606-201909

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040i3NRVE..B401201909-202207

main23891-47040i3NRVE..B401..G;3NRVE..B401..5F..E202207

main23891-47040i3NRVE..B401201606-201909

23814BPIPE, FUEL DELIVERY

main23814-0Y010i3NRVE..B401..G;3NRVE..B401..5F..E202207

main23814-0Y010i3NRVE..B401201606-201909

main23814-0Y010i3NRVE..B401201909-202207

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i3NRVE..B401201606-201909

main23841-BZ020i3NRVE..B401201909-202207

main23841-BZ020i3NRVE..B401..G;3NRVE..B401..5F..E202207

23901TUBE SUB-ASSY, FUEL

main23901-BZ070i3NRVE..B401201606-201711

sub23901-BZ110

main23901-BZ110i3NRVE..B401201909-202207

main23901-BZ110i3NRVE..B401..G;3NRVE..B401..5F..E202207

main23901-BZ110i3NRVE..B401201712-201909

7701

90105T0052

main90105-T0052

90105T0126

main90105-T0126

13 parts on this diagram · 1 diagram in section
