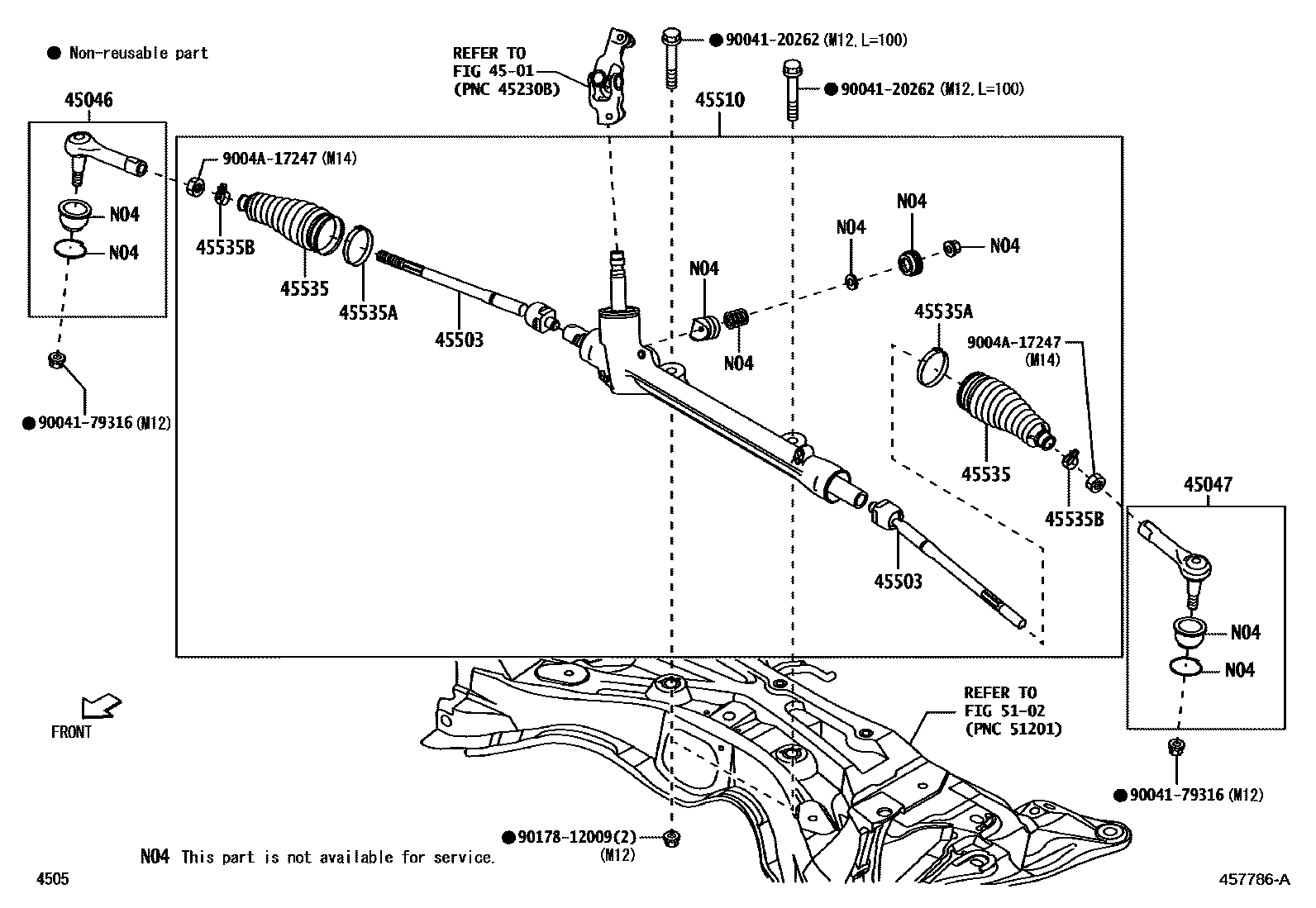

Toyota CALYA — FRONT STEERING GEAR & LINK

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-BZ180iB401201606-202207

45047END SUB-ASSY, TIE ROD, LH

main45046-BZ180iB401201606-202207

45503END SUB-ASSY, STEERING RACK

main45503-BZ180iB401201606-202207

45510GEAR ASSY, STEERING

main45502-BZ040iB401201606-202207

45535BOOT, STEERING RACK, NO.1

main45535-BZ170iB401201606-202207

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-BZ040iB401201606-202207

45535BCLIP(FOR STEERING RACK BOOT)

main45537-BZ030iB401¥200201606-202207

5102

9004120262

main90041-20262¥430

9004179316

main90041-79316¥170

9004A17247

main9004A-17247¥100

9017812009

main90178-12009¥120

13 parts on this diagram · 1 diagram in section
