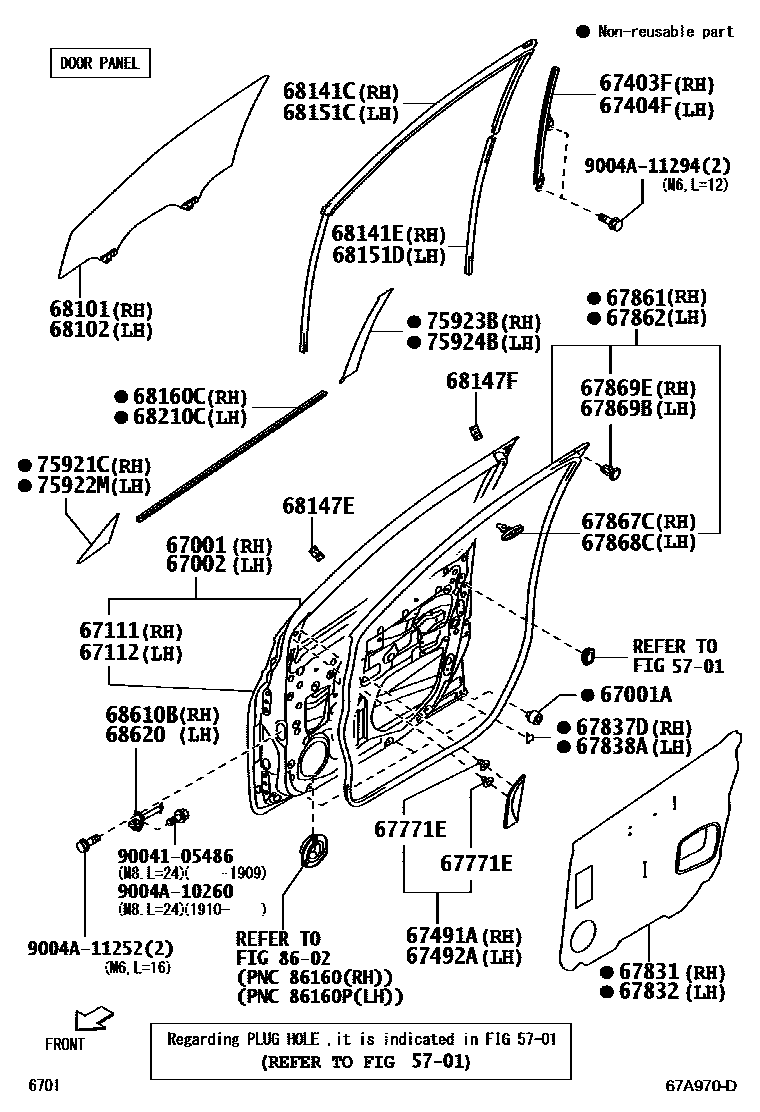

Toyota CALYA — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0004 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-BZ560iB401201606-201909

main67001-BZ560iB401..G;B401..5F..E202207

main67001-BZ560iB401201909-202207

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iB401¥170201909-202207

main90541-09069iB401..G;B401..5F..E¥170202207

main90541-09069iB401¥170201606-201909

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-BZ560iB401201909-202207

main67002-BZ560iB401..G;B401..5F..E202207

main67002-BZ560iB401201606-201909

67111PANEL, FRONT DOOR, OUTER RH

main67111-BZ350iB401201909-202207

main67111-BZ350iB401..G;B401..5F..E202207

main67111-BZ350iB401201606-201909

67112PANEL, FRONT DOOR, OUTER LH

main67112-BZ350iB401..G;B401..5F..E202207

main67112-BZ350iB401201909-202207

main67112-BZ350iB401201606-201909

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-BZ130iB401..G;B401..5F..E202207

main67403-BZ130iB401201909-202207

main67403-BZ130iB401201606-201909

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-BZ130iB401201909-202207

main67404-BZ130iB401..G;B401..5F..E202207

main67404-BZ130iB401201606-201909

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-BZ140iB401..G;B401..5F..E202207

main67491-BZ140iB401201909-202207

main67491-BZ140iB401201606-201909

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-BZ140iB401201909-202207

main67492-BZ140iB401..G;B401..5F..E202207

main67492-BZ140iB401201606-201909

67771ERETAINER(FOR FRONT DOOR FRAME BRACKET)

main90044-67615iB401..G;B401..5F..E¥110202207

LH

main90044-67615iB401¥110201909-202207

LH,RH

main90044-67615iB401¥110201606-201909

LH,RH

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-BZ370iB401201909-202207

main67831-BZ370iB401..G;B401..5F..E202207

main67831-BZ370iB401201606-201909

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-BZ370iB401201909-202207

main67831-BZ370iB401..G;B401..5F..E202207

main67831-BZ370iB401201606-201909

67837DSEAL, FRONT DOOR VENT, RH

main67837-BZ040iB401201909-202207

main67837-BZ040iB401..G;B401..5F..E202207

main67837-BZ040iB401201606-201909

67838ASEAL, FRONT DOOR VENT, LH

main67837-BZ040iB401201909-202207

main67837-BZ040iB401..G;B401..5F..E202207

main67837-BZ040iB401201606-201909

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-BZ180iB401201909-202207

main67861-BZ180iB401..G;B401..5F..E202207

main67861-BZ180iB401201606-201909

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-BZ170iB401201909-202207

main67862-BZ170iB401..G;B401..5F..E202207

main67862-BZ170iB401201606-201909

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-B2320iB401¥120201909-202207

main67867-B2320iB401..G;B401..5F..E¥120202207

main67867-B2320iB401¥120201606-201909

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-B2320iB401¥120201606-201909

main67867-B2320iB401¥120201909-202207

main67867-B2320iB401..G;B401..5F..E¥120202207

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-B2010iB401¥120201909-202207

LH

main67869-B2010iB401..G;B401..5F..E¥120202207

LH

main67869-B2010iB401¥120201606-201909

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-B2010iB401¥120201909-202207

RH

main67869-B2010iB401..G;B401..5F..E¥120202207

RH

main67869-B2010iB401¥120201606-201909

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-BZ290iB401..G;B401..5F..E202207

ASAHIMAS

main68101-BZ290iB401201909-202207

ASAHIMAS

main68101-BZ290iB401201606-201909

ASAHIMAS

main68101-BZ330iB401201909-202207

MULIA GLASS

main68101-BZ330iB401201606-201909

MULIA GLASS

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-BZ290iB401201606-201909

ASAHIMAS

main68102-BZ290iB401201909-202207

ASAHIMAS

main68102-BZ290iB401..G;B401..5F..E202207

ASAHIMAS

main68102-BZ330iB401201909-202207

MULIA GLASS

main68102-BZ330iB401201606-201909

MULIA GLASS

68141CRUN, FRONT DOOR GLASS, RH

main68141-BZ160iB401..G;B401..5F..E202207

main68141-BZ160iB401201909-202207

main68141-BZ160iB401201606-201909

68141ERUN, FRONT DOOR GLASS, RH

main68143-BZ070iB401201909-202207

main68143-BZ070iB401..G;B401..5F..E202207

main68143-BZ070iB401201606-201909

68147ESTOP, FRONT DOOR GLASS, UPPER

main67216-BZ070iB401201909-202207

main67216-BZ070iB401..G;B401..5F..E202207

main67216-BZ070iB401201606-201909

68147FSTOP, FRONT DOOR GLASS, UPPER

main67216-BZ080iB401201909-202207

main67216-BZ080iB401..G;B401..5F..E202207

main67216-BZ080iB401201606-201909

68151CRUN, FRONT DOOR GLASS, LH

main68151-BZ160iB401201909-202207

main68151-BZ160iB401..G;B401..5F..E202207

main68151-BZ160iB401201606-201909

68151DRUN, FRONT DOOR GLASS, LH

main68143-BZ070iB401201909-202207

main68143-BZ070iB401..G;B401..5F..E202207

main68143-BZ070iB401201606-201909

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-BZ170iB401201909-202207

main68161-BZ170iB401..G;B401..5F..E202207

main68161-BZ170iB401201606-201909

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-BZ160iB401201909-202207

main68162-BZ160iB401..G;B401..5F..E202207

main68162-BZ160iB401201606-201909

68610BCHECK ASSY, FRONT DOOR, RH

main68610-BZ061iB401201909-202207

main68610-BZ061iB401..G;B401..5F..E202207

main68610-BZ061iB401201606-201909

68620CHECK ASSY, FRONT DOOR, LH

main68610-BZ061iB401201909-202207

main68610-BZ061iB401..G;B401..5F..E202207

main68610-BZ061iB401201606-201909

75921CTAPE, BLACK OUT, NO.1 RH

main75921-BZ140-C0iB401201909-202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09

main75921-BZ140-C0iB401..G;B401..5F..E202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,4T3 ,R71 ,S28 ,W09

main75921-BZ140-C0iB401201606-201909

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09 ,X13

75922MTAPE, BLACK OUT, NO.1 LH

main75922-BZ130-C0iB401201909-202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09

main75922-BZ130-C0iB401..G;B401..5F..E202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,4T3 ,R71 ,S28 ,W09

main75922-BZ130-C0iB401201606-201909

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09 ,X13

75923BTAPE, BLACK OUT, NO.2 RH

main75923-BZ160-C0iB401..G201909-202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09

main75923-BZ160-C0iB401..G202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,4T3 ,R71 ,S28 ,W09

main75923-BZ160-C0iB401..G201606-201909

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09

75924BTAPE, BLACK OUT, NO.2 LH

main75924-BZ160-C0iB401..G201909-202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,4T3 ,R40 ,R71 ,S28 ,W09

main75924-BZ160-C0iB401..G202207

TUYAKESI BLACK DUMMYCOLOR,1G3 ,3Q3 ,4T3 ,R71 ,S28 ,W09

main75924-BZ160-C0iB401..G201606-201909

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,R40 ,R71 ,W09

8602

9004105486

main90041-05486¥170

9004A10260

main9004A-10260

9004A11252

main9004A-11252

9004A11294

main9004A-11294¥110

42 parts on this diagram · 2 diagrams in section
