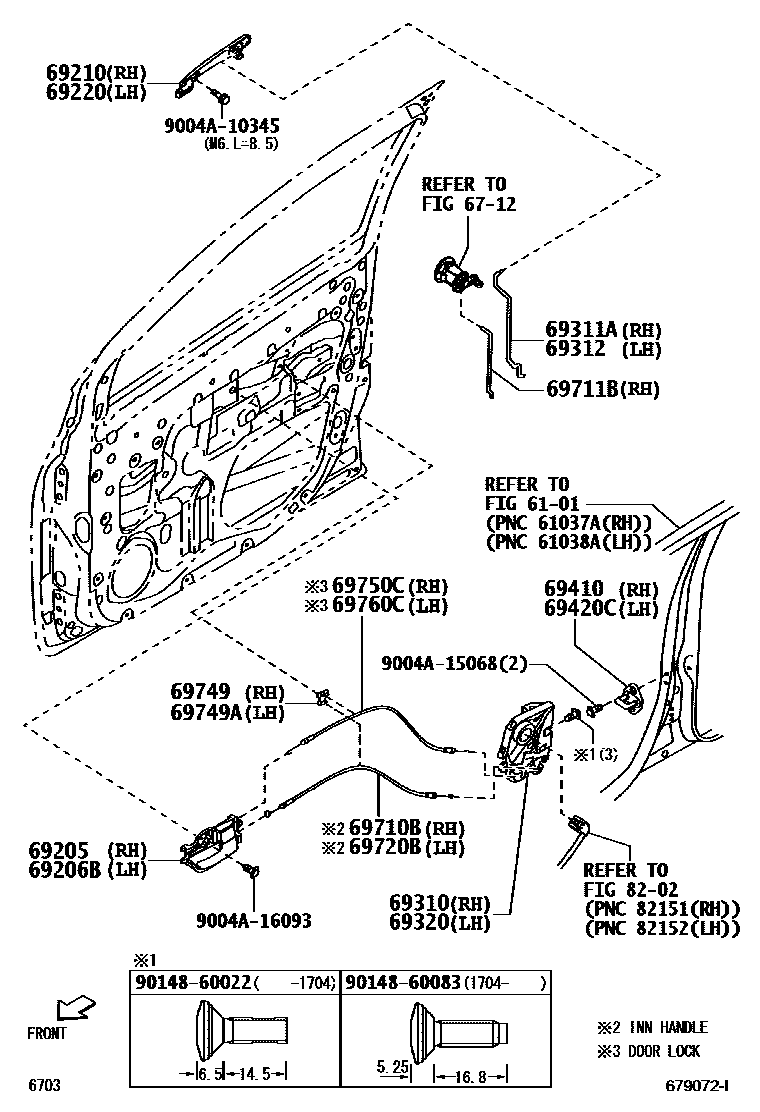

Toyota CALYA — FRONT DOOR LOCK & HANDLE

6101

6712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ091-B0iB401..E201606-201806

DK.GRAY,TRIM4#

main69270-BZ091-C0iB401..E201806-202207

BLACK,TRIM4#

main69270-BZ130-B0iB401..G201606-201806

DK.GRAY,TRIM4#

main69270-BZ130-C0iB401..G201806-202207

BLACK,TRIM4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ091-B0iB401..E201606-201806

DK.GRAY,TRIM4#

main69280-BZ091-C0iB401..E201806-202207

BLACK,TRIM4#

main69280-BZ130-B0iB401..G201606-201806

DK.GRAY,TRIM4#

main69280-BZ130-C0iB401..G201806-202207

BLACK,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ200-A0iB401201606-202207

WHITE,W09

main69210-BZ200-B1iB401201606-201909

SILVER M.M.,1E7

main69210-BZ200-B3iB401..G;B401..5F..E201606-202207

GRAY ME.,1G3

main69210-BZ200-B4iB401..G;B401..5F..E201909-202207

SILVER ME.,S28

main69210-BZ200-C1iB401201606-202207

BLACK,X13

main69210-BZ200-D1iB401..G;B401..5F..E202207

DK. RED M.M.,3Q3

main69210-BZ200-D2iB401201606-202207

RED,R40

main69210-BZ200-D3iB401201606-202207

ORANGE ME.,R71

main69210-BZ200-E2iB401201909-202207

BRONZE M.M.,4T3

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ200-A0iB401..G;B401..5F..E201606-202207

WHITE,W09

main69220-BZ200-B1iB401201606-201909

SILVER M.M.,1E7

main69220-BZ200-B3iB401201606-202207

GRAY ME.,1G3

main69220-BZ200-B4iB401..G;B401..5F..E201909-202207

SILVER ME.,S28

main69220-BZ200-C1iB401..G;B401..5F..E201606-202207

BLACK,X13

main69220-BZ200-D1iB401..G;B401..5F..E202207

DK. RED M.M.,3Q3

main69220-BZ200-D2iB401201606-202207

RED,R40

main69220-BZ200-D3iB401..G;B401..5F..E201606-202207

ORANGE ME.,R71

main69220-BZ200-E2iB401201909-202207

BRONZE M.M.,4T3

69310LOCK ASSY, FRONT DOOR, RH

main69310-BZ130iB401201606-201610

sub69310-BZ370

main69310-BZ370iB401..G;B401..5F..E201611-202207

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-BZ080iB401201606-202207

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-BZ080iB401201606-202207

69320LOCK ASSY, FRONT DOOR, LH

main69320-BZ110iB401201606-201610

sub69320-BZ330

main69320-BZ330iB401..G;B401..5F..E201611-202207

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-BZ010iB401¥1,040201606-202207

RH

69420CPLATE ASSY, DOOR LOCK STRIKER

main69410-BZ010iB401¥1,040201606-202207

LH

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-BZ090iB401201606-202207

INN HANDLE SIDE

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ090iB401201606-202207

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-BZ090iB401201606-202207

INN HANDLE SIDE

69749CLAMP, FRONT DOOR LOCK LINK

main69749-BZ100iB401201606-202207

RH

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-BZ100iB401201606-202207

LH

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-BZ090iB401201606-202207

DOOR LOCK

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-BZ090iB401201606-202207

DOOR LOCK

8202

9004A10345

main9004A-10345

9004A15068

main9004A-15068

9004A16093

main9004A-16093

9014860022

main90148-60022¥60

9014860083

main90148-60083¥60

25 parts on this diagram · 1 diagram in section
