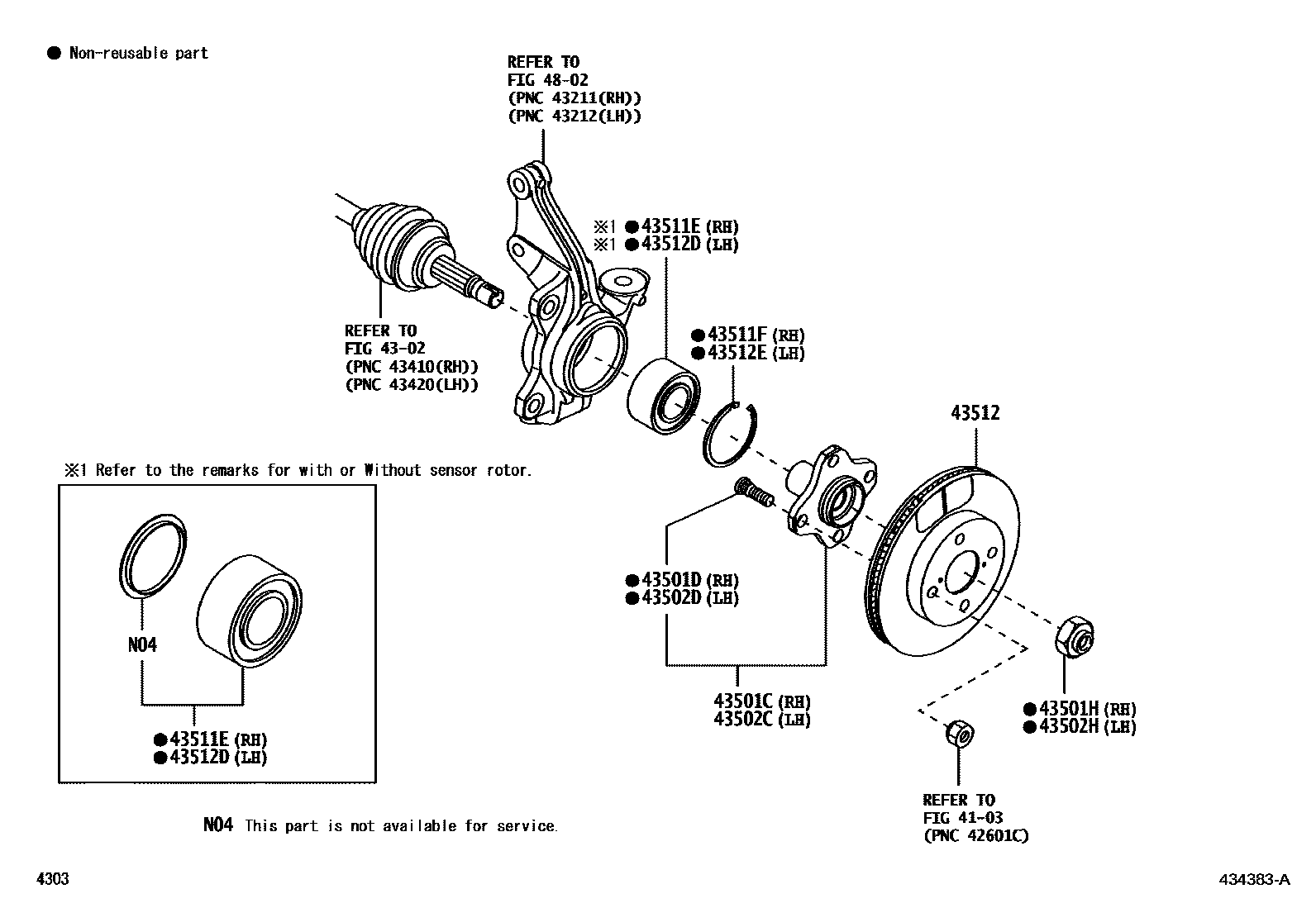

Toyota CALYA — FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-BZ180iB401201606-202207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056iB401¥270201606-202207

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iB401¥220201606-202412

main90177-T0017iB401202501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-BZ180iB401201606-202207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056iB401¥270201606-202207

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iB401¥220201606-202412

main90177-T0017iB401202501

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-BZ050iB401..4FC¥4,130201606-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS,W/SENSOR ROTOR

main43560-BZ050iB401..4FC¥4,130201606-202207

W/SENSOR ROTOR

main43560-BZ060iB401..5F..E201606-202207

W/O SENSOR ROTOR

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iB401..G;B401..5F..E¥310201606-202207

43512DISC, FRONT

main43512-BZ290iB401201606-202207

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-BZ050iB401..G¥4,130201606-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS,W/SENSOR ROTOR

main43560-BZ050iB401..4FC;B401..5F..G¥4,130201606-202207

W/SENSOR ROTOR

main43560-BZ060iB401..5F..E201606-202207

W/O SENSOR ROTOR

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iB401..G;B401..5F..E¥310201606-202207

4802

14 parts on this diagram · 1 diagram in section
