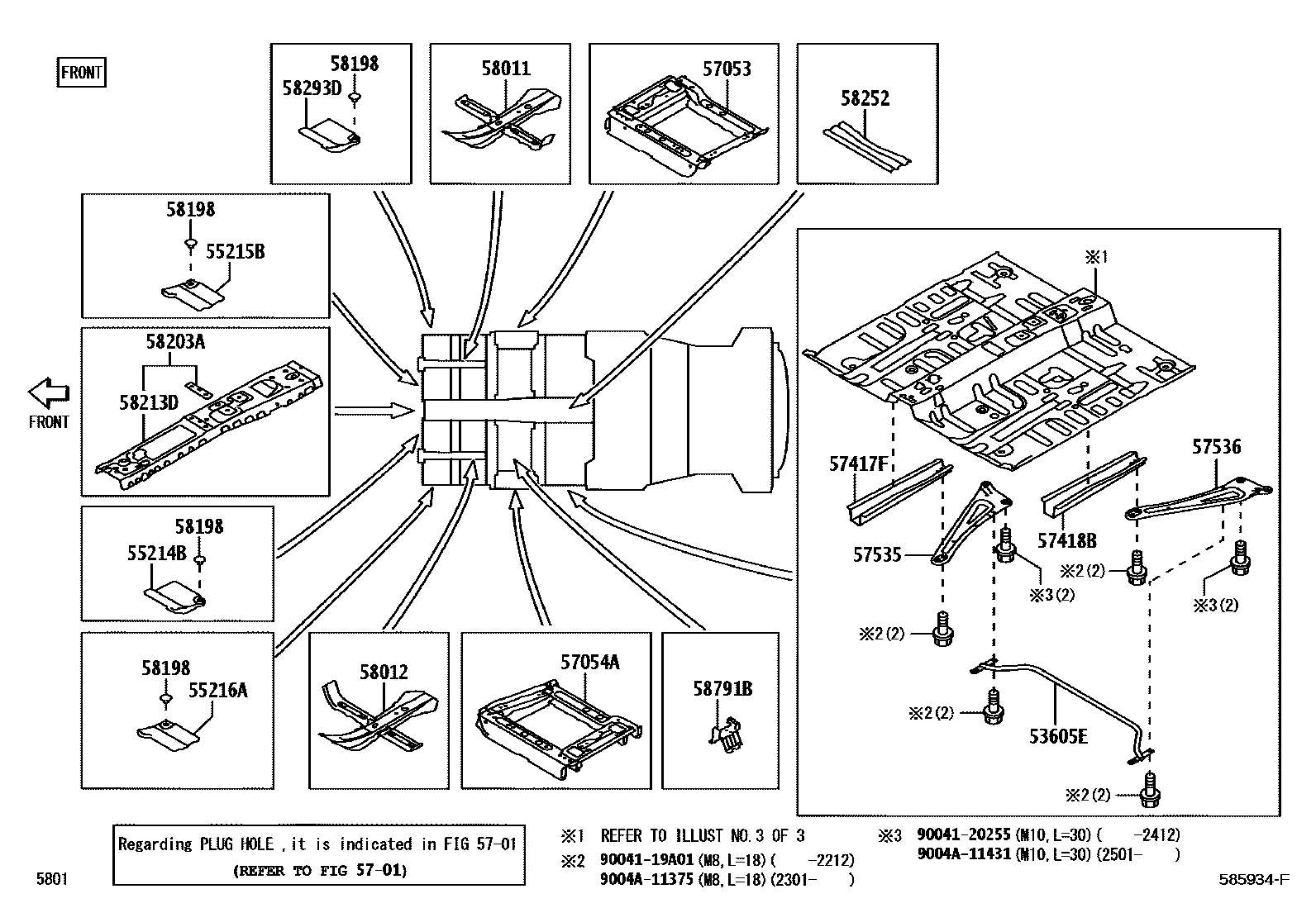

Toyota CALYA — FLOOR PAN & LOWER BACK PANEL

0001 1ILLUST NO.1 OF 3 0004 1ILLUST NO.2 OF 3 0007 1ILLUST NO.3 OF 3

53605EBRACE SUB-ASSY, REAR SUSPENSION, UPPER

main53650-BZ010iB401..4FC..G201606-202207

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-BZ060iB401201606-202207

55215BPAD, DASH PANEL INSULATOR, NO.3

main58572-BZ020iB401201606-202207

55216APAD, DASH PANEL INSULATOR, NO.4

main58572-BZ020iB401201606-202207

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-BZ040iB401201606-202207

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-BZ060iB401201606-202207

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-BZ070iB401201606-202207

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-BZ070iB401201606-202207

57535BRACE, FRONT FLOOR, RH

main57535-BZ020iB401201606-202207

57536BRACE, FRONT FLOOR, LH

main57536-BZ020iB401..G;B401..5F..E201606-202207

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58025-BZ030iB401201606-202207

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58026-BZ030iB401..G;B401..5F..E201606-202207

58198CLIP, FOOTREST

main90044-67397iB401¥150201606-201608

main9004A-46131-B0iB401201609-201801

DK.GRAY

main9004A-46131-C1iB401201801-202207

BLACK

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-BZ060iB401..5F201606-202207

main58203-BZ070iB401..4FC..G201606-202207

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-BZ130iB401..5F201606-202207

main58213-BZ140iB401..4FC201606-202207

58252BRACE, FLOOR PANEL, REAR

main58252-BZ010iB401201606-202207

58293DPAD, FRONT FLOOR

main58571-BZ020iB401201606-202207

58791BCARRIER, JACK

main58791-BZ050iB401201606-202207

9004119A01

main90041-19A01¥150

9004120255

main90041-20255

9004A11375

main9004A-11375

9004A11431

main9004A-11431

23 parts on this diagram · 3 diagrams in section
