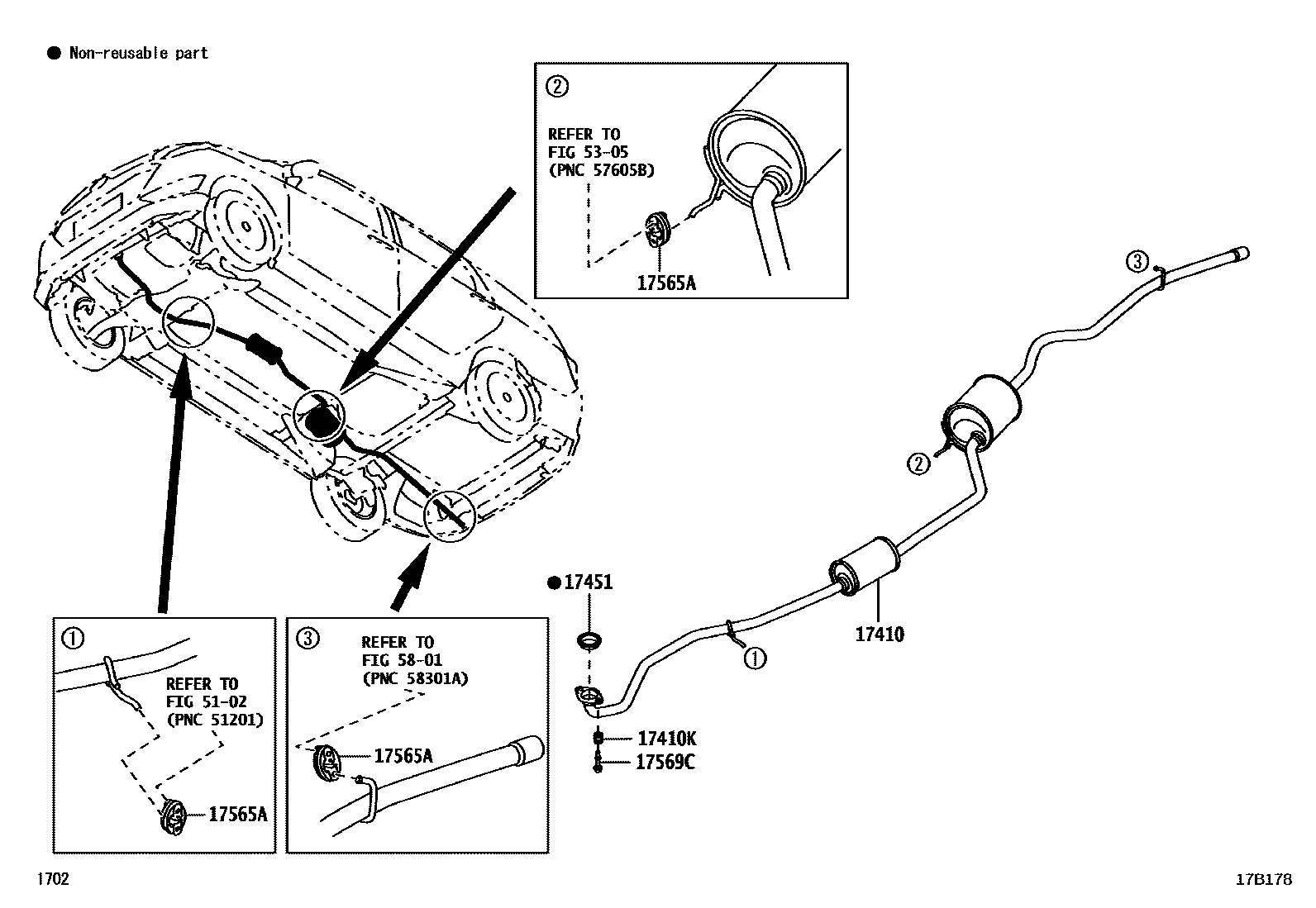

Toyota CALYA — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZ720i3NRVE..B401201606-201810

main17410-BZ730i3NRVE..B401201810-202207

17410KSPRING, EXHAUST PIPE

main17152-BZ010i3NRVE..B401201606-202207

sub90501-35028¥550

17451GASKET, EXHAUST PIPE

main17451-B0010i3NRVE..B401¥1,650201606-202207

17565ASUPPORT, EXHAUST PIPE, NO.4

main17567-87703i3NRVE..B401¥900201606-202110

main17567-BZ140i3NRVE..B401202111-202207

17569CBOLT, EXHAUST PIPE SUPPORT

main9004A-10221i3NRVE..B401201606-202112

main90901-05026i3NRVE..B401..G;3NRVE..B401..5F..E¥310202201-202207

5102

5305

5801

8 parts on this diagram · 1 diagram in section
