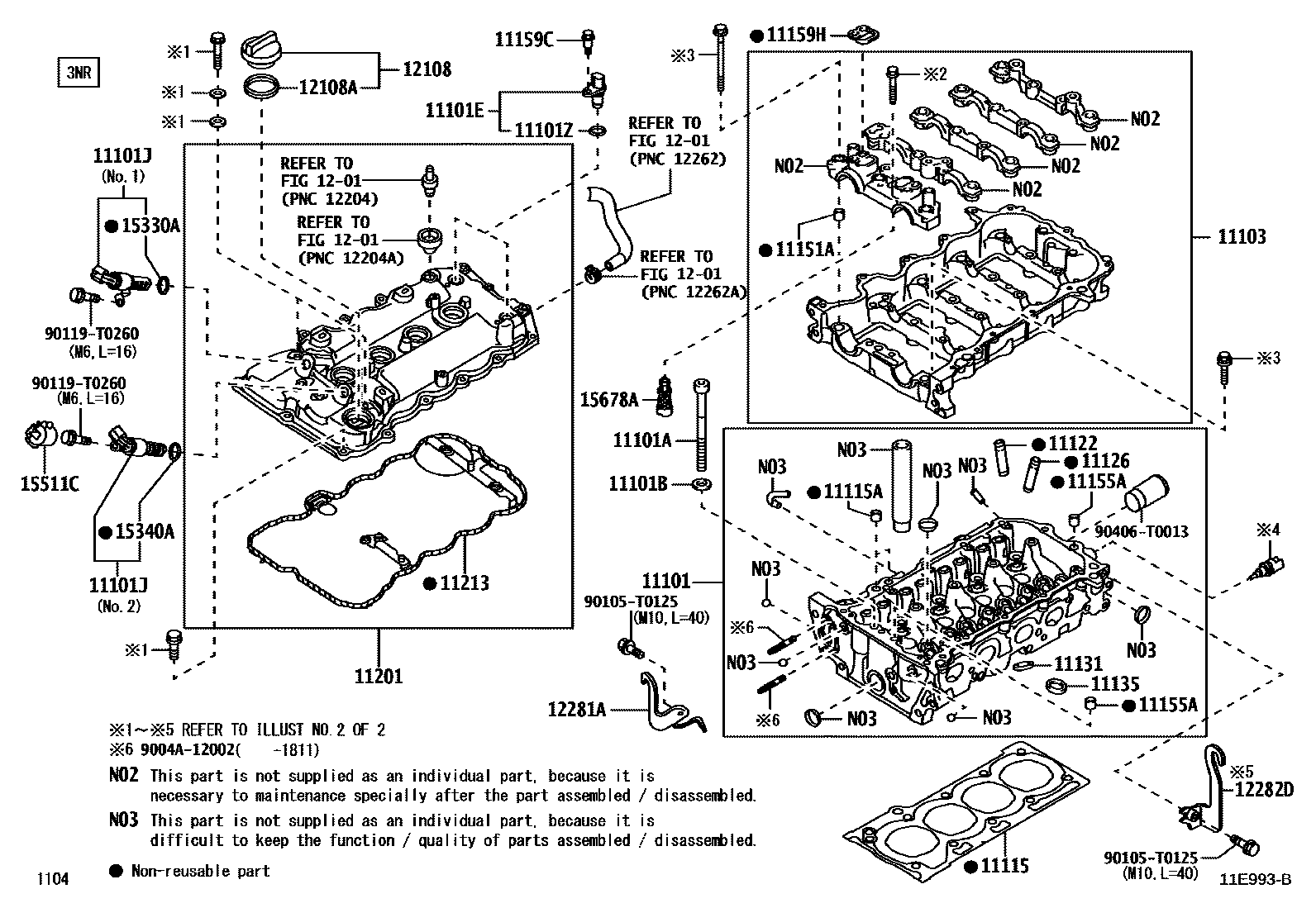

Toyota CALYA — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.2
11101ZO RING, CAM POSITION SENSOR
11103HOUSING SUB-ASSY, CAMSHAFT
11115GASKET, CYLINDER HEAD
11115APIN, RING
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11201COVER SUB-ASSY, CYLINDER HEAD
.
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
TYPE A
TYPE B
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15511CCOVER, OIL CONTROL VALVE
15678AFILTER, OIL CONTROL VALVE
9004A12002
main9004A-12002
90105T0125
90119T0260
main90119-T0260
90406T0013
main90406-T0013
32 parts on this diagram · 2 diagrams in section
