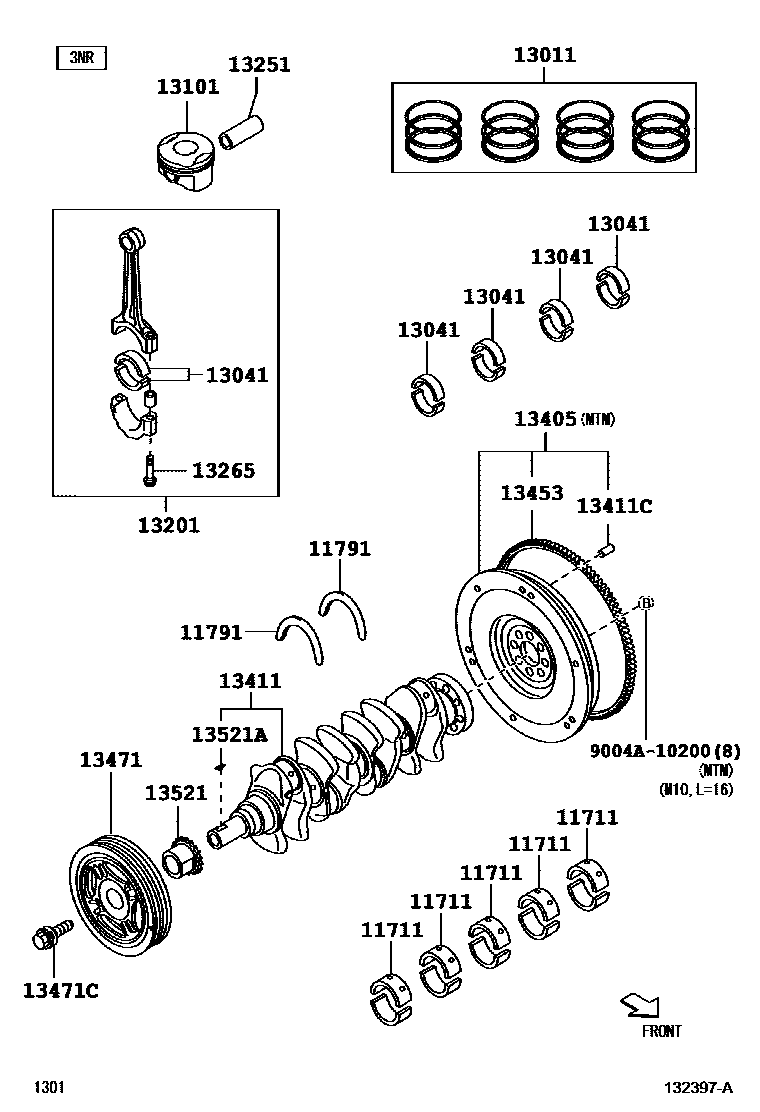

Toyota CALYA — CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-0Y030-02i3NRVE..B401201606-201909

MARK2

main11701-0Y030-02i3NRVE..B401201909-202207

MARK2

main11701-0Y030-02i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK2

main11701-0Y030-03i3NRVE..B401201606-201909

MARK3

main11701-0Y030-03i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK3

main11701-0Y030-03i3NRVE..B401201909-202207

MARK3

main11701-0Y030-04i3NRVE..B401201909-202207

MARK4

main11701-0Y030-04i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK4

main11701-0Y030-04i3NRVE..B401201606-201909

MARK4

main11701-0Y030-05i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK5

main11701-0Y030-05i3NRVE..B401201909-202207

MARK5

main11701-0Y030-05i3NRVE..B401201606-201909

MARK5

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010i3NRVE..B401¥1,740201909-202207

STD

main11791-B0010i3NRVE..B401..G;3NRVE..B401..5F..E¥1,740202207

STD

main11791-B0010i3NRVE..B401¥1,740201606-201909

STD

13011RING SET, PISTON

main13011-0Y030i3NRVE..B401¥9,800201909-202207

STD

main13011-0Y030i3NRVE..B401..G;3NRVE..B401..5F..E¥9,800202207

STD

main13011-0Y030i3NRVE..B401¥9,800201606-201909

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01i3NRVE..B401201909-202207

MARK1

main13041-0Y040-01i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK1

main13041-0Y040-01i3NRVE..B401201606-201909

MARK1

main13041-0Y040-02i3NRVE..B401201909-202207

MARK2

main13041-0Y040-02i3NRVE..B401201606-201909

MARK2

main13041-0Y040-02i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK2

main13041-0Y040-03i3NRVE..B401201909-202207

MARK3

main13041-0Y040-03i3NRVE..B401..G;3NRVE..B401..5F..E202207

MARK3

main13041-0Y040-03i3NRVE..B401201606-201909

MARK3

13101PISTON SUB-ASSY, W/PIN

main13101-BZ270i3NRVE..B401201909-202207

STD

main13101-BZ270i3NRVE..B401201606-201909

STD

main13101-BZ270i3NRVE..B401..G;3NRVE..B401..5F..E202207

STD

13201ROD SUB-ASSY, CONNECTING

main13201-B9090i3NRVE..B401201606-201909

main13201-B9090i3NRVE..B401201909-202207

main13201-B9090i3NRVE..B401..G;3NRVE..B401..5F..E202207

13251PIN, PISTON

main13251-0Y030i3NRVE..B401¥710201909-202207

main13251-0Y030i3NRVE..B401..G;3NRVE..B401..5F..E¥710202207

main13251-0Y030i3NRVE..B401¥710201606-201909

13265BOLT, CONNECTING ROD

main13265-0Y020i3NRVE..B401202001-202207

main13265-0Y020i3NRVE..B401..G;3NRVE..B401..5F..E202207

main13265-21020i3NRVE..B401¥300201606-201909

13405FLYWHEEL SUB-ASSY

main13405-BZ150i3NRVE..B401..5F201909-202207

main13405-BZ150i3NRVE..B401..5F202207

main13405-BZ150i3NRVE..B401..5F201606-201909

13411CRANKSHAFT

main13401-BZ060i3NRVE..B401201909-202207

main13401-BZ060i3NRVE..B401..G;3NRVE..B401..5F..E202207

main13401-BZ060i3NRVE..B401201606-201909

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main9004A-25035i3NRVE..B401..5F201909-202207

main9004A-25035i3NRVE..B401..5F202207

main9004A-25035i3NRVE..B401..5F201606-201909

13453GEAR, FLYWHEEL RING

main13453-87Z03i3NRVE..B401..5F¥3,510201909-202207

main13453-87Z03i3NRVE..B401..5F¥3,510202207

main13453-87Z03i3NRVE..B401..5F¥3,510201606-201909

13471PULLEY, CRANKSHAFT

main13470-0Y020i3NRVE..B401..G;3NRVE..B401..5F..E202207

main13470-0Y020i3NRVE..B401201606-201909

main13470-0Y020i3NRVE..B401201909-202207

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-T0444i3NRVE..B401201612-201909

sub90119-T0529

main90119-T0444i3NRVE..B401201909-202207

sub90119-T0529

main90119-T0444i3NRVE..B401..G;3NRVE..B401..5F..E202207

sub90119-T0529

main90119-T0529i3NRVE..B401201606-201611

sub90119-T0444

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0Y040i3NRVE..B401¥1,350201909-202207

main13521-0Y040i3NRVE..B401..G;3NRVE..B401..5F..E¥1,350202207

main13521-0Y040i3NRVE..B401¥1,350201606-201909

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04001i3NRVE..B401¥80201909-202207

main90280-04001i3NRVE..B401..G;3NRVE..B401..5F..E¥80202207

main90280-04001i3NRVE..B401¥80201606-201909

9004A10200

main9004A-10200¥100

17 parts on this diagram · 1 diagram in section
