Toyota CALYA — CONSOLE BOX & BRACKET

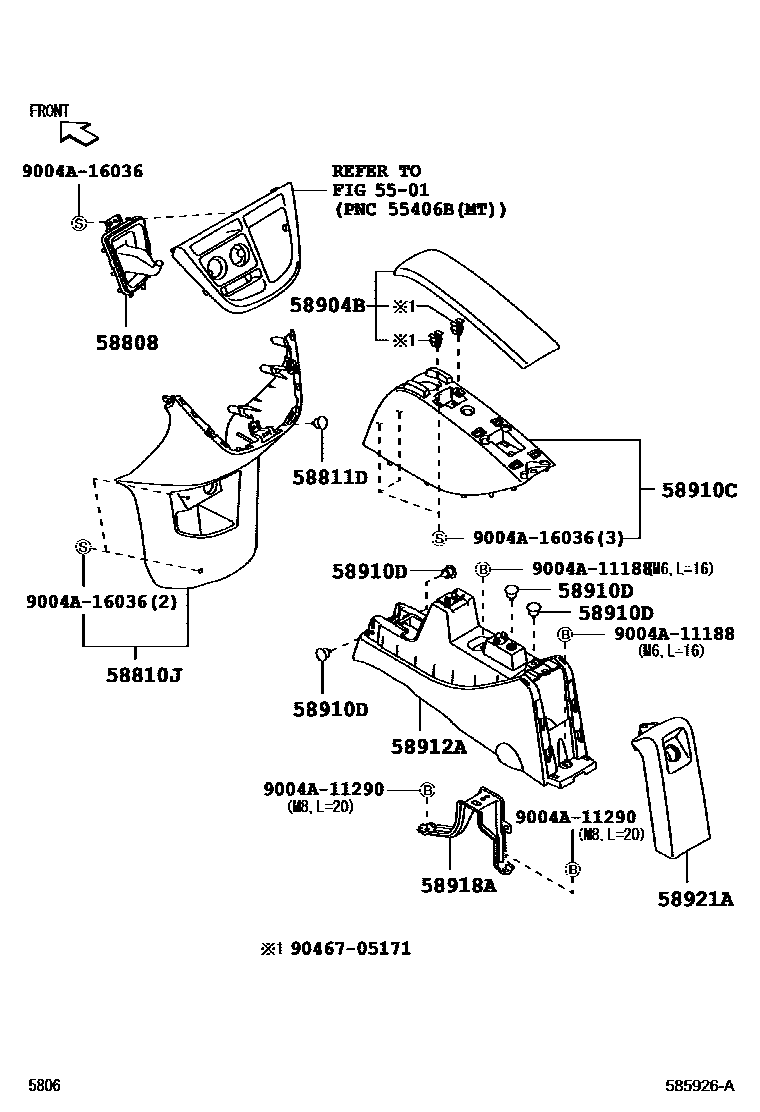

Parts diagram
5501
58808COVER SUB-ASSY, SHIFTING HOLE
main58840-BZ130-B0i201606-201909
DK.GRAY,TRIM4#
main58840-BZ130-B0i201909-202207
DK.GRAY,TRIM4#
main58840-BZ130-B0i202207
DK.GRAY,TRIM4#
58810JBOX ASSY, CONSOLE
main58810-BZ030-B0i202207
DK.GRAY,TRIM4#
main58810-BZ030-B0i201909-202207
DK.GRAY,TRIM4#
main58810-BZ040-B0i201606-201909
DK.GRAY,TRIM4#
main58810-BZ040-B0i201909-202207
DK.GRAY,TRIM4#
main58810-BZ040-B0i202207
DK.GRAY,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
main90044-67579-B0i201606-201702
DK.GRAY
main90044-67579-C2i201909-202207
BLACK
main90044-67579-C2i202207
BLACK
main90044-67579-C2i201702-201909
BLACK
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58904-BZ010-E0i201606-201909
BROWN,TRIM4#
main58904-BZ010-E1i201909-202207
DARK BROWN,TRIM4#
main58904-BZ010-E2i202207
DARK BROWN,TRIM4#
58910CBOX ASSY, CONSOLE, REAR
main58910-BZ050-B0i202207
DK.GRAY,TRIM4#
main58910-BZ050-B0i201606-201909
DK.GRAY,TRIM4#
main58910-BZ050-B0i201909-202207
DK.GRAY,TRIM4#
58910DCLIP(FOR CONSOLE BOX)
main90044-67579-B0i201606-201702
DK.GRAY
main90044-67579-C2i201909-202207
BLACK
main90044-67579-C2i202207
BLACK
main90044-67579-C2i201702-201909
BLACK
58912ABOX, REAR CONSOLE
main58911-BZ100-B0i201909-202207
DK.GRAY,TRIM4#
main58911-BZ100-B0i202207
DK.GRAY,TRIM4#
main58911-BZ100-B0i201606-201909
DK.GRAY,TRIM4#
58918ABRACKET, BOX SUPPORT
main58918-BZ010i201909-202207
main58918-BZ010i202207
main58918-BZ010i201606-201909
58921APANEL, REAR CONSOLE, UPPER
main58921-BZ010-B0i201909-202207
DK.GRAY,TRIM4#
main58921-BZ010-B0i202207
DK.GRAY,TRIM4#
main58921-BZ010-B0i201606-201909
DK.GRAY,TRIM4#
9004A11188
main9004A-11188¥110
9004A11290
main9004A-11290
9004A16036
main9004A-16036¥110
9046705171
main90467-05171¥60

14 parts on this diagram · 2 diagrams in section
