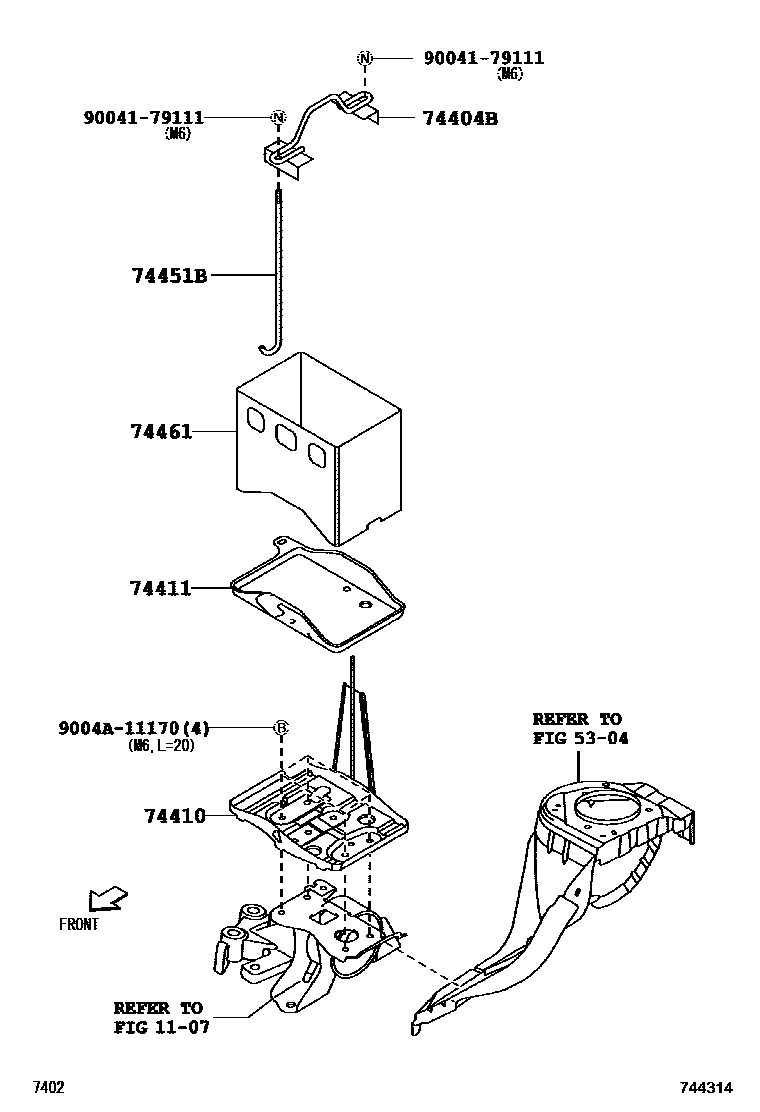

Toyota CALYA — BATTERY CARRIER

1107

5304

74404BCLAMP SUB-ASSY, BATTERY

main74404-BZ170iB401201606-202207

74410CARRIER ASSY, BATTERY

main74410-BZ050iB401201606-202207

74411CARRIER, BATTERY

main74411-BZ110iB401201606-202207

74451BBOLT, BATTERY CLAMP

main74451-87Z07iB401201606-202207

74461COVER, BATTERY

main74405-BZ061iB401201606-202207

9004179111

main90041-79111¥230

9004A11170

main9004A-11170

9 parts on this diagram · 1 diagram in section
