Toyota C+POD — MAT & CARPET

0001 1 0002 1

58116CPANEL, FRONT FLOOR REAR UPPER SIDE, RH

main58116-55010iRMV1#¥9,600202012

58126CPANEL, FRONT FLOOR REAR UPPER SIDE, LH

main58126-55010iRMV1#¥7,900202012

58191AFOOTREST, FRONT FLOOR, RH

main58191-55010iRMV1#¥3,390202012

58198BCLIP, FOOTREST, NO.1

main58198-20210iRMV1#¥250202012

58441NCLIP(FOR BATTERY SERVICE HOLE COVER)

main90467-06165-C3iRMV1#202012

BLACK

sub90467-06165¥160

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-55010-C0iRMV1#202012

BLACK,TRIM1#

58514GMAT, FLOOR, REAR RH

main58514-55010iRMV1#¥3,520202012-202106

main58514-55011iRMV1#¥3,520202106

58515FMAT, FLOOR, REAR LH

main58515-55010iRMV1#¥4,490202012-202106

main58515-55011iRMV1#¥4,490202106

58520CCLIP(FOR FRONT FLOOR CARPET)

main64726-26010-C2iRMV1#202012

BLACK

58521BHOOK, FLOOR CARPET

main58521-55030iRMV1#¥270202012

58694BPLATE, MAT SET, UPPER

main58694-78010iRMV1#¥130202012

58698CPLATE, MAT SET, LOWER

main58698-78010iRMV1#¥230202012

64779CSTOPPER, SPARE WHEEL COVER

main64779-26010iRMV1#¥220202012

9046707220

main90467-07220¥80

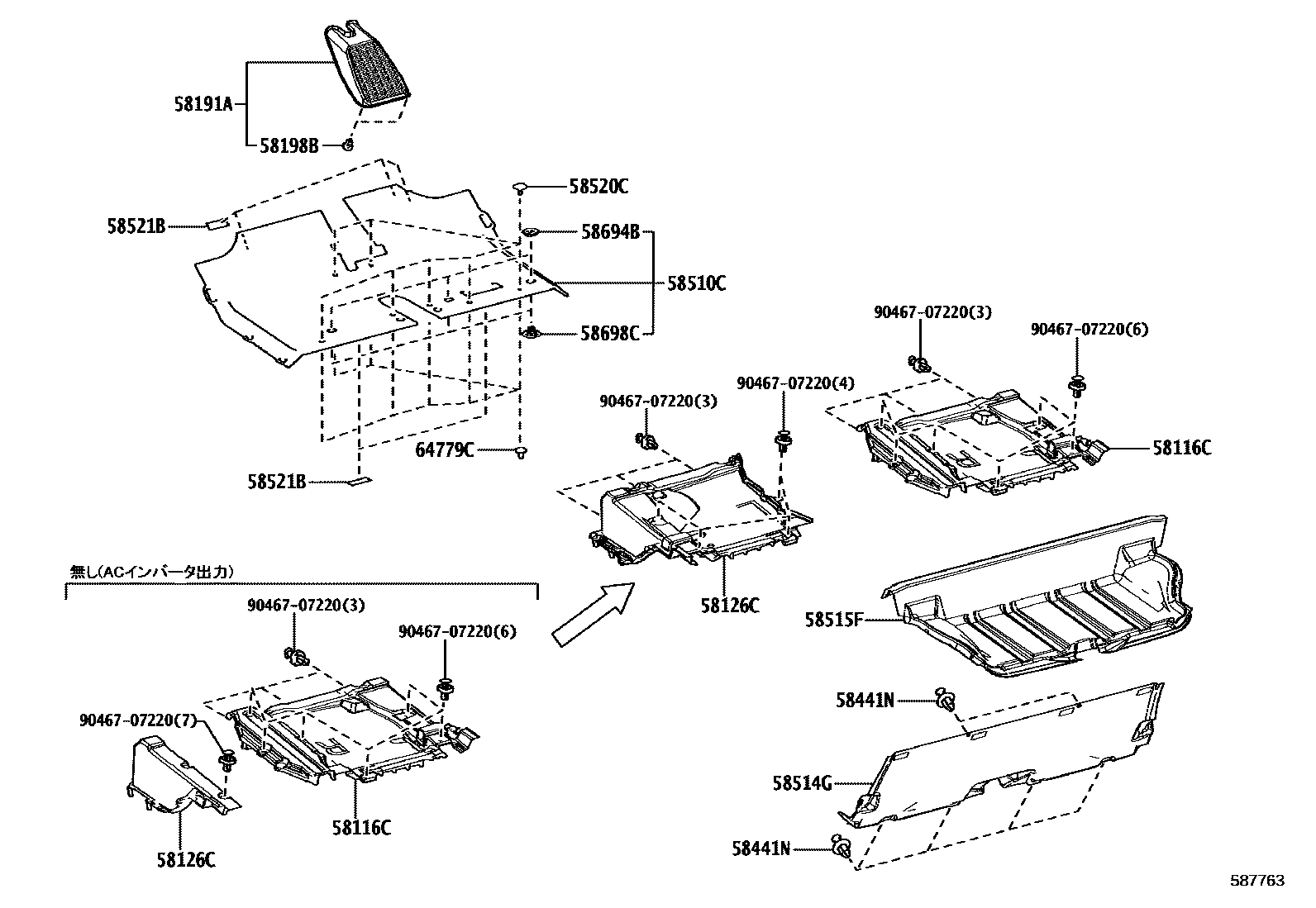

14 parts on this diagram · 2 diagrams in section
