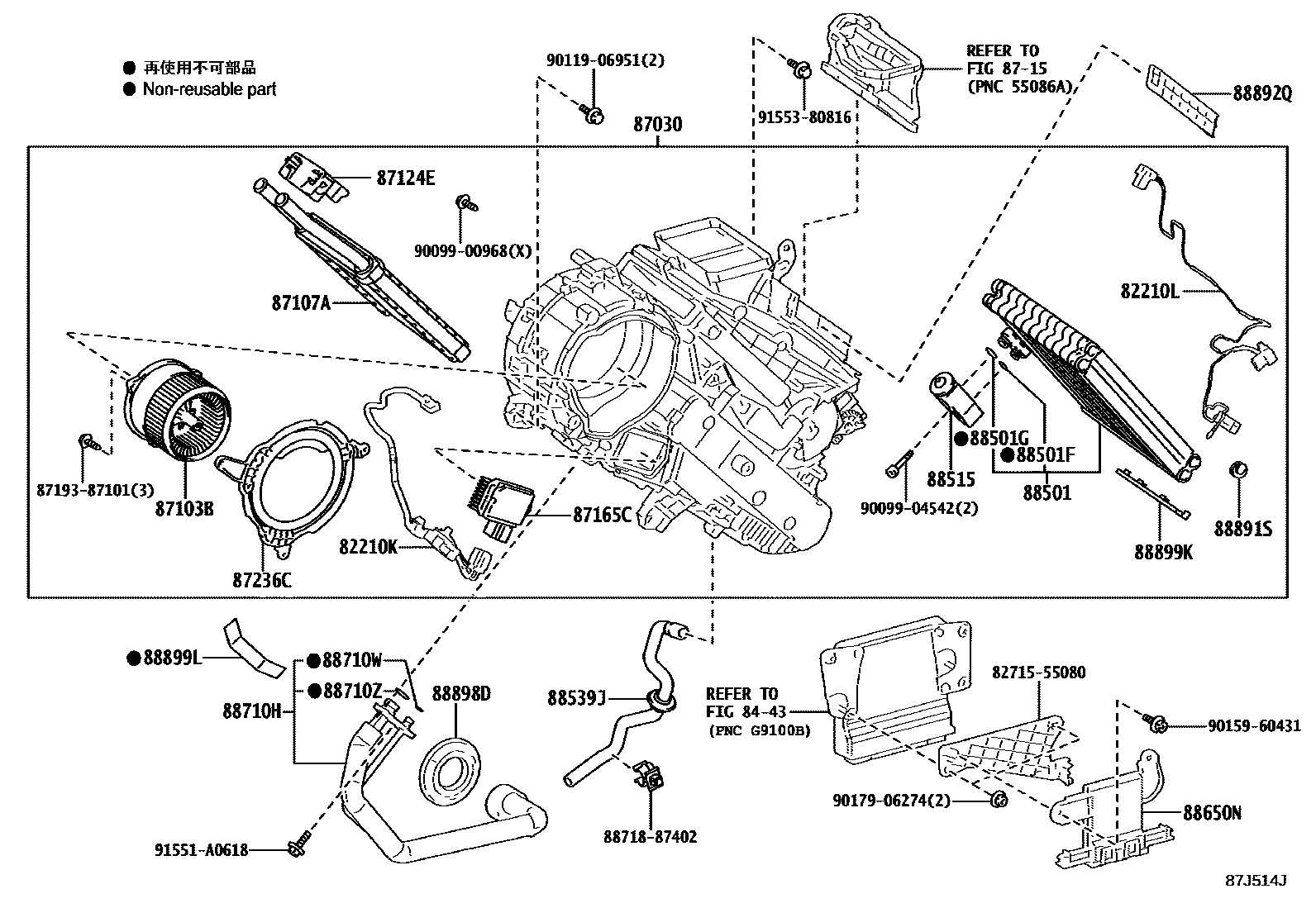

Toyota C+POD — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
82210LHARNESS ASSY, AIR CONDITIONER, NO.2
8443
87030BLOWER ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124ECLAMP, HEATER
8715
87165CCONTROL, BLOWER MOTOR
87236CCOVER, HEATER BLOWER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88650NAMPLIFIER ASSY, AIR CONDITIONER
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88710WRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710ZRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88891SCOVER, COOLER, NO.1
88892QPLATE, COOLER
88898DGROMMET
88899KPLATE, COVER
88899LPARTS, COOLING UNIT
8271555080BRACKET,WIRING HARNESS CLAMP
8719387101
8871887402PIPE, COOLER REFRIGERANT SUCTION, NO.2
9009900968
main90099-00968
9009904542
9011906951
9015960431
9017906274
91551A0618
9155380816
34 parts on this diagram · 1 diagram in section
