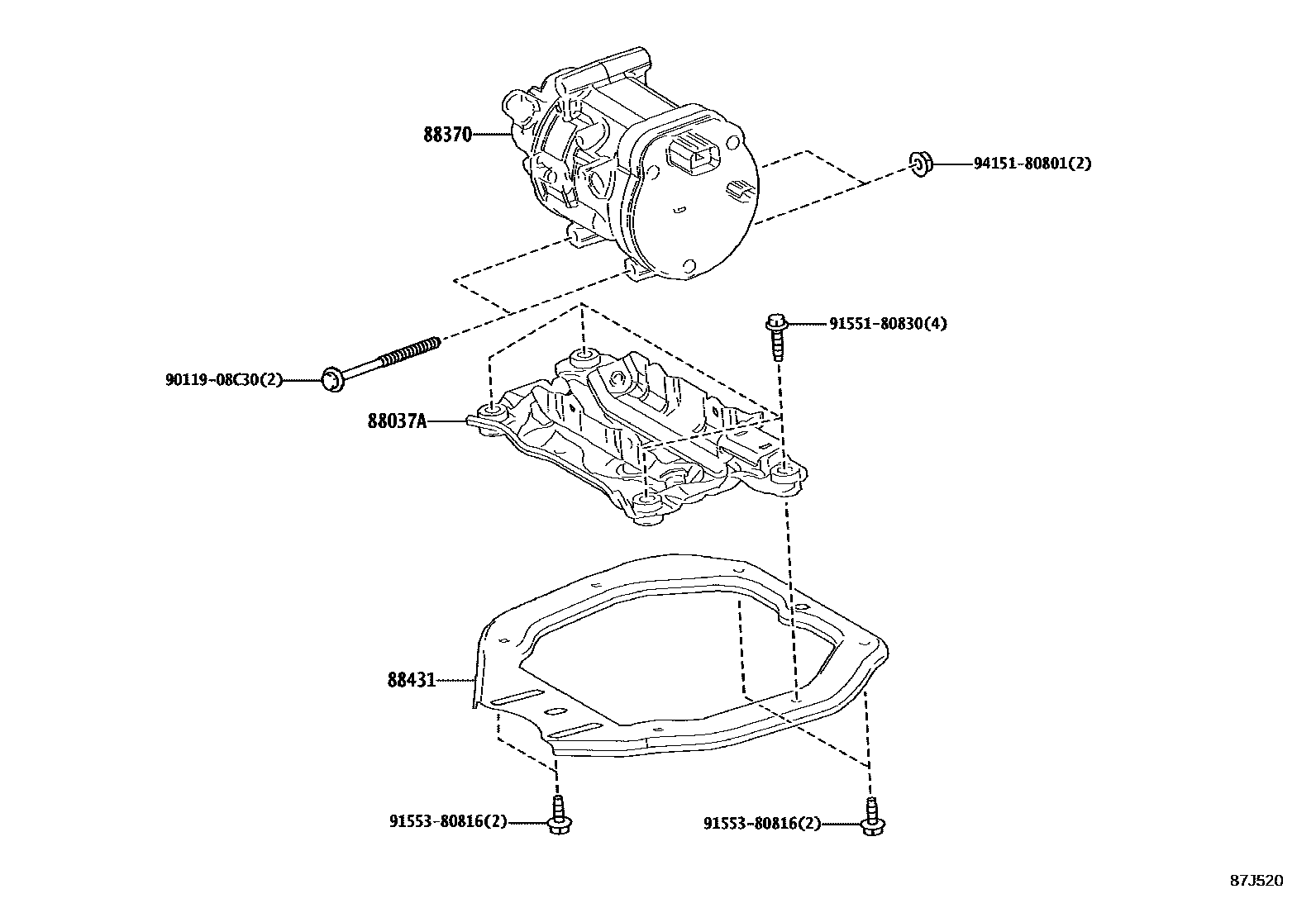

Toyota C+POD — HEATING & AIR CONDITIONING - COMPRESSOR

88037ABRACKET SET,COMPRESSOR MOUNTING

main88037-55010iRMV1#..G¥9,100202012

88370COMPRESSOR ASSY, W/MOTOR

main88370-47092iRMV1#..G202012

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-55020iRMV1#..G¥2,790202012

9011908C30

main90119-08C30¥210

9155180830

main91551-80830¥80

9155380816

main91553-80816¥80

9415180801

main94151-80801¥80

7 parts on this diagram · 1 diagram in section
