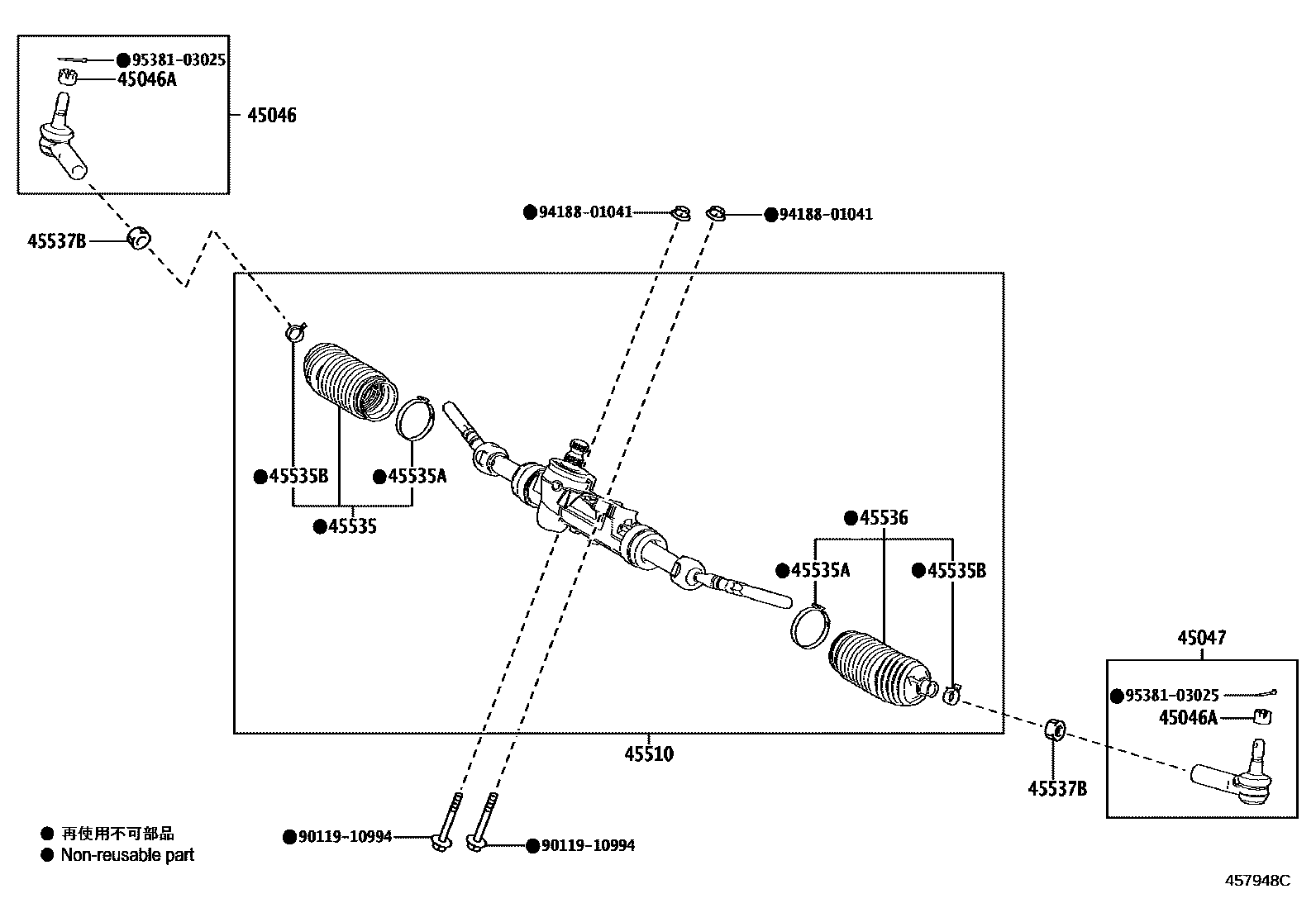

Toyota C+POD — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59065iRMV1#¥2,440202012

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iRMV1#¥130202012

45047END SUB-ASSY, TIE ROD, LH

main45046-59065iRMV1#¥2,440202012

45510GEAR ASSY, STEERING

main45510-55020iRMV1#¥32,800202012

45535BOOT, STEERING RACK, NO.1

main45535-59215iRMV1#¥870202012

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-55010iRMV1#¥220202012

45535BCLIP(FOR STEERING RACK BOOT)

main45537-55010iRMV1#¥220202012

45536BOOT, STEERING RACK, NO.2

main45535-59215iRMV1#¥870202012

45537BNUT, RACK END LOCK

main90179-14019iRMV1#¥130202012

9011910994

main90119-10994¥190

9418801041

main94188-01041¥100

9538103025

main95381-03025¥130

12 parts on this diagram · 1 diagram in section
