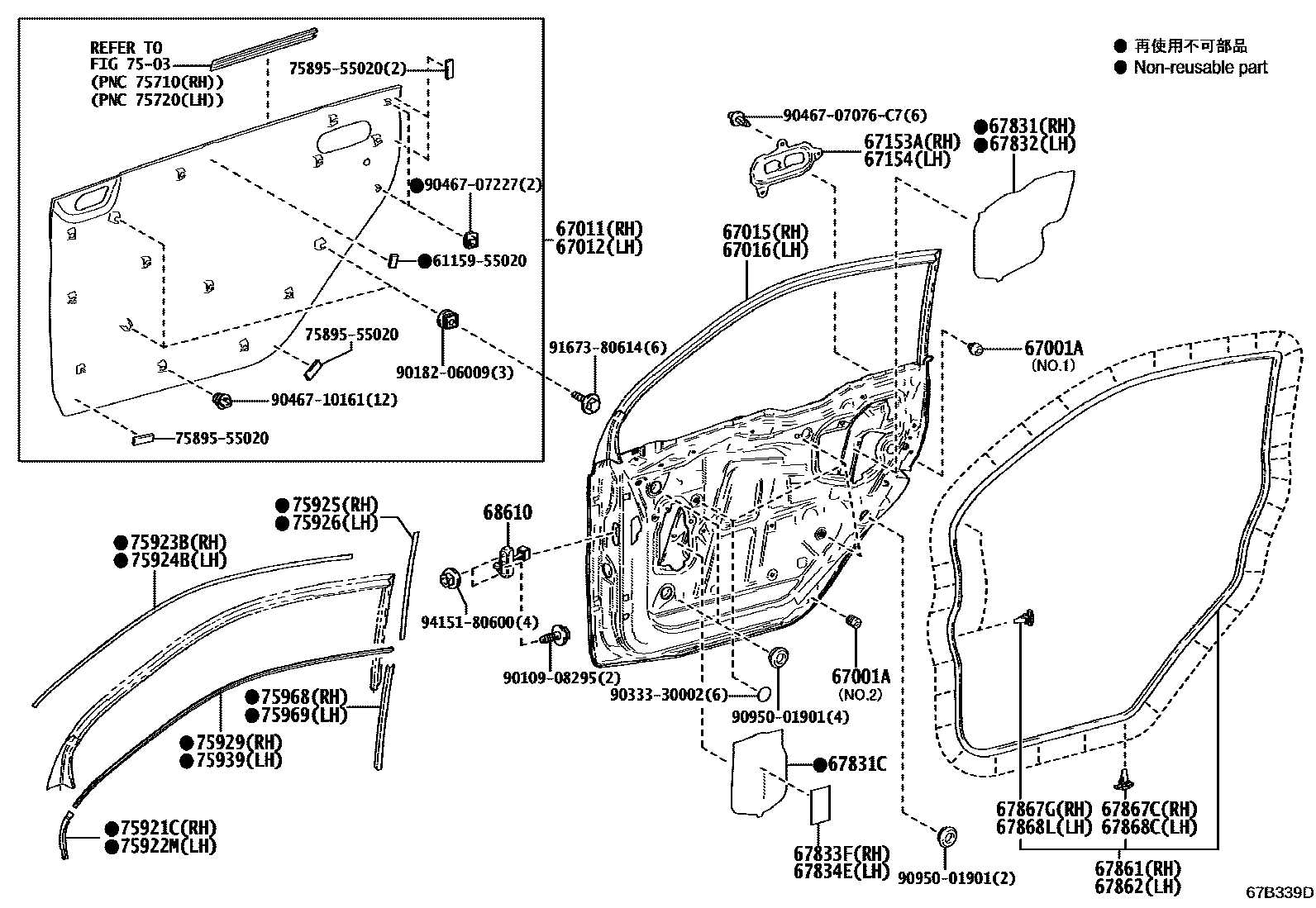

Toyota C+POD — FRONT DOOR PANEL & GLASS
67011PANEL SUB-ASSY, FRONT DOOR, OUTSIDE RH
67012PANEL SUB-ASSY, FRONT DOOR, OUTSIDE LH
67015PANEL SUB-ASSY, FRONT DOOR, INSIDE RH
67016PANEL SUB-ASSY, FRONT DOOR, INSIDE LH
67153AREINFORCEMENT, FRONT DOOR INSIDE PANEL, REAR RH
67154REINFORCEMENT, FRONT DOOR INSIDE PANEL, REAR LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831CCOVER, FRONT DOOR SERVICE HOLE
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833FSEAL, FRONT DOOR SERVICE HOLE, NO.1 RH
67834ESEAL, FRONT DOOR SERVICE HOLE, NO.1 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
68610CHECK ASSY, FRONT DOOR
7503
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75923BTAPE, BLACK OUT, NO.2 RH
75924BTAPE, BLACK OUT, NO.2 LH
75925TAPE, BLACK OUT, NO.3 RH
75926TAPE, BLACK OUT, NO.3 LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
6115955020COVER, FRONT PILLAR SERVICE HOLE
7589555020RETAINER, LUGGAGE DOOR MOULDING, NO.3
9010908295
9018206009
9033330002
9046707076C7
main90467-07076C7
9046707227
9046710161
9095001901
9167380614
9415180600
41 parts on this diagram · 3 diagrams in section
