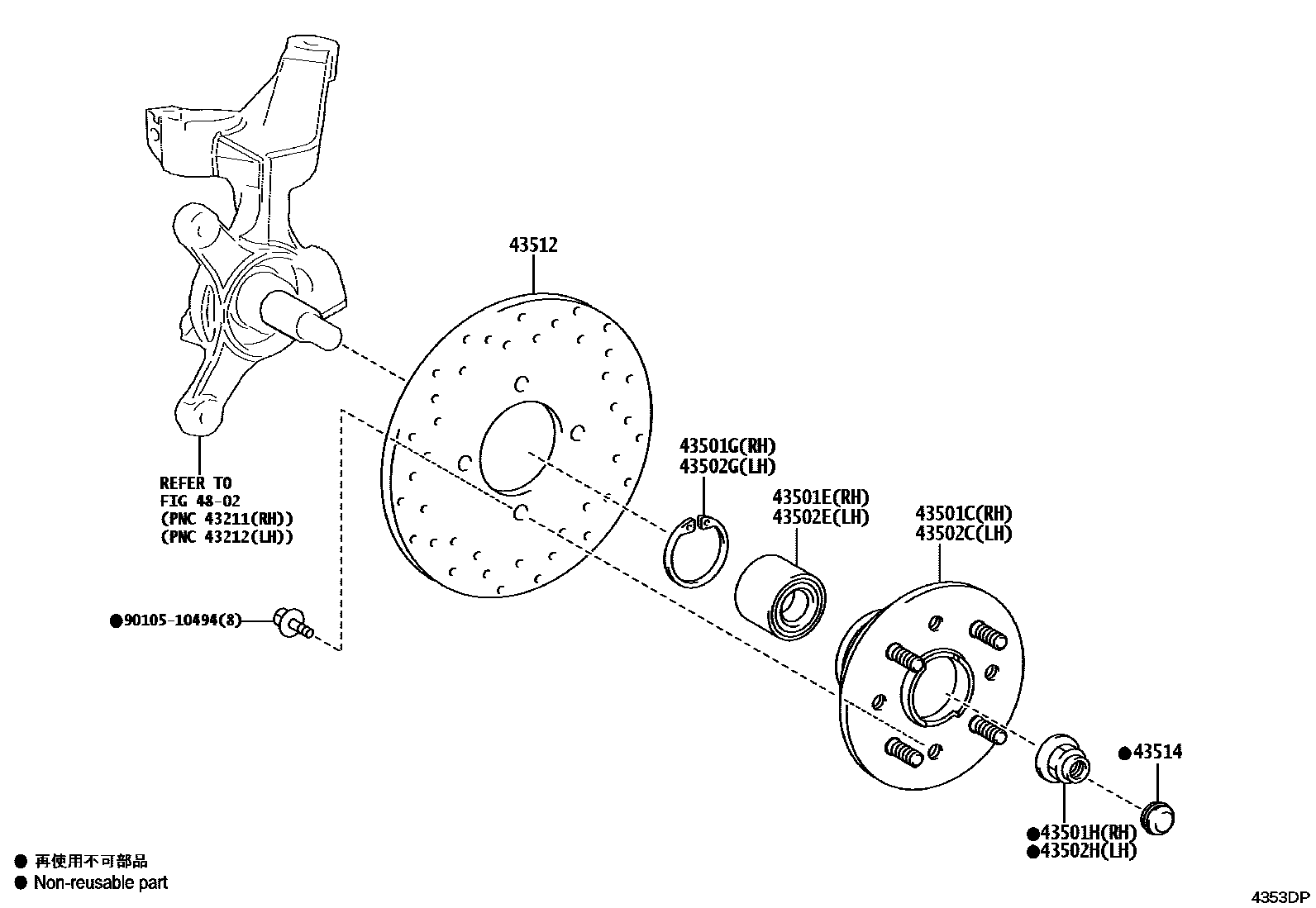

Toyota C+POD — FRONT AXLE HUB
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501EBEARING (FOR FRONT AXLE HUB RH)
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502EBEARING (FOR FRONT AXLE HUB LH)
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
43514CAP, FRONT HUB GREASE
4802
9010510494
12 parts on this diagram · 1 diagram in section
