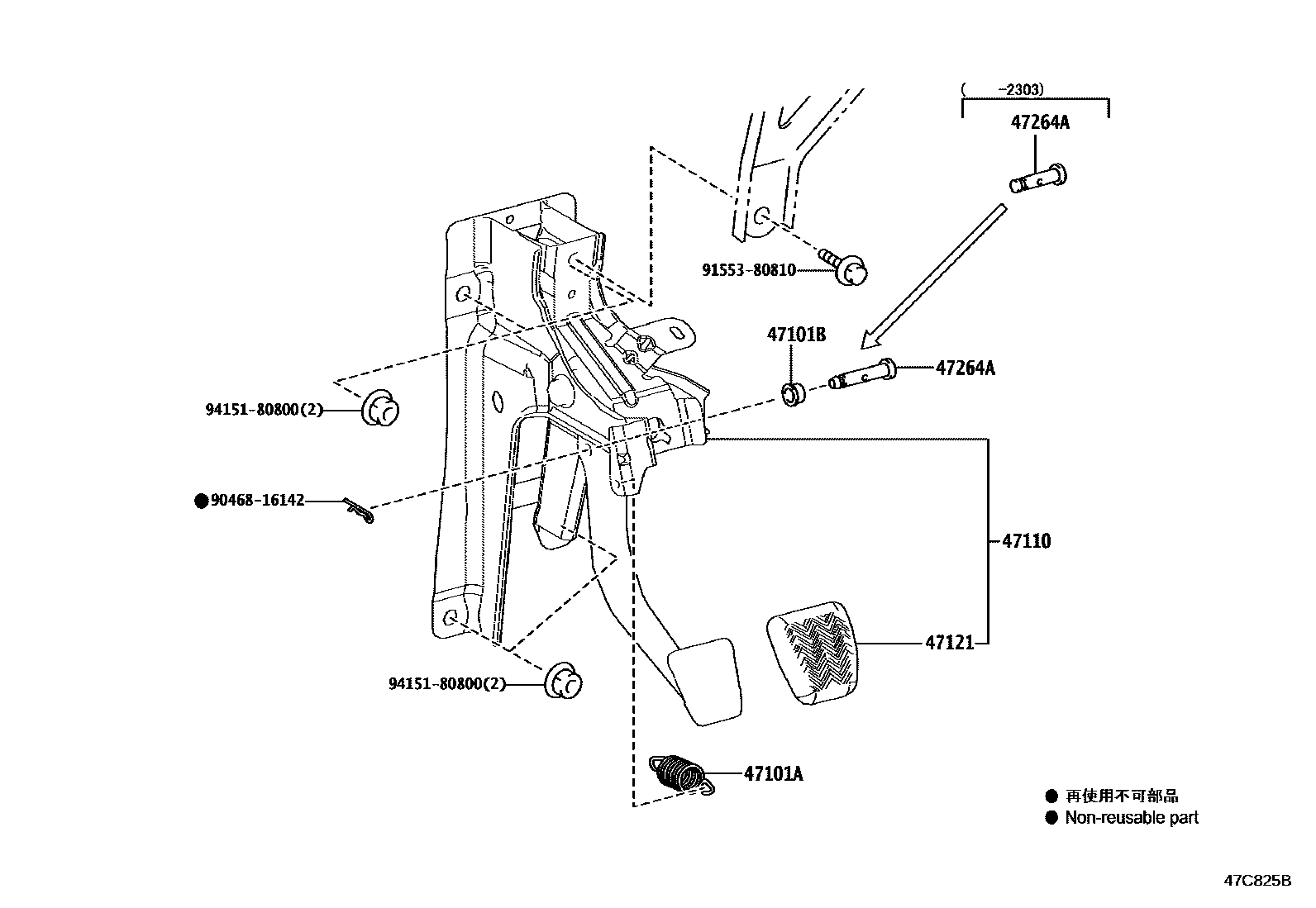

Toyota C+POD — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14082iRMV1#202012-202303

main90506-14088iRMV1#¥120202303

47101BBUSH(FOR BRAKE PEDAL)

main90386-08002iRMV1#¥240202303

47110SUPPORT ASSY, BRAKE PEDAL

main47110-55060iRMV1#¥8,700202012-202303

main47110-55061iRMV1#¥8,600202303

47121PAD, BRAKE PEDAL

main47121-12040iRMV1#¥300202012

47264APIN(FOR PUSH ROD)

main90249-08256iRMV1#¥130202012-202303

main90249-08309iRMV1#¥160202303

9046816142

main90468-16142¥70

9155380810

main91553-80810¥80

9415180800

main94151-80800¥80

8 parts on this diagram · 1 diagram in section
