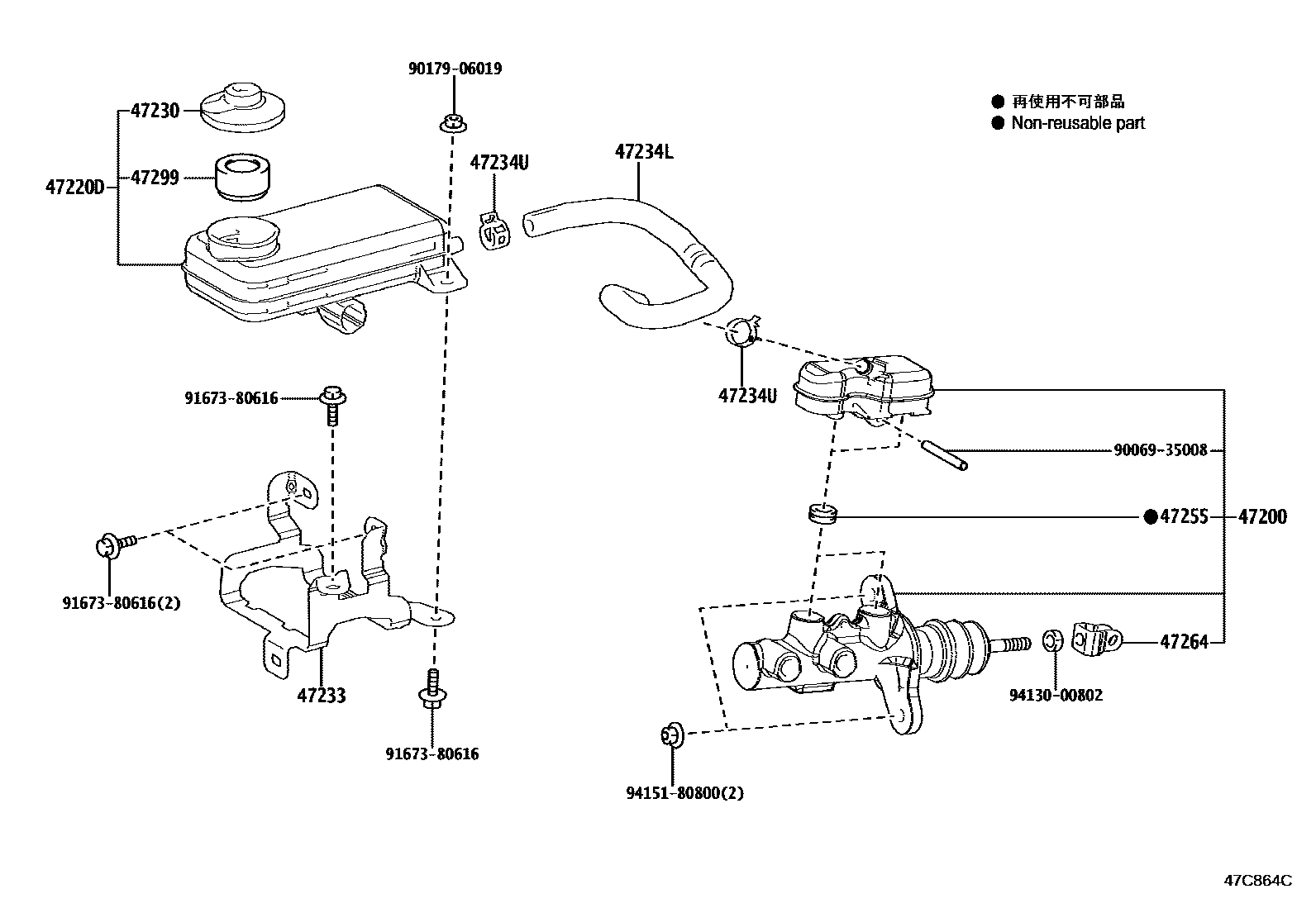

Toyota C+POD — BRAKE MASTER CYLINDER

47200CYLINDER ASSY, BRAKE MASTER

main47201-55090iRMV1#¥20,100202012

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-58020iRMV1#¥6,600202012

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iRMV1#¥540202012

47233BRACKET, RESERVOIR

main47203-55020iRMV1#¥860202012

47234LHOSE, RESERVOIR, NO.1

main47234-55040iRMV1#¥380202012

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iRMV1#¥120202012

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-55090iRMV1#¥400202012

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-55030iRMV1#¥280202012

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iRMV1#¥390202012

9006935008

main90069-35008¥100

9017906019

main90179-06019¥180

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9415180800

main94151-80800¥80

14 parts on this diagram · 1 diagram in section
