Toyota C-HR — VACUUM PIPING

0001 1 0002 1W(GPF) 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1W(GPF)

1701

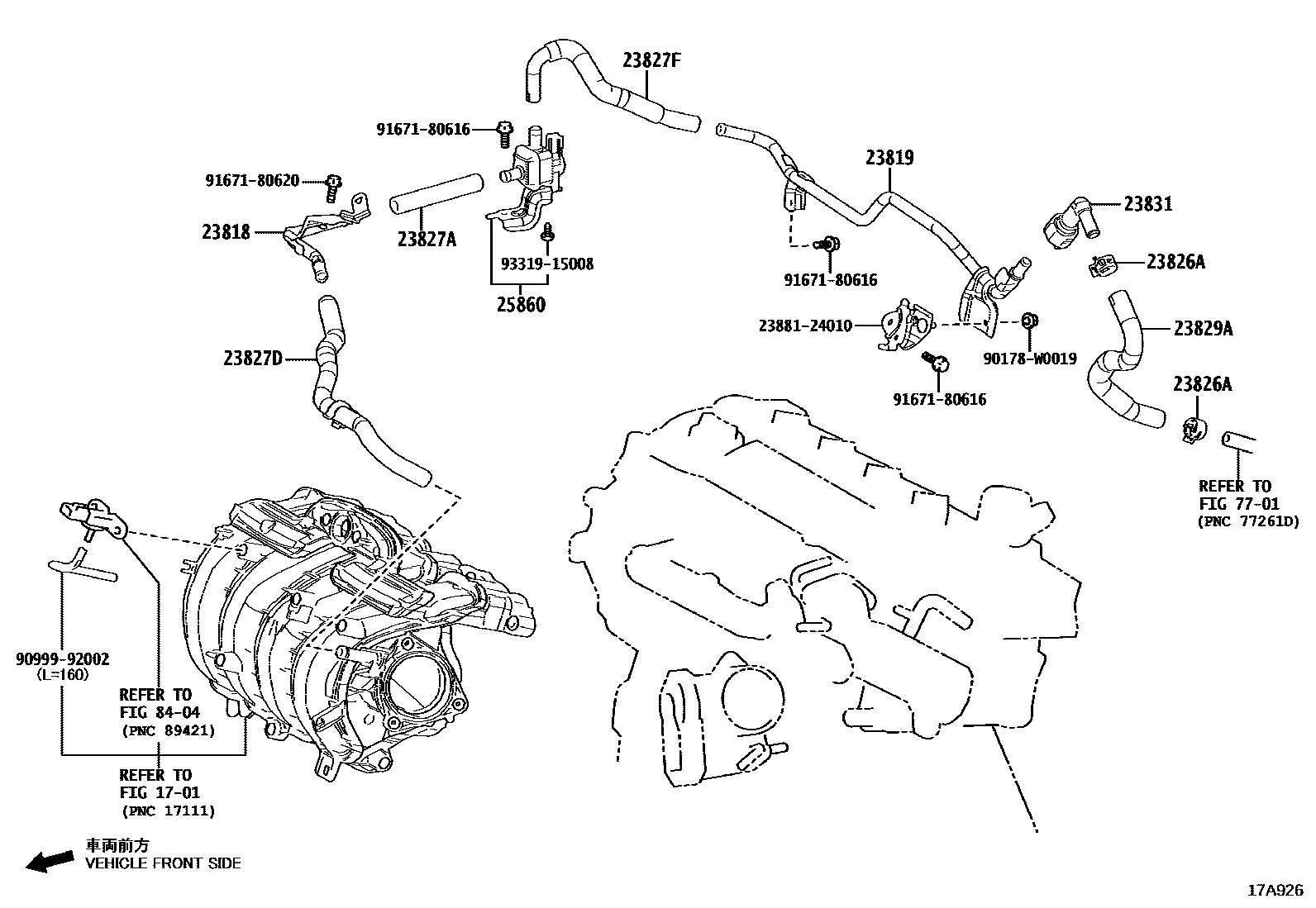

23818PIPE, FUEL VAPOR FEED

main23818-24030iM20AFXS..MAXH10¥3,030201909

main23818-37030i2ZRFXE..ZYX1#¥3,030201610-201909

main23818-47020i8NRFTS..NGX50;8NRFTS..NGX10..EUR¥3,410201610-202112

23819PIPE, FUEL VAPOR FEED, NO.2

main23819-24010iM20AFXS..MAXH10¥7,100201909

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T300i2ZRFXE..ZYX1#201707-201909

(L)

main23826-0T300i2ZRFXE..ZYX10201610-201707

main23826-37220i3ZRFAE..ZGX10¥1,700201610-201909

main23826-37250i2ZRFXE..ZYX10¥1,300201707-201909

(J)

main23826-47090i8NRFTS..NGX10,50¥630201610-202112

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901iM20AFXS..MAXH10¥120201610-202112

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0T050i2ZRFXE..ZYX1#201707-201909

(L)

main23827-0T050i2ZRFXE..ZYX10201610-201707

main23827-24010iM20AFXS..MAXH10¥700201909

main23827-37070i2ZRFXE..ZYX10¥2,340201707-201909

(J)

main23827-47130i8NRFTS..NGX10..RUS¥700201610-202112

23827DHOSE, FUEL VAPOR FEED, NO.2

main23826-24060iM20AFXS..MAXH10¥2,360201909

23827FHOSE, FUEL VAPOR FEED, NO.3

main23828-24010iM20AFXS..MAXH10¥1,940201909

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-47010i8NRFTS..NGX10..RUS¥1,250201610-202112

23829AHOSE, FUEL VAPOR FEED

main23826-0T240i3ZRFAE..ZGX10201610-201909

main23826-0T260i2ZRFXE..ZYX10201610-202207

main23826-0T260i2ZRFXE..ZYX1#202207

GREEN PAINTED

main23826-0Y080i8NRFTS..NGX10,50201610-201712

main23826-0Y350i8NRFTS..NGX10,50201712-202207

main23826-0Y350i8NRFTS..NGX10,50..CVT202207

GRAY&YELLOW PAINTED

main23826-24120iM20AFXS..MAXH10¥1,900202207

PAINTED=WHITE

main23826-37241i2ZRFXE..ZYX1#¥1,170202207

WHITE PAINTED

main23826-47150i8NRFTS..NGX10,50..CVT¥1,710202207

WHITE&GREEN PAINTED

main23826-F2170iM20AFXS..MAXH10201909

PAINTED=RED

23831CONNECTOR, FUEL VAPOR FEED, NO.1

main23831-24010iM20AFXS..MAXH10¥780201909

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24060iM20AFXS..MAXH10¥3,840201909

main25860-47050i8NRFTS..NGX50;8NRFTS..NGX10..EUR¥3,840201610-202112

7701

8404

2388124010BRACKET, FUEL HOSE

main23881-24010¥480

90178W0019

main90178-W0019¥110

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

9167180620

main91671-80620¥60

9331915008

main93319-15008¥170
