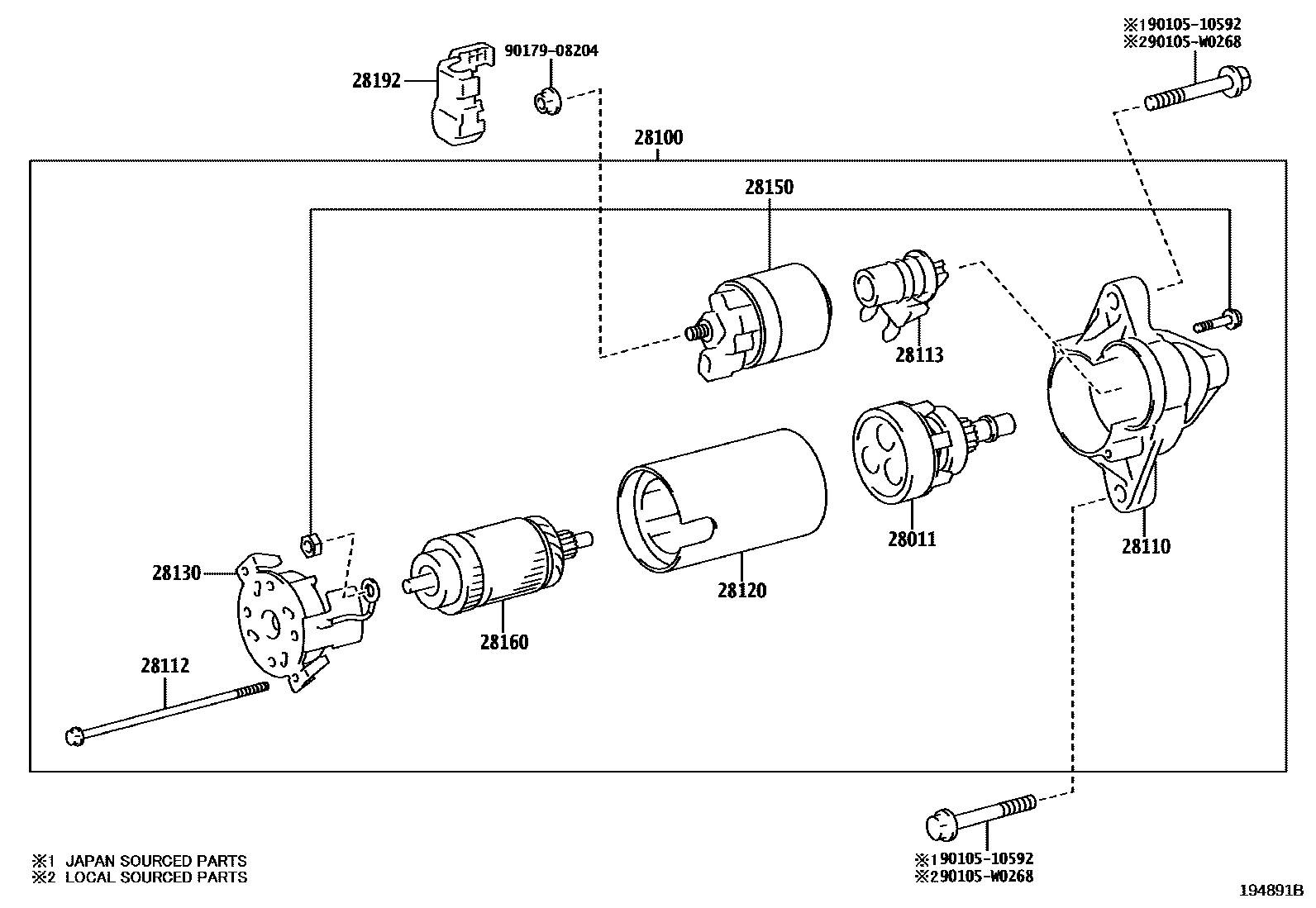

Toyota C-HR — STARTER

0001 112V 1.2KW,1.8KW 0002 112V 1.7KW 0003 112V 1.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0T350i3ZRFAE..ZGX10201909

main28011-0T350i3ZRFAE..ZGX10201610-201909

main28011-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28011-0Y270i8NRFTS..NGX10,50..EUR201909

main28011-0Y360i8NRFTS..NGX10,50..LHD..CVT..EUR201610-201909

SUB COLD AREA SPEC

main28011-0Y360i8NRFTS..NGX10,50..RUS201610-201909

COLD AREA SPEC

main28011-0Y360i8NRFTS..NGX10..RUS201909-202112

main28011-0Y360i8NRFTS..NGX10..LHD..CVT;8NRFTS..NGX50..(G,K,N)..EUR201909

SUB COLD AREA SPEC

main28011-0Y360i8NRFTS..NGX10..LHD..CVT;8NRFTS..NGX50..(G,K,N)..EUR201909

COLD AREA SPEC

28100STARTER ASSY

main28100-0T350i3ZRFAE..ZGX10201909

12V 1.2KW

main28100-0T350i3ZRFAE..ZGX10201610-201909

12V 1.2KW

main28100-0Y270i8NRFTS..NGX10,50..EUR¥60,400201909

12V 1.2KW

main28100-0Y270i8NRFTS..NGX10,50..EUR¥60,400201610-201909

12V 1.2KW

main28100-0Y360i8NRFTS..NGX10..LHD..CVT;8NRFTS..NGX50..(G,K,N)..EUR¥80,100201909

12V 1.8KW,COLD AREA SPEC

main28100-0Y360i8NRFTS..NGX10,50..RUS¥80,100201610-201909

12V 1.8KW

main28100-0Y360i8NRFTS..NGX10,50..RUS¥80,100201610-201909

12V 1.8KW,COLD AREA SPEC

main28100-0Y360i8NRFTS..NGX10,50..RUS¥80,100201610-201909

12V 1.8KW,SUB COLD AREA SPEC

main28100-0Y360i8NRFTS..NGX10..RUS¥80,100201909-202112

12V 1.8KW

main28100-0Y360i8NRFTS..NGX50..RUS¥80,100201909

12V 1.8KW

main28100-0Y360i8NRFTS..NGX50..RUS¥80,100201909

12V 1.8KW,SUB COLD AREA SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-0T350i3ZRFAE..ZGX10201610-201909

main28110-0T350i3ZRFAE..ZGX10201909

main28110-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28110-0Y270i8NRFTS..NGX10,50..EUR201909

main28110-0Y360i8NRFTS..NGX10..LHD..CVT;8NRFTS..NGX50..(G,K,N)..EUR201909

COLD AREA SPEC

main28110-0Y360i8NRFTS..NGX10,50..RUS201610-201909

COLD AREA SPEC

main28110-0Y360i8NRFTS..NGX10,50..RUS201610-201909

SUB COLD AREA SPEC

main28110-0Y360i8NRFTS..NGX10..RUS201909-202112

main28110-0Y360i8NRFTS..NGX50..RUS201909

SUB COLD AREA SPEC

28112BOLT, HOUSING SET

main28112-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28112-0Y270i8NRFTS..NGX10,50..EUR201909

main28112-0Y360i8NRFTS..NGX10,50..LHD..CVT..EUR201610-201909

COLD AREA SPEC

main28112-0Y360i8NRFTS..NGX10,50..LHD..CVT..EUR201610-201909

SUB COLD AREA SPEC

main28112-0Y360i8NRFTS..NGX10..LHD..CVT;8NRFTS..NGX50..(G,K,N)..EUR201909

COLD AREA SPEC

main28112-0Y360i8NRFTS..NGX10..LHD..CVT;8NRFTS..NGX50..(G,K,N)..EUR201909

SUB COLD AREA SPEC

main28112-0Y360i8NRFTS..NGX10..RUS201909-202112

28113LEVER, STARTER PINION DRIVE

main28113-0T310i3ZRFAE..ZGX10201909

main28113-0T310i3ZRFAE..ZGX10201610-201909

main28113-0Y270i8NRFTS..NGX10,50..EUR201909

main28113-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28113-0Y360i8NRFTS..NGX10,50..LHD..CVT..EUR201610-201909

SUB COLD AREA SPEC

main28113-0Y360i8NRFTS..NGX10,50..RUS201610-201909

COLD AREA SPEC

main28113-0Y360i8NRFTS..NGX10..RUS201909-202112

main28113-0Y360i8NRFTS..NGX50..RUS201909

COLD AREA SPEC

main28113-0Y360i8NRFTS..NGX50..RUS201909

SUB COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-0T350i3ZRFAE..ZGX10201909

main28120-0T350i3ZRFAE..ZGX10201610-201909

main28120-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28120-0Y270i8NRFTS..NGX10,50..EUR201909

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0T350i3ZRFAE..ZGX10201909

main28130-0T350i3ZRFAE..ZGX10201610-201909

main28130-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28130-0Y270i8NRFTS..NGX10,50..EUR201909

28150SWITCH ASSY, MAGNET STARTER

main28150-0T350i3ZRFAE..ZGX10201610-201909

main28150-0T350i3ZRFAE..ZGX10201909

main28150-0Y270i8NRFTS..NGX10..RUS201909-202112

main28150-0Y270i8NRFTS..NGX50;8NRFTS..NGX10..EUR201909

main28150-0Y270i8NRFTS..NGX10,50201610-201909

28160ARMATURE ASSY, STARTER

main28160-0T350i3ZRFAE..ZGX10201610-201909

main28160-0T350i3ZRFAE..ZGX10201909

main28160-0Y270i8NRFTS..NGX10,50..EUR201610-201909

main28160-0Y270i8NRFTS..NGX10,50..EUR201909

28192COVER, STARTER

main28192-47010i8NRFTS..NGX10,50¥1,190201610-201909

9010510592

main90105-10592¥160

90105W0268

main90105-W0268

9017908204

main90179-08204¥140

13 parts on this diagram · 3 diagrams in section
