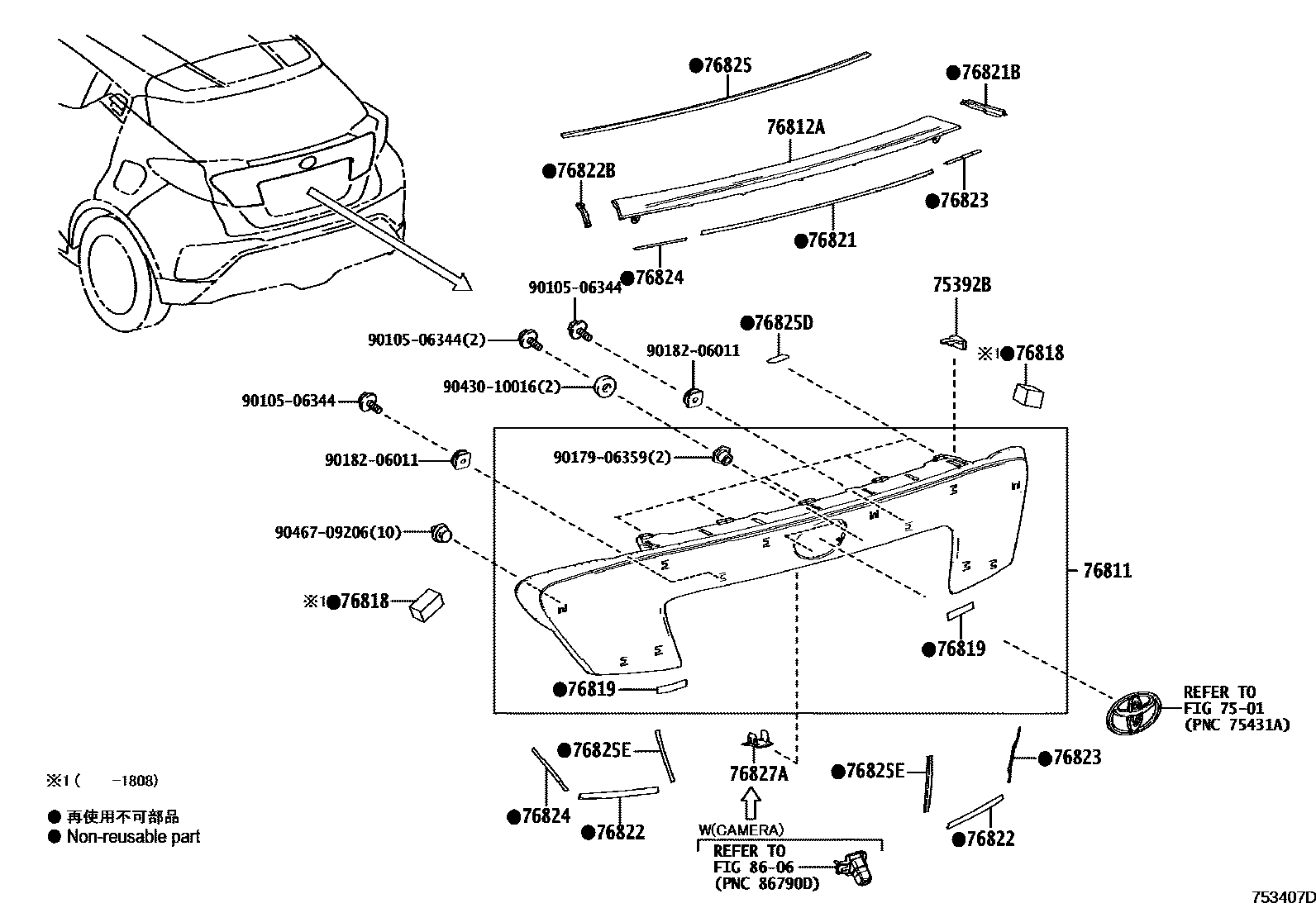

Toyota C-HR — REAR MOULDING
7501
75392BRETEINER, OUTSIDE MOULDING, NO.1
76811GARNISH, BACK DOOR, OUTSIDE
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76818PAD, BACK DOOR OUTSIDE GARNISH
76819SEAL, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76827ARETAINER, BACK DOOR GARNISH, NO.2
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-RADIO LESS & 2SPEAKER
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO
AUDIO-RADIO LESS
AUDIO-CD & USB & *BT, FOR LATIN AMERICA
8606
9010506344
9017906359
9018206011
9043010016
9046709206
22 parts on this diagram · 2 diagrams in section
