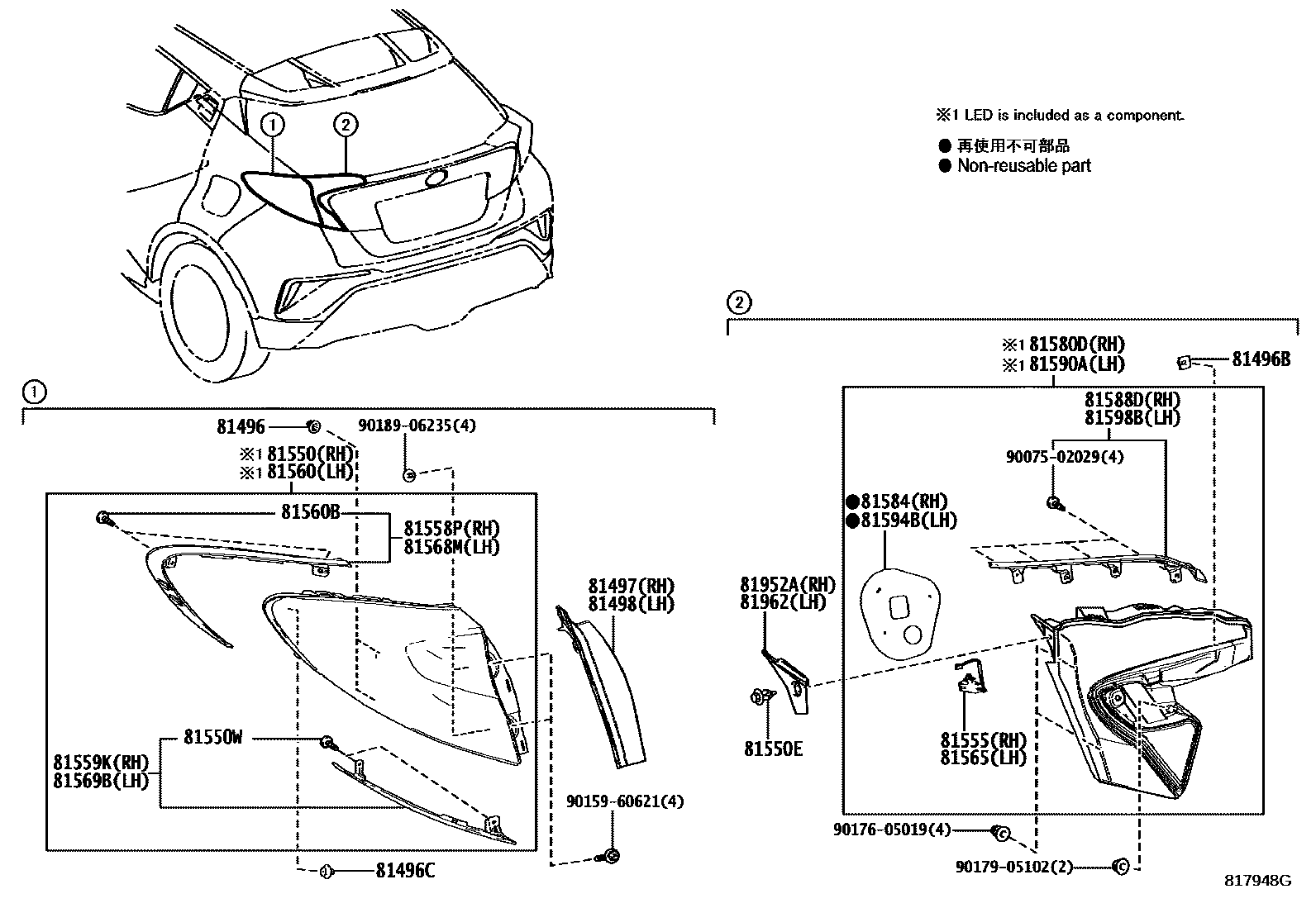

Toyota C-HR — REAR COMBINATION LAMP

0001 1LED TYPE(BACK UP LAMP & TURN 0002 1BULB TYPE(BACK UP LAMP & TURN0003 1BULB TYPE(BACK UP LAMP & TURN

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNGX10,50,ZGX10,ZYX10¥70201610-202112

81496BGUIDE, REAR LAMP

main76817-26040iNGX10,50,ZGX10,ZYX10¥110201610-202112

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iNGX10..RUS¥100201610-202112

81497COVER, REAR COMBINATION LAMP, RH

main81497-F4010iNGX10..RUS201610-202112

81498COVER, REAR COMBINATION LAMP, LH

main81498-F4010iNGX10,50,ZGX10,ZYX10201610-202112

81550LAMP ASSY, REAR COMBINATION, RH

main81550-F4031iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81550-F4130iNGX10..LHD..6F..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..K201909

HEADLAMP-PROJECTOR & *AHB

main81550-F4130iNGX10..(E,G)..RUS201909-202112

HEADLAMP-PROJECTOR

main81550-F4130iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909

HEADLAMP-PROJECTOR & *AHB & *AFLS

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-05170iNGX10..RUS¥80201909-202112

81550WSCREW(FOR RR COMBINATION LAMP)

main90075-02029iNGX10,50,ZGX10,ZYX10¥70201610-201909

main90075-02051iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥60201909-202112

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81585-F4020iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81585-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909

HEADLAMP-PROJECTOR & *AHB & *AFLS

main81585-F4130iNGX10..(E,G)..RUS201909-202112

HEADLAMP-PROJECTOR

main81585-F4130iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909

HEADLAMP-PROJECTOR & *AHB

81558PGARNISH NO.1, REAR COMBINATION LAMP, RH

main81558-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main81558-F4120iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909-202112

81559KGARNISH NO.2, REAR COMBINATION LAMP, RH

main81556-F4120iNGX10..RUS201909-202112

main81559-F4010iNGX10,50,ZGX10,ZYX10201610-201909

81560LAMP ASSY, REAR COMBINATION, LH

main81560-F4031iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81560-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909

HEADLAMP-PROJECTOR & *AHB

main81560-F4130iNGX10..(E,G)..RUS201909-202112

HEADLAMP-PROJECTOR

main81560-F4130iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909

HEADLAMP-PROJECTOR & *AHB & *AFLS

81560BSCREW(FOR RR COMBINATION LAMP)

main90075-02029iNGX10,50,ZGX10,ZYX10¥70201610-201909

main90075-02051iNGX10..RUS¥60201909-202112

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81585-F4020iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81585-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909-202112

HEADLAMP-PROJECTOR

main81585-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909

HEADLAMP-PROJECTOR & *AHB

main81585-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909

HEADLAMP-PROJECTOR & *AHB & *AFLS

81568MGARNISH NO.1, REAR COMBINATION LAMP, LH

main81568-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main81568-F4120iNGX10..RUS201909-202112

81569BGARNISH NO.2, REAR COMBINATION LAMP, LH

main81566-F4120iNGX10..RUS201909-202112

main81569-F4010iNGX10,50,ZGX10,ZYX10201610-201909

81580DLAMP ASSY, REAR, RH

main81580-F4021iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81580-F4130iNGX10..LHD..6F..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD..K201909

HEADLAMP-PROJECTOR & *AHB & *AFLS

main81580-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909-202112

HEADLAMP-PROJECTOR

main81580-F4130iMAXH10,NGX10,50,ZYX11..K..EUR201909

HEADLAMP-PROJECTOR & *AHB

81584PACKING, REAR LAMP RH

main81582-F4010iNGX10,50,ZYX10..(E,G)..EUR201610-201909

main81582-F4021iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81582-F4120iNGX10..RUS201909-202112

81588DGARNISH, REAR LAMP, RH

main81588-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main81588-F4120iNGX10..RUS201909-202112

81590ALAMP ASSY, REAR, LH

main81590-F4021iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81590-F4130iNGX10..(E,G)..RUS201909-202112

HEADLAMP-PROJECTOR

main81590-F4130iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909

HEADLAMP-PROJECTOR & *AHB

main81590-F4130iNGX10..(E,G)..EUR;MAXH10,NGX50,ZGX10,ZYX1#..E,G201909

HEADLAMP-PROJECTOR & *AHB & *AFLS

81594BPACKING, REAR LAMP LH

main81582-F4010iNGX10,50,ZYX10..(E,G)..EUR201610-201909

main81582-F4021iNGX10,50,ZYX10..(E,G)..EUR201805-201909

REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP)

main81582-F4120iNGX10..RUS201909-202112

81598BGARNISH, REAR LAMP, LH

main81598-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main81598-F4120iNGX10..RUS201909-202112

81952ACOVER, REAR LAMP, RH

main81952-F4010iNGX10..RUS201909-202112

81962COVER, REAR LAMP, LH

main81962-F4010iNGX10..RUS201909-202112

9007502029

main90075-02029¥70

9015960621

main90159-60621¥60

9017605019

main90176-05019¥100

9017905102

main90179-05102¥90

9018906235

main90189-06235¥70

29 parts on this diagram · 3 diagrams in section
