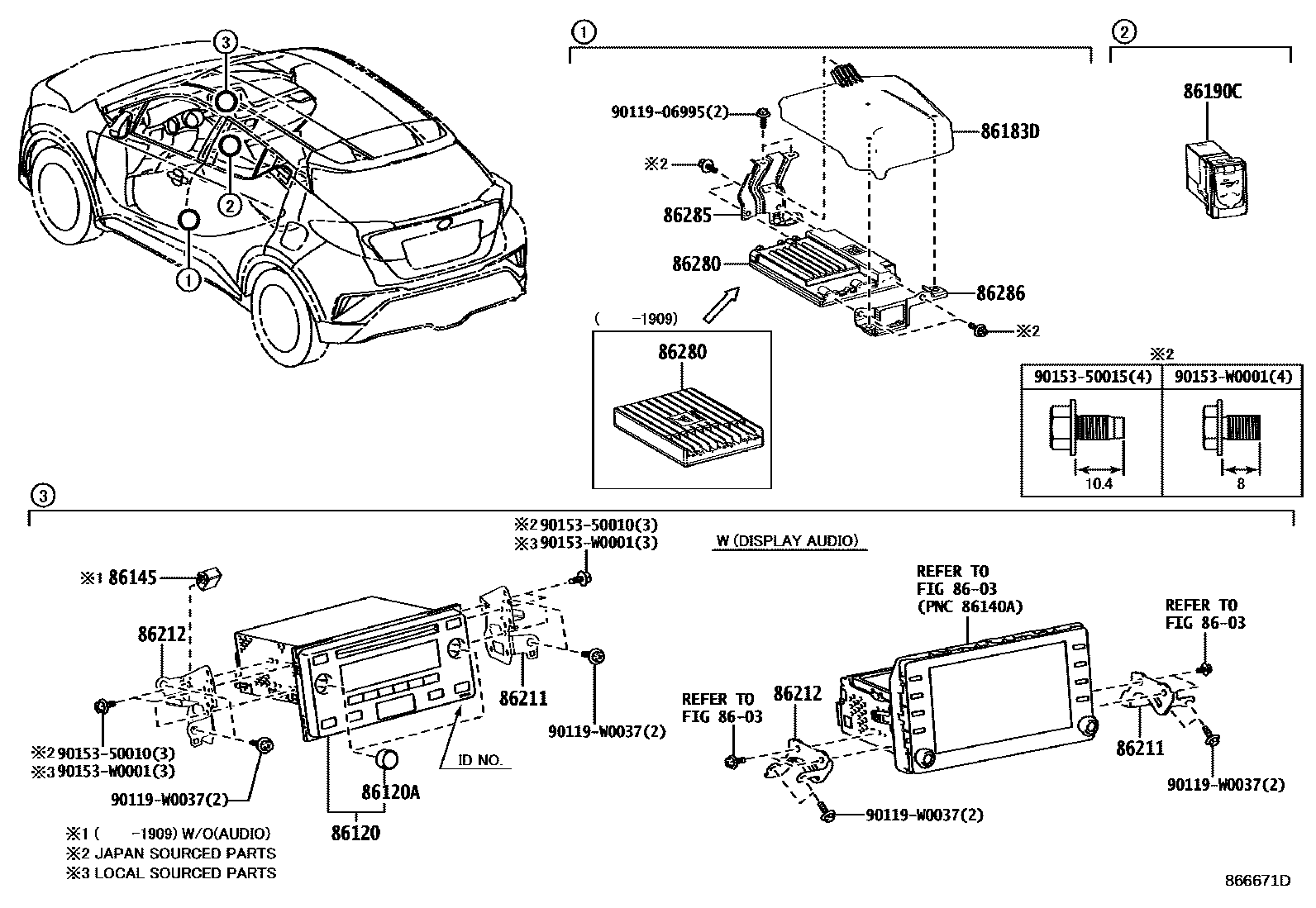

Toyota C-HR — RADIO RECEIVER & AMPLIFIER & CONDENSER
8603
86120RECEIVER ASSY, RADIO
FUJITSUTEN,ID=100635,ARGENTINA SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM & FM
sub86120-F4021
FUJITSUTEN,ID=100635,PERU SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM& FM
sub86120-F4021
FUJITSUTEN,ID=100635,CHILE SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM& FM
sub86120-F4021
FUJITSUTEN,ID=100635,SOUTH & CENTRAL AMERICA SPEC&AUDIO-CD & USB & *BT, FOR LATINAMERICA&ANTENNA-AM & FM
sub86120-F4021
FUJITSUTEN,ID=100635,HONG KONG, MACAU SPEC&AUDIO-RADIO LESS
sub86120-F4021
DENSO TEN,ID=100635,PERU SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM &FM
sub86120-F4022
DENSO TEN,ID=100635,CHILE SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM& FM
sub86120-F4022
DENSO TEN,ID=100635,SOUTH & CENTRAL AMERICA SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM & FM
sub86120-F4022
PANASONIC
86120AKNOB, RADIO RECEIVER SWITCH
SOUTH & CENTRAL AMERICA SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM &FM
CHILE SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM & FM
PERU SPEC&AUDIO-CD & USB & *BT, FOR LATIN AMERICA&ANTENNA-AM & FM
86145CONNECTOR, ANTENNA MALE
86183DCOVER, AUDIO AMPLIFIER
86190CADAPTER ASSY, STEREO JACK, NO.1
GUADELOUPE SPEC
MARTINIQUE SPEC
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-RADIO LESS & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX(WESTERN EUROPE))
AUDIO-RADIO LESS & 6SPEAKER&EMV & NAVIGATION SYSTEM-W(EXTENSION BOX(*VCS & WESTERNEUROPE))
AUDIO-RADIO LESS & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT
AUDIO-RADIO LESS & 2SPEAKER
AUDIO-RADIO LESS & 2SPEAKER&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX(WESTERN EUROPE))
AUDIO-RADIO LESS & 2SPEAKER&EMV & NAVIGATION SYSTEM-W(EXTENSION BOX(*VCS & WESTERNEUROPE))
AUDIO-RADIO LESS & 2SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL&EMV & NAVIGATION SYSTEM-WITH(EXTENSIONBOX(WESTERN EUROPE))
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL&EMV & NAVIGATION SYSTEM-W(EXTENSION BOX(*VCS & WESTERN EUROPE))
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL&EMV & NAVIGATION SYSTEM-WITHOUT
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX(WESTERN EUROPE))
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA&EMV & NAVIGATION SYSTEM-W(EXTENSIONBOX(*VCS & WESTERN EUROPE))
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA&EMV & NAVIGATION SYSTEM-WITHOUT
AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO
NEW CALEDONIA SPEC
REUNION SPEC
FRENCH GUIANA SPEC
TAIWAN SPEC&AUDIO-RADIO LESS
sub86190-F4041
AUDIO-RADIO LESS
sub86190-F4041
AUDIO-CD & USB & *BT, FOR LATIN AMERICA
sub86190-F4041
MAURITIUS, SEYCHELLES SPEC&AUDIO-*DA, FOR AFRICA
sub86190-F4041
MAURITIUS, SEYCHELLES SPEC&AUDIO-*DA, FOR AFRICA
86211BRACKET, RADIO, NO.1
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-RADIO LESS & 2SPEAKER
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO
TAIWAN SPEC
HONG KONG, MACAU SPEC
AUDIO-RADIO LESS
AUDIO-CD & USB & *BT, FOR LATIN AMERICA
MAURITIUS, SEYCHELLES SPEC
86212BRACKET, RADIO, NO.2
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-RADIO LESS & 2SPEAKER
TAIWAN SPEC
HONG KONG, MACAU SPEC
AUDIO-RADIO LESS
AUDIO-CD & USB & *BT, FOR LATIN AMERICA
MAURITIUS, SEYCHELLES SPEC
86280AMPLIFIER ASSY, STEREO COMPONENT
main86280-F4010
main86280-F4020
main86280-F4040
main86280-F4050
main86280-F4060
main86280-F4070
86285BRACKET, AMPLIFIER, NO.1
main86285-F4010
86286BRACKET, AMPLIFIER, NO.2
main86286-F4010
9011906995
90119W0037
9015350010
9015350015
90153W0001
16 parts on this diagram · 2 diagrams in section
