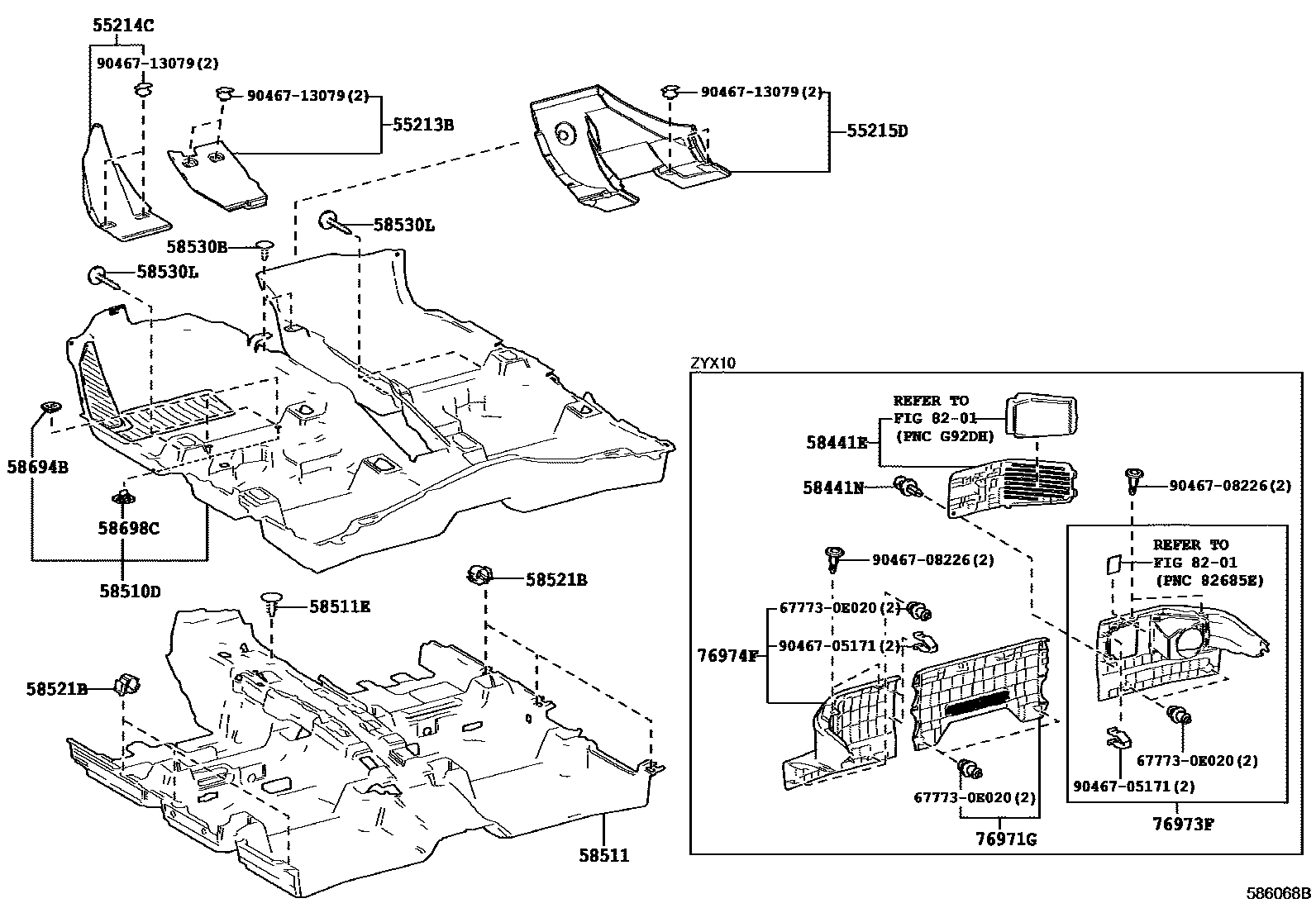

Toyota C-HR — MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR CARPET 0005 1FLOOR MAT 0006 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55213-F4010iNGX10..RUS201909-202112

main55213-F4010iNGX10,50,ZGX10,ZYX10..LHD201610-201909

main55213-F4020iMAXH10,NGX10,ZYX1#..RHD201909

main55213-F4020iNGX10,50,ZYX10..RHD201610-201909

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-F4010iNGX10,50,ZGX10,ZYX10..LHD201610-201909

main55214-F4010iNGX10..RUS201909-202112

main55214-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55214-F4020iMAXH10,NGX10,ZYX1#..RHD201909

main55214-F4020iNGX10,50,ZYX10..RHD201610-201909

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main55215-F4010iNGX10,50,ZGX10,ZYX10..LHD201610-201909

main55215-F4010iNGX10..RUS201909-202112

main55215-F4020iNGX10,50,ZYX10..RHD201610-201909

main55215-F4020iMAXH10,NGX10,ZYX1#..RHD201909

58441ECOVER, BATTERY SERVICE HOLE

main58441-F4010-C0iZYX10201610-201805

EU BLACK,TRIM2#

sub58441-F4010

main58441-F4010-C1iMAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#

sub58441-F4010

main58441-F4010-C1iMAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,4#,8#

sub58441-F4010

main58441-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub58441-F4010

main58441-F4010-C1iZYX10201805-201909

BLACK,TRIM2#

sub58441-F4010

58441NCLIP(FOR BATTERY SERVICE HOLE COVER)

main90467-06165-C3iMAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,4#,8#

sub90467-06165¥160

main90467-06165-C3iZYX10201610-201909

BLACK,TRIM2#

sub90467-06165¥160

main90467-06165-C3iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub90467-06165¥160

main90467-06165-C3iZYX10..RHD..G201909

BLACK,TRIM2#

sub90467-06165¥160

58510DCARPET ASSY, FLOOR, FRONT

main58510-F4010-C1iNGX10,ZGX10..LHD201610-201805

EU BLACK,TRIM2#

sub58510-F4010

main58510-F4010-C2iNGX10,ZGX10..LHD201805-201909

BLACK,TRIM2#

sub58510-F4010

main58510-F4010-C3iZGX10..K,N;NGX10..LHD..(K,N)..EUR201909-202201

BLACK,TRIM2#

sub58510-F4010

main58510-F4010-C3iZGX10..E,G;NGX10..LHD..(E,G)..EUR201909-202201

BLACK,TRIM2#,4#,8#

sub58510-F4010

main58510-F4010-C3iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub58510-F4010

main58510-F4010-C3iNGX10..(E,G)..RUS201909-202112

BLACK,TRIM2#

sub58510-F4010

main58510-F4020-C1iNGX10..RHD201610-201805

EU BLACK,TRIM2#

sub58510-F4020

main58510-F4020-C2iNGX10..RHD201805-201909

BLACK,TRIM2#

sub58510-F4020

main58510-F4020-C3iNGX10..RHD..(K,N)201909-202009

BLACK,TRIM2#

sub58510-F4020

main58510-F4020-C3iNGX10..RHD..(K,N)201909-202009

BLACK,TRIM2#,4#,8#

sub58510-F4020

main58510-F4030-C1iNGX50..LHD201610-201805

EU BLACK,TRIM2#

sub58510-F4030

main58510-F4030-C2iNGX50..LHD201805-201909

BLACK,TRIM2#

sub58510-F4030

main58510-F4030-C3iNGX50..E,G201909

BLACK,TRIM2#

sub58510-F4030

main58510-F4030-C3iNGX50..K,N201909

BLACK,TRIM2#,4#,8#

sub58510-F4030

main58510-F4040-C1iNGX50..RHD201610-201805

EU BLACK,TRIM2#

sub58510-F4040

main58510-F4040-C2iNGX50..RHD201805-201909

BLACK,TRIM2#

sub58510-F4040

main58510-F4050-C1iZYX10..LHD201610-201805

EU BLACK,TRIM2#

sub58510-F4050

main58510-F4050-C2iZYX10..LHD201805-201909

BLACK,TRIM2#

sub58510-F4050

main58510-F4050-C3iMAXH10,ZYX11..LHD..(K,N)201909-202201

BLACK,TRIM2#

sub58510-F4050

main58510-F4050-C3iMAXH10,ZYX11..LHD..(K,N)201909-202201

BLACK,TRIM2#,4#

sub58510-F4050

main58510-F4050-C3iMAXH10,ZYX11..LHD..(K,N)201909-202201

BLACK,TRIM2#,8#

sub58510-F4050

main58510-F4050-C3iZYX10..E201909

BLACK,TRIM2#,4#

sub58510-F4050

main58510-F4050-C3iZYX10..E201909

BLACK,TRIM2#,8#

sub58510-F4050

main58510-F4050-C3iZYX10..E201909

BLACK,TRIM2#

sub58510-F4050

main58510-F4060-C1iZYX10..RHD201610-201805

EU BLACK,TRIM2#

sub58510-F4060

main58510-F4060-C2iZYX10..RHD201805-201909

BLACK,TRIM2#

sub58510-F4060

main58510-F4060-C3iMAXH10,ZYX1#..RHD..(K,N)201909-202201

BLACK,TRIM2#,4#

sub58510-F4060

main58510-F4060-C3iMAXH10,ZYX1#..RHD..(K,N)201909-202201

BLACK,TRIM2#,8#

sub58510-F4060

main58510-F4060-C3iMAXH10,ZYX11..RHD..E201909-202201

BLACK,TRIM2#

sub58510-F4060

main58510-F4061-C3iMAXH10,ZYX11..RHD..E202201

BLACK,TRIM2#,8#

main58510-F4061-C3iMAXH10,ZYX1#..RHD..(K,N)202201

BLACK,TRIM2#

main58510-F4061-C3iMAXH10,ZYX1#..RHD..(K,N)202201

BLACK,TRIM2#,4#

main58510-F4090-C2iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#

sub58510-F4090

main58510-F4090-C2iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#,4#

sub58510-F4090

main58510-F4090-C2iNGX10,ZGX10..CVT..(K,N)202201

BLACK,TRIM2#,8#

sub58510-F4090

main58510-F4380-C0iMAXH10,ZYX11..LHD..G202201

BLACK,TRIM2#,8#

main58510-F4380-C0iMAXH10,ZYX11..LHD..(K,N)202201

BLACK,TRIM2#

main58510-F4380-C0iMAXH10,ZYX11..LHD..(K,N)202201

BLACK,TRIM2#,4#

58511MAT, FLOOR, FRONT

main58511-F4010iMAXH10,NGX10,ZYX1#..LHD..EUR201909

SUB COLD AREA SPEC

main58511-F4010iNGX10,ZGX10..RUS201610-201909

SUB COLD AREA SPEC

main58511-F4010iNGX10,ZYX10..LHD..EUR201610-201909

COLD AREA SPEC

main58511-F4010iNGX10..RUS201909-202112

main58511-F4010iZGX10201909

COLD AREA SPEC

main58511-F4020iNGX10,ZYX10..EUR201610-201909

MEXICO SPEC&WITHOUT(COLD AREA SPEC)

main58511-F4020iMAXH10,NGX10,ZYX1#..EUR201909

main58511-F4030iNGX50..LHD..EUR201610-201909

SUB COLD AREA SPEC

main58511-F4030iNGX50..RUS201909

main58511-F4030iNGX50..RUS201610-201909

COLD AREA SPEC

main58511-F4040iNGX50..EUR201610-201909

main58511-F4040iNGX50..EUR201909

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C0iNGX10,50,ZGX10,ZYX10201610-201702

BLACK

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C4iNGX10..RUS201909-202112

BLACK

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C4iNGX10,50,ZGX10,ZYX10201702-201909

BLACK

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C4iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

BLACK

sub90467-07042¥110

sub90467-06175¥220

58521BHOOK, FLOOR CARPET

main58521-47030iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥300201909

main58521-47030iNGX10..RUS¥300201909-202112

main58521-47030iNGX10,50,ZGX10,ZYX10¥300201610-201909

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-W0006-C2iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

sub90467-W0006¥130

main90467-W0006-C4iNGX50..E,G,K;NGX10..RHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909

BLACK,TRIM2#,4#

sub90467-W0006¥130

main90467-W0006-C4iNGX10,50,ZGX10,ZYX10201805-201909

BLACK,TRIM2#

sub90467-W0006¥130

main90467-W0006-C4iNGX10..N..RUS201909-202112

BLACK,TRIM2#

sub90467-W0006¥130

main90467-W0006-C4iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

sub90467-W0006¥130

main90467-W0006-C4iNGX10,ZGX10..LHD..CVT..(E,G,K)201909-202201

BLACK,TRIM2#,4#,8#

sub90467-W0006¥130

main90467-W0006-C4iMAXH10,ZYX1#..E201909

BLACK,TRIM2#,8#

sub90467-W0006¥130

main90467-W0006-C4iMAXH10,ZYX1#..E201909

BLACK,TRIM2#

sub90467-W0006¥130

main90467-W0006-C4iMAXH10,ZYX1#..E201909

BLACK,TRIM2#,4#,8#

sub90467-W0006¥130

main90467-W0006-C4iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#,8#

sub90467-W0006¥130

main90467-W0006-C4iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#,4#

sub90467-W0006¥130

main90467-W0006-C4iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#

sub90467-W0006¥130

58530LCLIP, FLOOR CARPET, CENTER

main64726-10020-C2iNGX10,50,ZGX10,ZYX10201610-201909

BLACK,TRIM2#

main64726-10020-C2iNGX10..N..RUS201909-202112

BLACK,TRIM2#

main64726-10020-C2iNGX10..N..RUS201909-202112

BLACK,TRIM2#,4#,8#

main64726-10020-C2iNGX10,ZGX10..LHD..CVT..(E,G,K)201909-202201

BLACK,TRIM2#,4#,8#

main64726-10020-C2iMAXH10,ZYX1#..E201909

BLACK,TRIM2#,4#

main64726-10020-C2iMAXH10,ZYX1#..E201909

BLACK,TRIM2#,8#

main64726-10020-C2iMAXH10,ZYX1#..E201909

BLACK,TRIM2#

main64726-10020-C2iMAXH10,ZYX1#..E201909

BLACK,TRIM2#,4#,8#

main64726-10020-C2iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#,8#

main64726-10020-C2iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#,4#

main64726-10020-C2iNGX10,ZGX10..CVT..G202201

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010iNGX10,50,ZGX10,ZYX10¥130201610-201909

main58694-78010iNGX10..RUS¥130201909-202112

main58694-78010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥130201909

58698CPLATE, MAT SET, LOWER

main58698-78010iNGX10,50,ZGX10,ZYX10¥230201610-201909

main58698-78010iNGX10..RUS¥230201909-202112

main58698-78010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥230201909

76971GCOVER, REAR UNDER

main76971-F4010-C0iZYX10201610-201805

EU BLACK,TRIM2#

main76971-F4010-C1iZYX10201805-201909

BLACK,TRIM2#

main76971-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

main76971-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#

main76971-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,4#,8#

main76971-F4050-C0iZYX11..K,N201909

BLACK,TRIM2#

main76971-F4050-C0iZYX11..K,N201909

BLACK,TRIM2#,4#

main76971-F4050-C0iZYX11..K,N201909

BLACK,TRIM2#,8#

76973FCOVER, REAR UNDER SIDE, RH

main76973-F4010-C0iZYX10201610-201703

EU BLACK,TRIM2#

main76973-F4011-C0iZYX10201703-201805

EU BLACK,TRIM2#

sub76973-F4011

main76973-F4011-C1iZYX10201805-201909

BLACK,TRIM2#

sub76973-F4011

main76973-F4011-C1iMAXH10..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,4#,8#

sub76973-F4011

main76973-F4011-C1iMAXH10..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,4#

sub76973-F4011

main76973-F4011-C1iMAXH10..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#

sub76973-F4011

main76973-F4011-C1iMAXH10..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,8#

sub76973-F4011

76974FCOVER, REAR UNDER SIDE, LH

main76974-F4010-C0iZYX10201610-201805

EU BLACK,TRIM2#

sub76974-F4010

main76974-F4010-C1iZYX10201805-201909

BLACK,TRIM2#

sub76974-F4010

main76974-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,8#

sub76974-F4010

main76974-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#

sub76974-F4010

main76974-F4010-C1iZYX10..RHD..G201909

BLACK,TRIM2#,4#,8#

sub76974-F4010

main76974-F4030-C0iZYX11..K,N201909

BLACK,TRIM2#

main76974-F4030-C0iZYX11..K,N201909

BLACK,TRIM2#,4#

main76974-F4030-C0iZYX11..K,N201909

BLACK,TRIM2#,8#

8201

677730E020

main67773-0E020¥100

9046705171

main90467-05171¥60

9046708226

main90467-08226¥100

9046713079

main90467-13079¥120

21 parts on this diagram · 6 diagrams in section
